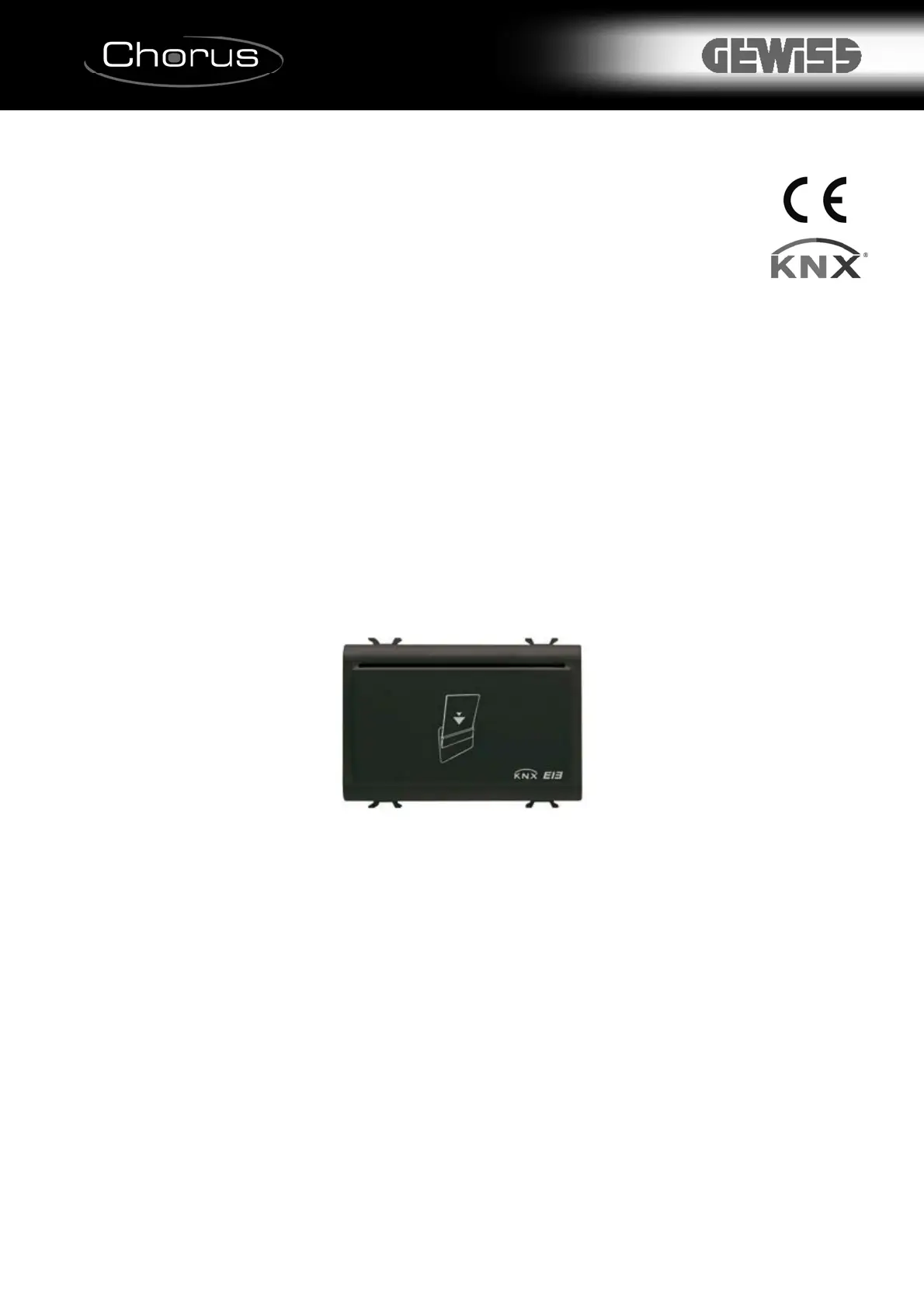

Technical Manual
KNX Transponder Holder
GW 10 682
GW 12 682
GW 14 682
- 2 -
Summary
1 Introduction ................................................................................................................................................ 3
2Application ................................................................................................................................................. 3
2.1Limits to the associations ................................................................................................................... 3
3 “Relay x Configuration” Menu .................................................................................................................... 4
3.1Parameters ........................................................................................................................................ 4
3.2Communication objects ..................................................................................................................... 5
4“Input x Configuration” Menu ..................................................................................................................... 6
4.1Parameters ........................................................................................................................................ 6
4.2Communication objects ..................................................................................................................... 7
5“General Configurations” Menu ................................................................................................................. 8
5.1Parameters ........................................................................................................................................ 8
5.2Communication objects ................................................................................................................... 10
- 3 -
1 Introduction
This manual describes the functions of the device named GW1x682 “Transponder holder unit” and how to
use the ETS configuration software to change the settings and configurations.
2 Application
The transponder holder GW1x682 is a KNX/EIB device that recognizes transponder cards and usually is
placed inside Hotel rooms in order to activate its Energy Line, its Light Line and for communicating to the
reception if the customer is in the room.
The device is equipped of three ON/OFF inputs free of potential, for instance in the controls of electro-locks
or other functions (window contact, pull-cord pushbutton, do not disturb switch).
Two 24Vac Relays are also available, for example as electro-lock and/or courtesy light command or general
purposes.
The transponder card is read placing the badge inside the holder unit.
In this manual is reported the device parametrization only, while about the installation of the transponder
holder unit is recommended to follow the instruction manual guide.
2.1 Limits to the associations
The maximum number of logical associations that the device is able to memorize is 32; this means that the
maximum number of logical connections between communication objects and group addresses is 32.
The maximum number of group addresses that the device is able to memorize is 35; this means that it is
possible to associate the communication objects to a maximum of 35 group addresses.
