Instructions for assembling chain link fences

A. STANDARD INSTALLATION

Along the intended fence line, the post holes, with a Ø of 15 to

23 cm, need to be dug to place the posts and supports. These

have to be 2 m to 3 m apart from each other. The holes must be at

least 50 cm deep to reach the non-freezing depth.

The posts must be installed in the holes by using the tension

wire holders to defi ne the correct height (see illustration). After

alignment with the tension wire, the posts have to be secured by

using concrete with suffi cient stability.

End and corner posts, which need to be placed after maximum

8 posts in a straight line, should be supported with supports of

the corresponding length.

Tension posts are fi xed using supports which must counteract the

tension of the fence and are installed :

• at the beginning of the fence

• at each corner of the fence

• at each change in direction of the fence

• after every maximum 25 m of straight fence

• at the end of the fence

Supports are used to secure the vertical position of fence posts

after posts have been installed and the fence has been stretched.

Supports are always installed to counteract the direction in which

the fence tension is oriented. For this reason, they are fi xed with

concrete and always screwed to the post at 1/2 of the height of

the post above the ground (measured from the top end of the

post) and form an ideal 45 degree angle (see illustration). The

length of supports is about the same as the post length. Supports

need to be installed:

• on the initial fence post (1 piece)

• on each fence corner post (2 pieces)

• on each fence post where the fence line changes direction

(2 pieces)

• on each post after every maximum 25 m of a straight line of the

fence

• on the fi nal fence post (1 piece)

After fi xing the posts and supports into concrete, the concrete

must be left to dry completely before installing the fence onto

the posts. The optimal period is about one week, however, this is

strongly depending on the weather situation.

Assembly procedure :

The fencing needs to be attached to horizontal tension wires.

These tension wires are stronger then the fencing and are fi xed

to every post. It is advised to place three horizontal rows along

the posts. The top wire needs to be placed into the tension wire

holders, the bottom wire about 5 to 10 cm above ground level

and the 3rd wire in the middle of the height of the fence. All three

tension wires need to be stretched by using tensioners.

To install the chain link fence, the entire roll of fence needs to

be unrolled alongside the previously installed posts and tension

wires. Attach the fence to the top vertical tension wire of the

initial post by using binding wire and a tension bar. The fence is

now stretched over the length (maximum 25m) in the direction of

the supported end fence post by stretching it with a tension bar.

When placed out like this, the chain link fence can be attached to

the middle and bottom horizontal tension wire by using binding

wire. The fi xation of the top tension wire is done by closing the

open fence knots. It is also possible to replace the binding wires

with special clamps to fi x the fence to the tension wire. Binding

wire has to be used to attach the fence to the posts.

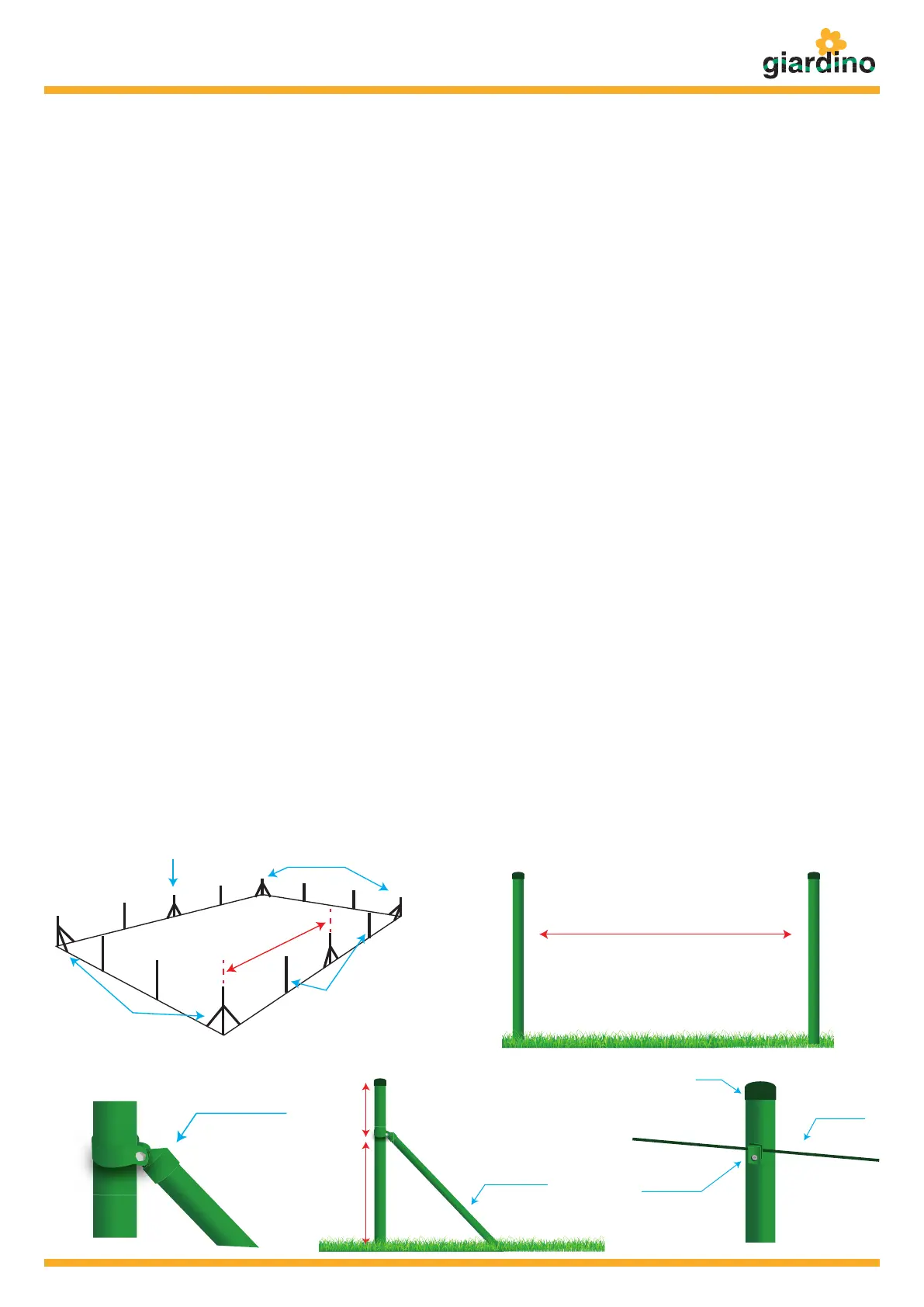

maximum distance

between posts 25 m

posts (corner)

stays

posts (support)

posts

distance between posts 2 - 3 m

stay caps

stays, placement

1/3

2/3

tension wire

cap

holder for tension

wire including screw
