GEARLOFT™ SHELF
Assembly Instructions
ÉTAGÈRE GEARLOFT™
Instructions d'assemblage
ESTANTE GEARLOFT™
Instrucciones de ensamblaje
In U.S.A. call: 1-866-342-4089
Aux États-Unis, composez le: 1866342-4089
En los EE.UU., llame al: 1-866-342-4089
W11740986A
In Canada call: 1-800-807-6777
Au Canada, composez le: 1800807-6777
En Canadá, llame al: 1-800-807-6777
www.gladiatorgarageworks.com
www.gladiatorgarageworks.ca
Models
GAWA45SFTG - Hammered Granite
GAWA45SFZW - Hammered White
Modelos
GAWA45SFTG - Granito Martillado
GAWA45SFZW - Blanco Martillado
Modèles
GAWA45SFTG - Ardoise Martelée
GAWA45SFZW - Blanc Martelé
2
INSTALLATION INSTRUCTIONS
GearLoft™ Shelf Use
Requirements
■Intended to be installed on Gladiator
®
Garageworks GearWall
®
panels or GearTrack
®
channels.
■Maximum weight limit is 100 lbs (45.5 kg).
Unpack the GearLoft™ Shelf Parts
Remove the shelf parts and fasteners, and dispose of/recycle all
packaging materials.
Assemble GearLoft™ Shelf
F1. 5/16" Allen-head bolt (4) F11. Wing nut (4)
F2. 5/16" Flange nut (4)
Gather the required tools before starting assembly.
Tools Needed:
■1/2" Wrench
Parts Supplied:
■Allen wrench
IMPORTANT: Determine whether you will be mounting the shelf
to the wall with the braces above or below the shelf.
Mounting Braces Above Shelf

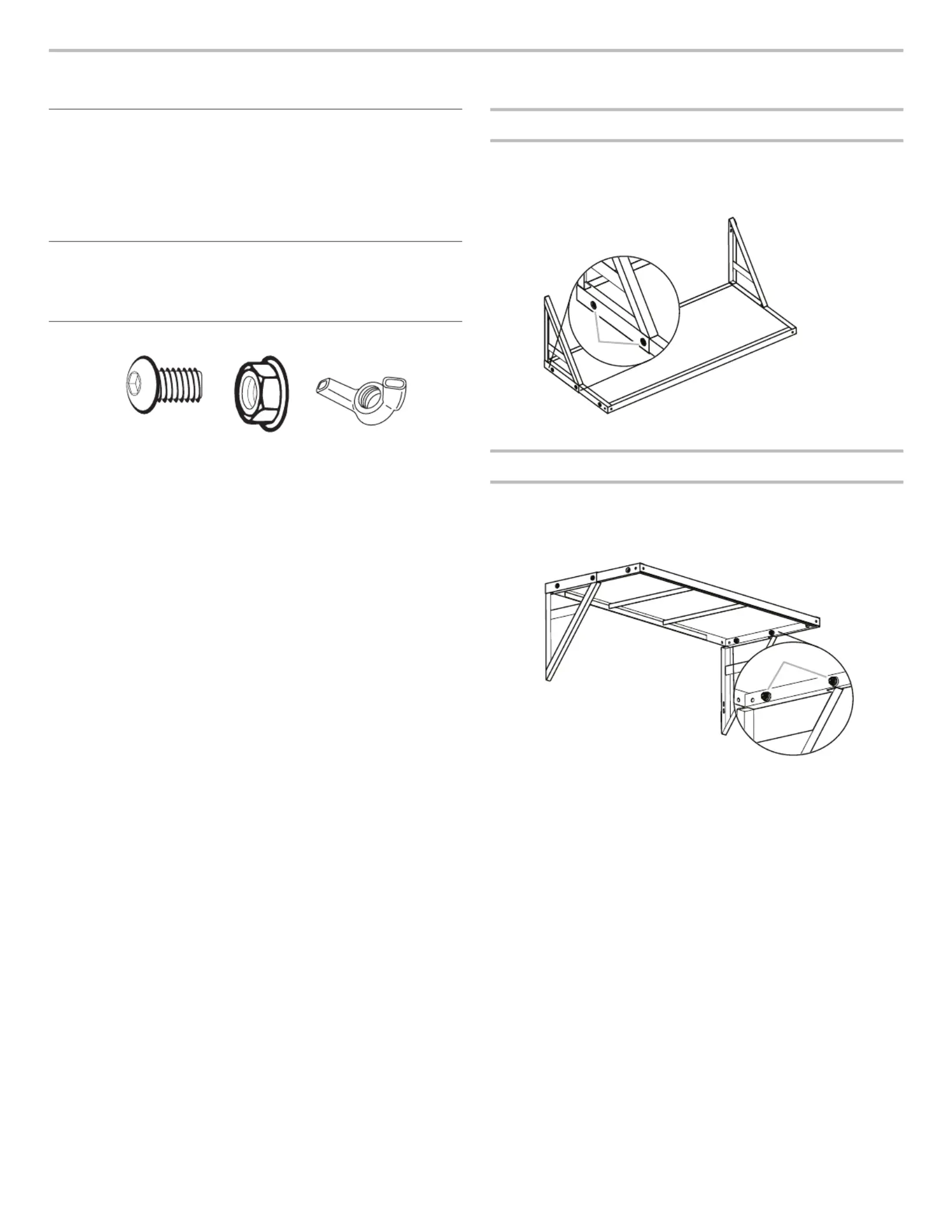

1. With the braces pointing upward, align the braces with the
center and back holes on each side of the shelf.
2. Using Allen-head bolts (F1) and ange nuts (F2), attach a
brace to each side of the shelf. Fully tighten the bolts.
A. Brace attached to shelf
Mounting Braces Below Shelf
1. With the braces pointing downward, align the braces with the
center and back holes on each side of the shelf.
2. Using Allen-head bolts (F1) and ange nuts (F2), attach a
brace to each side of the shelf. Fully tighten the bolts.
A. Brace attached to shelf
F1 F2 F11
A
A
3
Install the GearLoft™ Shelf to the
Wall
IMPORTANT:
■Be sure the Gladiator
®
GearWall
®
panels or GearTrack
®
channels are installed with mounting screws in every slot
and at every stud location with a maximum of 24" (60.96 cm)
horizontally between screws.
■If Gladiator
®
GearTrack
®
channels will be used to mount the
GearLoft™ shelf, they must be installed 6" (15.24 cm) apart.
1. Determine shelf mounting location on GearWall
®
panels or
GearTrack
®
channels.

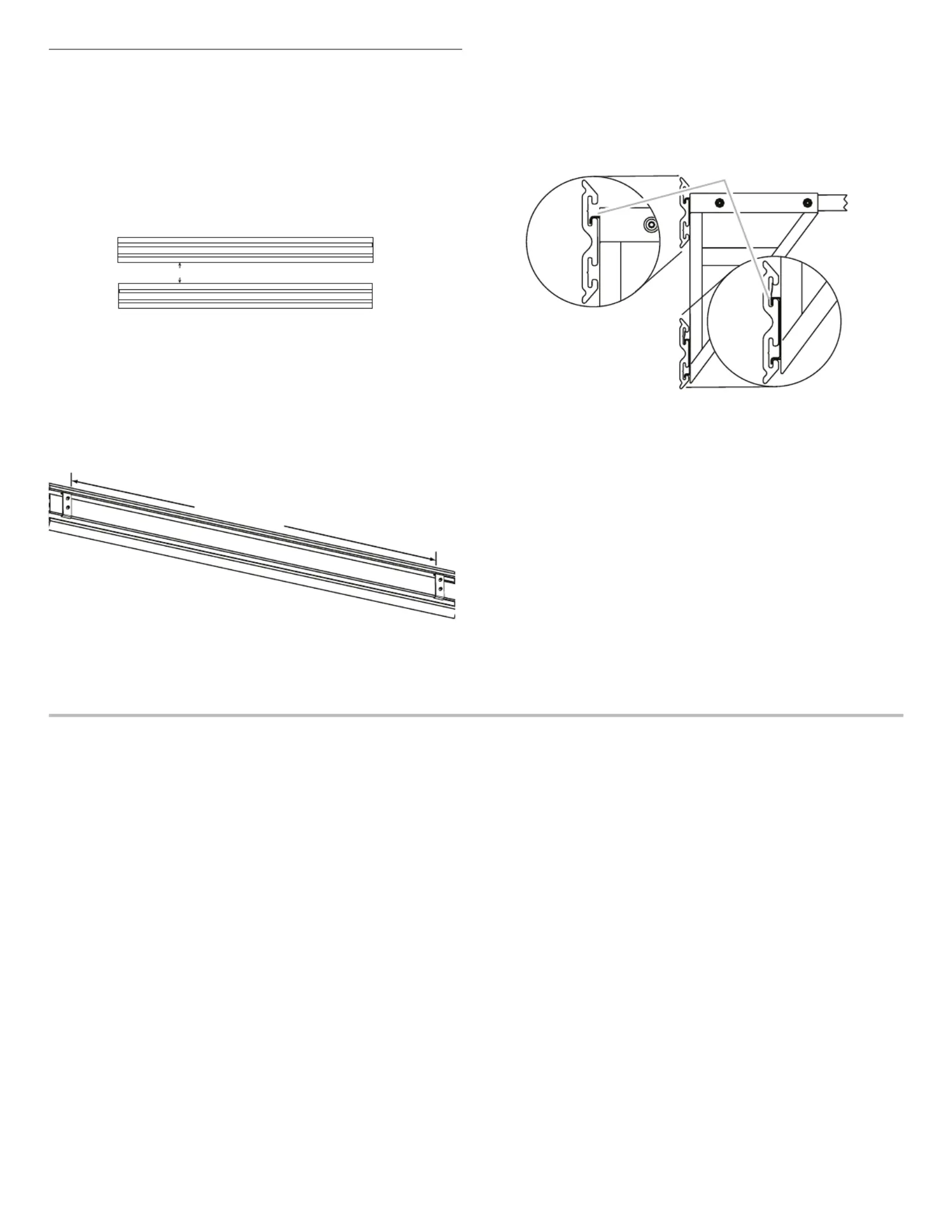

2. Insert the brackets into the GearTrack
®
channel so that
bracket rim extension ts behind the upper channel groove.
3. Slide the brackets in the channel so they are
spaced 43" (109.22 cm) apart, as shown.
NOTE: Install brackets into the upper channel for installations
with the braces above the shelf, or into the lower channel for
installations with the braces below the shelf.
4. Engage the bracket that is welded to the back of the shelf
into the wall slot by lifting up, pushing toward the wall
and lowering the bracket rim into the slot as shown.
5. Make sure the screws on the brackets go through
the holes in the braces. Fasten the braces to
the brackets using the wing nuts (F11).
NOTE: You may need to adjust the brackets to the right or left
if the screws do not align with the holes.
6. Inspect the shelf from the side to ensure the bracket rims are
fully engaged in the slots as shown.
A. Mounting brackets fully engaged in slots
7. Completely tighten the wing nuts (F11).
6" (15.24 cm)
43" (109.22 cm)
A
WARRANTY
For warranty information:
In the U.S.A. call or visit our website at1-866-342-4089
www.gladiatorgarageworks.com
In Canada call or visit our website at1-800-807-6777
www.gladiatorgarageworks.ca
