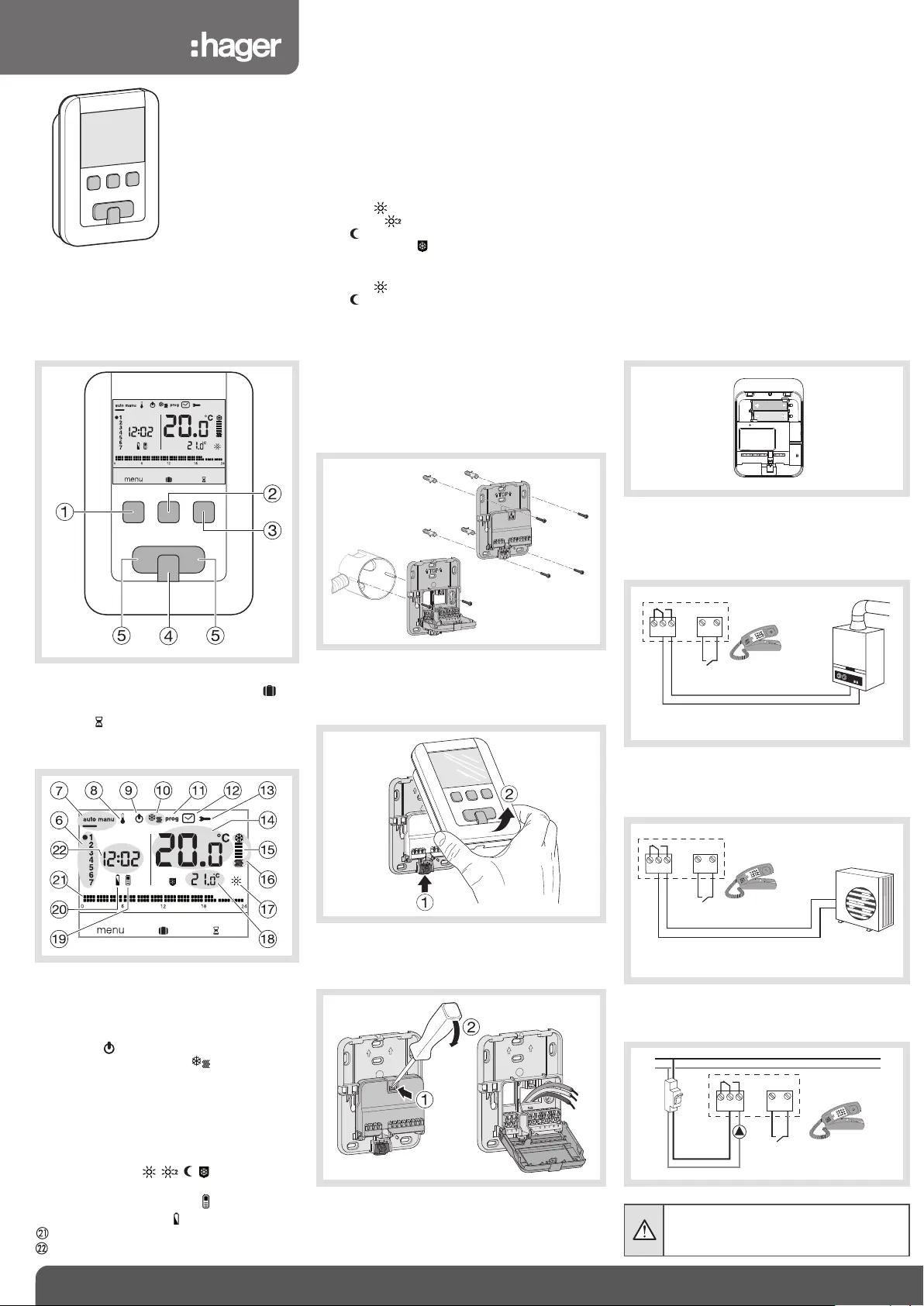

1

6LE001524A

EK520

Product description

aContext key for menu access

Context key for mode access holidays

Context key to access the temporary

override

dConfirmation key OK

eAdjustment keys +and -

fIndicator for days of the week

gAutomatic mode/manual mode

(thermostat without program)

hTemperature set-points adjustment

iStandby

jHeating/Air-con selector

kProgramming/program selection

lATime and date adjustment

mAdjustment of settings

Ambient temperature

oHeating or air conditioning indicator

pCurrent mode (heating or air conditioning)

qCurrent setting (

,,,

)

rTemperature of current setting

sTelephonic remote-control

tBattery use indicator

Profile of today's program

Current time

o

k

–

+

§

Programmable ambient

thermostat, 2 wire, weekly, battery

powered

User instructions

This programmable ambient thermostat has been designed to bring you comfort and energy economy.

It allows you to program and regulate your heating system at 4 temperature levels:

- Comfort : this is the temperature you desire during the hours you are present.

- Comfort 2 : 2nd temperature level that you desire during the time you are present.

- Eco : this is the temperature you desire during short absences or at night.

- Frost protection : this is the guaranteed minimum temperature during your prolonged absences.

It protects your accommodation against the dangers of frost.

It also enables you to program and regulate your air conditioning at 2 temperature levels:

- Comfort : this is the temperature you desire during the hours you are present.

- Eco : this is the temperature you desire during short absences or at night.

ok

–

+

Electrical installation and connections

To guarantee its ambient temperature regulation

function, the thermostat should be installed at least

1.3 m above the ground, on an interior wall and

away from direct sunlight or any heat source such

as a television, lamp, radiator, draft, chimney etc. Fix

the thermostat onto the flush-mounted casing or in

the slot without a casing intended for this purpose.

For optimum quality temperature regulation, seal

the flush-mounted casing or the electrical duct.

1. Separate the product from the wall-mounted

base, by pushing on the button located under

the base.

2. Open the flap with the help of a screwdriver and

attach the wall-mounted base using the screws.

3. Next, pass the electrical cables into the holes

intended for this purpose.

4. Connect the product according to the wiring dia-

gram opposite.

5. Reclose the flap

Installation must be carried out by

professional in accordance with the

standards in force.

T

O

P

–

+

o

k

T

O

P

T

O

P

telephonic remote-control

(ref. 61123, 61124)

N

L

1 2 3

6 2 7

6 A

123627

t

elephonic remote-control

(

ref. 61123, 61124)

6 2 71 2 3

input

from remote ambient thermostat

Connection of the thermostat to a thermostat

input on the boiler

Connection of the thermostat to the thermostat

input of a reversible or irreversible heat pump

(HP)

telephonic remote-control

(ref. 61123, 61124)

input

from remote ambient thermostat

1 2 36 2 7

Connection of a heating or air conditioning

circulator

6. Insert the batteries into the thermostat.

7. Clip the front face onto the wall-mounted base.

Reset
