Seite 1/24

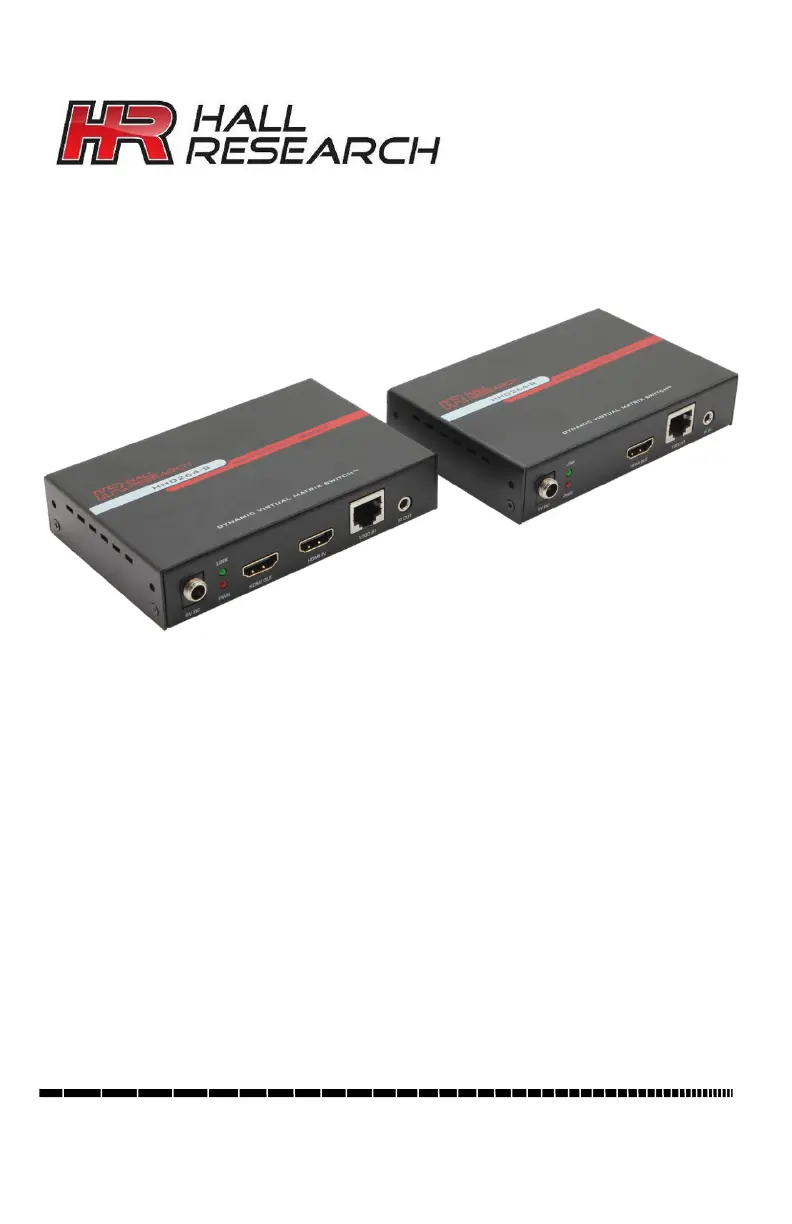

User’s Manual
HHD264
HDMI Distribution and Switching over LAN
with RS-232 & IR Extension
Dynamic Virtual Matrix™
Distribute up to 64 individual video to HDMI sources 250 displays or more
Order toll- - - free in the U.S. 800 959 6439
FREE technical support, Call 714 641 6607- - or fax 714- - 641 6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E mail: info@hallresearch.com-
CUSTOMER
SUPPORT
INFORMATION
UMA1249 Rev 2.1
HHD264
2
© Copyright 2017 Hall Research, Inc.
Table of Contents
1.0 Introduction ................................................................................. 4
1.1 General ............................................................................................ 4
1.2 Features .......................................................................................... 5
2.0 Package Contents ........................................................................ 5
3.0 Installation ................................................................................... 5
3.1 Configuration ................................................................................. 6
Hardware setup .................................................................................................. 7
3.1.2 Setting the IP address ............................................................................... 8
4.0 Configuration & Operation ...................................................... 10
4.1 Sender’s Front Panel.................................................................... 10
4.2 Sender’s Rear Panel ..................................................................... 10
4.3 Receiver’s Front and Rear Panels ............................................... 12
5.0 OSD Menu .................................................................................... 12
6.0 Group ID Setup for TX and RX ................................................. 13
6.1. Use DIP Switch On PowerUp – Group ID ................................................. 13
7.0 RS232 ........................................................................................... 14
8.0 WebGUI ....................................................................................... 14
8.1 Finding the HHD264 IP addresses on the LAN ........................................... 14
8.2 WebGUI Explained ..................................................................................... 15
9.0 Encoder and Scaler Settings .................................................... 17
9.1 Encoder and Scaler Settings WebGUI and PC GUI- .................. 18
10.0 Telnet Commands – Transmitter and Receiver ................ 19
11.0 EDID ........................................................................................... 21
12.0 Power over Ethernet (PoE) ................................................... 21
13.0 Firmware Upgrade ................................................................. 22
14.0 Recalling Factory Defaults .................................................... 22
15.0 Troubleshooting ..................................................................... 22
15.1 Getting a Picture on the Output ................................................ 22
15.2 Contacting Hall Research .......................................................... 23
16.0 Specifications ........................................................................... 23
Dynamic Virtual Matrix™
© Copyright 2017 Hall Research, Inc.
3
TRADEMARKS USED IN THIS MANUAL
Hall Research and its logo are trademarks of Hall Research. Any other
trademarks mentioned in this manual are acknowledged as the property of the
trademark owners.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication. It
has been designed to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart B of Part 15 of FCC rules, which
are intended to provide reasonable protection against such interference when
the equipment is operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference, in which case the
user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
