Seite 1/2

3.00

2.00

1.63

2.81

3.00

2.00

1.63

2.81

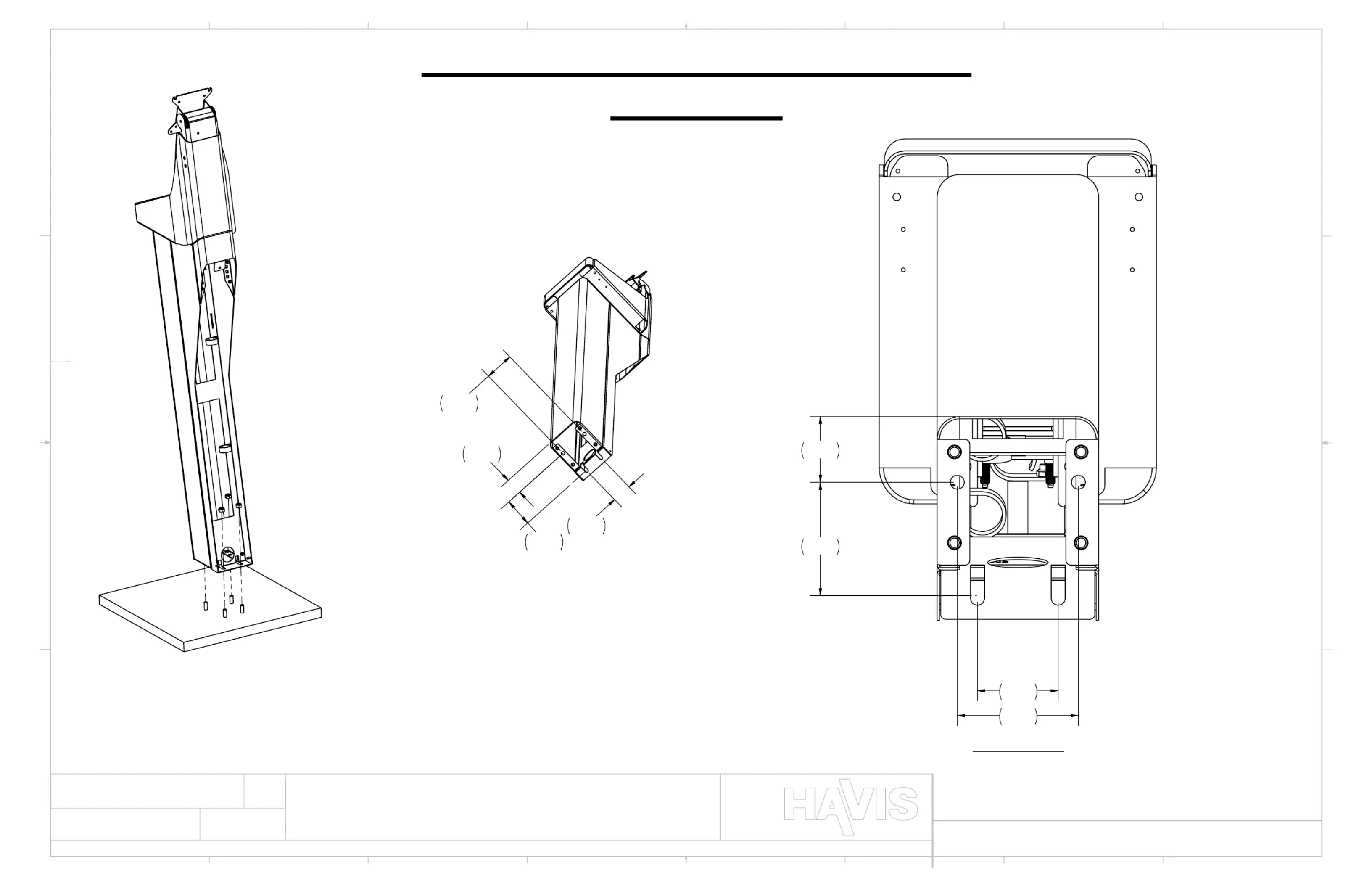

BOTTOM VIEW

ASSEMBLY STEPS:

1. ATTACH SC-1000-PB TO 4X FLOOR ANCHOR STUDS. M8 OR 5/16" STUD

SIZE RECOMMENDED. MOUNTING HARDWARE IS NOT INCLUDED.

INSTALLATION INSTRUCTIONS

(SHEET 1)

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 1 OF 2

CUSTOMER INSTRUCTIONS

7/10/2023

S. YANG

SC-1000-PB

BOLT DOWN

PEDESTAL MOUNTED,

SELF CHECK-OUT,

2X SET SCREWS

DISPLAY BRACKET

4X M4 X 10MM

PHILLIPS SCREWS

LOOSEN 4X SCREWS TO

ADJUST PRINTER BRACKET

DETAIL B

ASSEMBLY STEPS:

2. LOOSEN 2X SET SCREWS.

3. HOLD DISPLAY ATTACHMENT BRACKET AT DESIRED HEIGHT.

4. TIGHTEN 2X SET SCREWS.

5. ATTACH DISPLAY WITH 4X M4 X 10MM LONG PHILLIPS SCREWS.

6. PLACE PRINTER INTO SC-1000-CF UNIT. 4X SCREWS CAN BE LOOSENED

TO ADJUST PRINTER BRACKET (SEE DETAIL B).

(

OPTIONAL

) DUAL LOCK (2 STRIPS INCLUDED) CAN BE USED UNDER

THE PRINTER TO HOLD IT IN PLACE IF DESIRED.

INSTALLATION INSTRUCTIONS

SHEET 2

(SOME PARTS HIDDEN FOR CLARITY)

TOOLS LIST:

1. 3MM HEX WRENCH OR BIT WITH DRIVER

2. #1 PHILLIPS SCREW DRIVER

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 2 OF 2

CUSTOMER INSTRUCTIONS

3/27/2023

S. YANG

SC-1000-CF

FIXED BASE

SELF CHECK-OUT,COUNTER TOP,
