4X 3/8"-16 FLANGE NUT (PROVIDED) THREADS ONTO BOLT

FROM INSIDE OF PEDESTAL (NOT AS SHOWN)

"LOW" POSITION:

OPENING TOWARD

THE BOTTOM

1-1/2" TEE

4X 3/8"-16 X 1-1/8"

HEX BOLT (PROVIDED)

4X 1/4"-20 FLAT HEAD

TAMPER RESISTANT SCREW

(PROVIDED)

6

1

4

"

159mm

9"

226mm

10"

254mm

10"

254mm

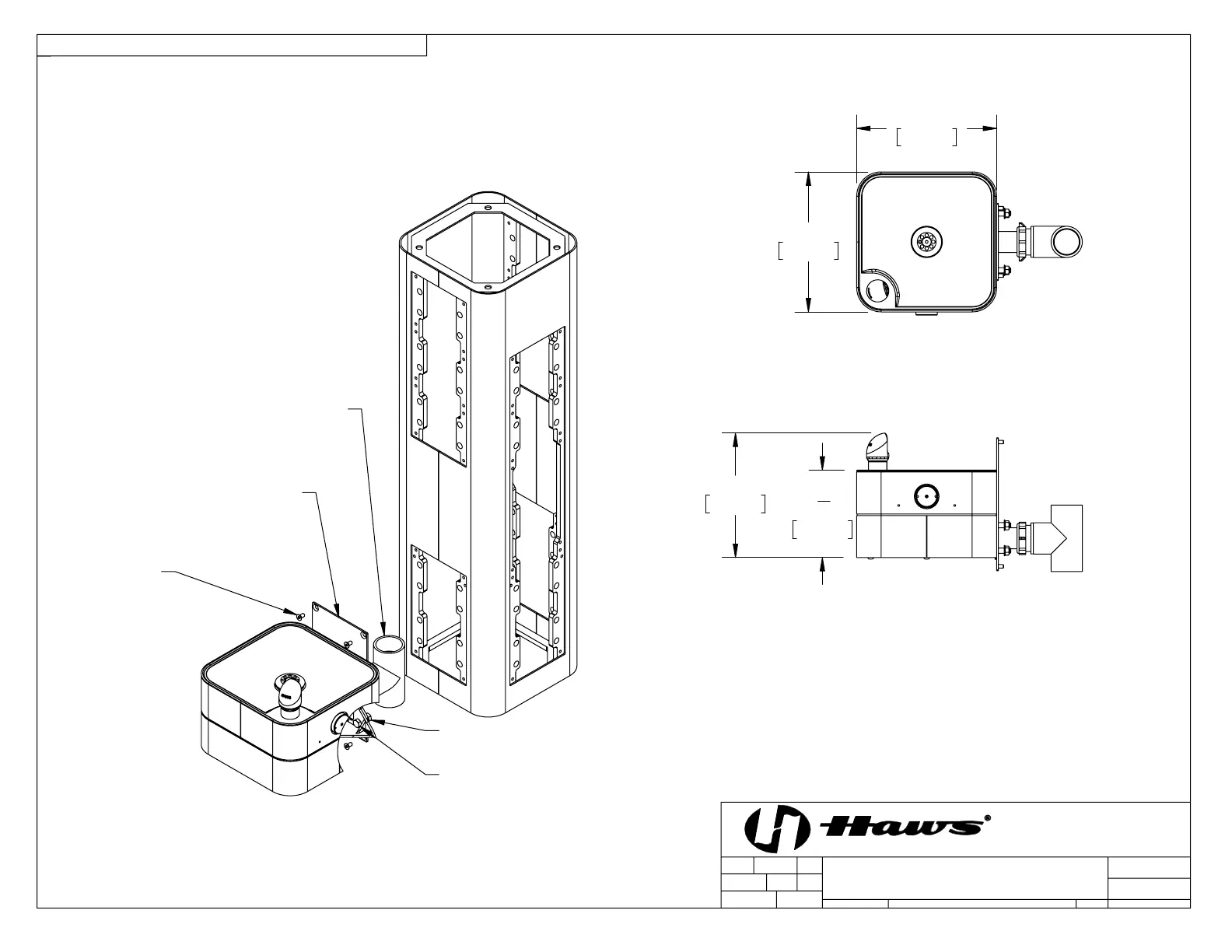

NOTE: STANDARD CONFIGURATION FOR MODEL 3670 ON A PEDESTAL IS SHOWN. IT IS

RECOMMENDED THAT THE ASSEMBLY IS PLACED AT THE LOWEST OPENING ON THE

PEDESTAL. THE MOUNTING PLATE CAN BE ROTATED SO THE DOG BOWL CAN BE IN A

"HIGH" OR "LOW" POSITION. IT IS RECOMMENDED TO USE THE "LOW" POSITION AS

SHOWN.

NOTES

1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE ADHERED TO.

FOR INSTALLATION HEIGHTS OTHER THAN SHOWN, DIMENSIONS MARKED (*) MUST BE

ADJUSTED ACCORDINGLY. INSTALL A TRAP IN THE WASTE LINE AND A SCREWDRIVER STOP

IN THE SUPPLY LINE IF REQUIRED.

2. IF NECESSARY FOR INSTALLATION, BOWL CAN BE REMOVED BY REMOVING THE SCREW IN

THE CENTER OF THE BOWL.

PAGE 1 OF 2

PAGE 1 OF 2

© 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT

IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

APPROVED:

DRAWN:

PART NUMBER

SCALE:

REVISION

MH

05/16/17

4

MODEL 3670 PET BOWL

ACCESSORY

1:8

IR

07/01/20

DRAWING TYPE:

SIZE: A

5226

BY:

DHP

INSTALLATION

DATE:

DATE:

REV. ECN:

5543

CHK'D.:

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

TM

ECN:

SHEET 1 OF 2

0510000703.D
