LOWER

BOWL

SUPPORT

COVER

SCREW (4X)

GASKET

BUBBLER

ELBOW

SCREW (3X)

BOWL

DISCONNECTING TUBING

FIRST, PRESS COLLET IN & HOLD

THEN, PULL TUBING OUT

3/4"

19mm

(APPROX.)

CONNECTING TUBING

PUSH TUBING INTO ELBOW

SEALING

O-RING

REPLACEMENT INSTRUCTIONS:

1.

REQUIRED TOOLS:

PHILLIPS SCREWDRIVER (OR 5/16 NUT DRIVER), 1/4" HEX BIT DRIVER

2.SHUT OFF ELECTRICAL POWER TO OUTLET BEFORE SERVICING. REMOVE THE COOLER SKIRT. SHUT

OFF THE WATER STOP VALVE.

NOTE:

SEE WATER COOLER O&M FOR FURTHER DETAILS.

3.REMOVE THE LOWER BOWL SUPPORT COVER (SEE DIAGRAM TO RIGHT).

4.REMOVE THE BUBBLER SCREWS FROM THE UNDERSIDE OF THE BOWL (TORX BIT IS SUPPLIED).

NOTE:

DISCONNECTING THE TUBING FROM THE ELBOW (SEE DIAGRAM BELOW) BENEATH THE

BUBBLER MAY HELP TO ACCESS THE SCREWS.

5.PRESS THE ELBOW BENEATH THE BUBBLER UP AGAINST THE BOWL TO DEPRESS THE QUICK

CONNECT COLLET, THEN PULL THE BUBBLER UP AND OFF.

6.MAKING SURE THAT THE BUBBLER GASKET IS IN PLACE, BOLT THE NEW BUBBLER INTO PLACE

WITH SUPPLIED REPLACEMENT SCREWS. RECONNECT THE PLUMBING. THE BUBBLER STEM

(AND TUBING, IF DISCONNECTED IN STEP 3) SHOULD ENGAGE INTO THE ELBOW ABOUT 3/4" [19mm].

7.REASSEMBLE THE COOLER, REACTIVATING WATER BEFORE INSTALLING THE SKIRT.

8.TURN ELECTRICAL POWER TO THE OUTLET BACK ON.

9.RUN WATER THROUGH THE NEW BUBBLER AND CHECK THE COOLER FOR LEAKS.

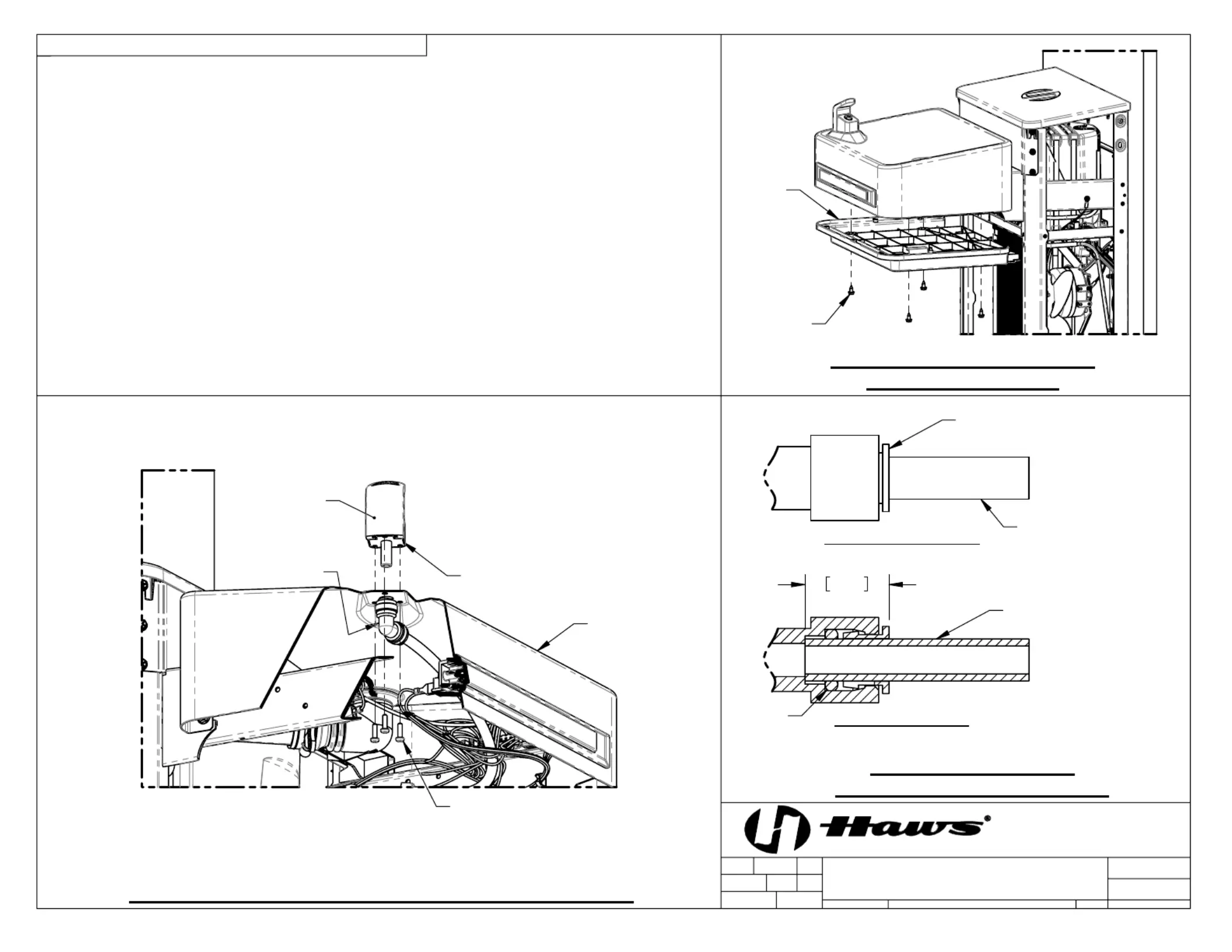

DISCONNECTING &

RE-CONNECTING TUBING

BUBBLER REMOVAL/INSTALLATION CUTAWAY

LOWER BOWL SUPPORT

COVER REMOVAL

© 2019 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT

IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

APPROVED:

DRAWN:

PART NUMBER

SCALE:

REVISION

JL

09/06/18

1

1:8

BM

06/27/19

DRAWING TYPE:

SIZE: A

5357

BY:

DHP

INSTALLATION

DATE:

DATE:

REV. ECN:

5357

CHK'D.:

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

JL

ECN:

SHEET 1 OF 1

0510000863

5715/5716 -

REPLACMENT 12XX BUBBLER HEAD
