© 2018 Hoffman Enclosures Inc. 87567811PH 763 422 2211 nVent.com/HOFFMAN
Rev. C
P/N 23346001
4. Insert mounting foot studs
into drilled holes and turn
enclosure upright.
5. Press sealing washer onto
mounting foot stud with
the tapered cone towards
washer.
6. Thread nut onto mounting
foot stud and tighten to
200 in−lbs. Note: If holes
are pre−punched, omit
steps 1−3.
Hole Side
S sealing Wa
her Detail

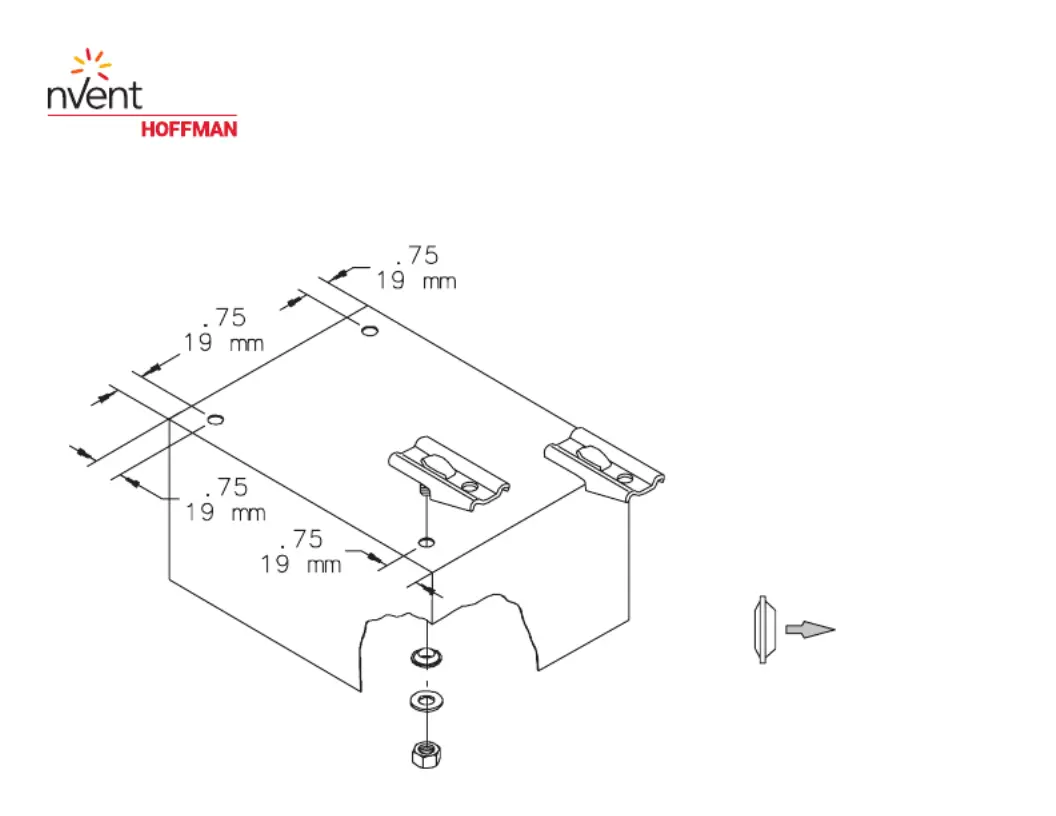

1. Locate mounting foot stud location using the dimensions given. (when holes are not provided)
2. Use center punch to mark hole centers, and drill four .5 inch (13 mm) diameter holes.
3. Deburr holes.
Mounting Feet


Produktspezifikationen

Marke: Hoffman
Kategorie: Nicht kategorisiert
Modell: C8C12
Breite: 305 mm
Tiefe: 203 mm
Produktfarbe: Weiß
Höhe: 180 mm
Material: Stahl
Zertifizierung: UL 508A Listed; Type 12, 13; File No. E61997\ncUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997
Gehäusematerial: Stahl
