OPERATION AND SAFETY INSTRUCTIONS
Mini VCool System - NEMA Type12
MODEL: VC-0416-012H
IMPORTANT
READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT.
INTRODUCTION
A Mini VCool System is designed to use filtered compressed air to cool industrial control cabinets without
the use of any refrigerants. Hot air in the cabinet is vented to the surroundings through a built in relief
valve.
COMPRESSED AIR SUPPLY
The compressed air supply must be filtered (5 micron maximum) to remove water and dirt. If oil is
present in the compressed air supply, remove the oil using a 0.01 micron (maximum) air filter. Change
filter elements as needed.

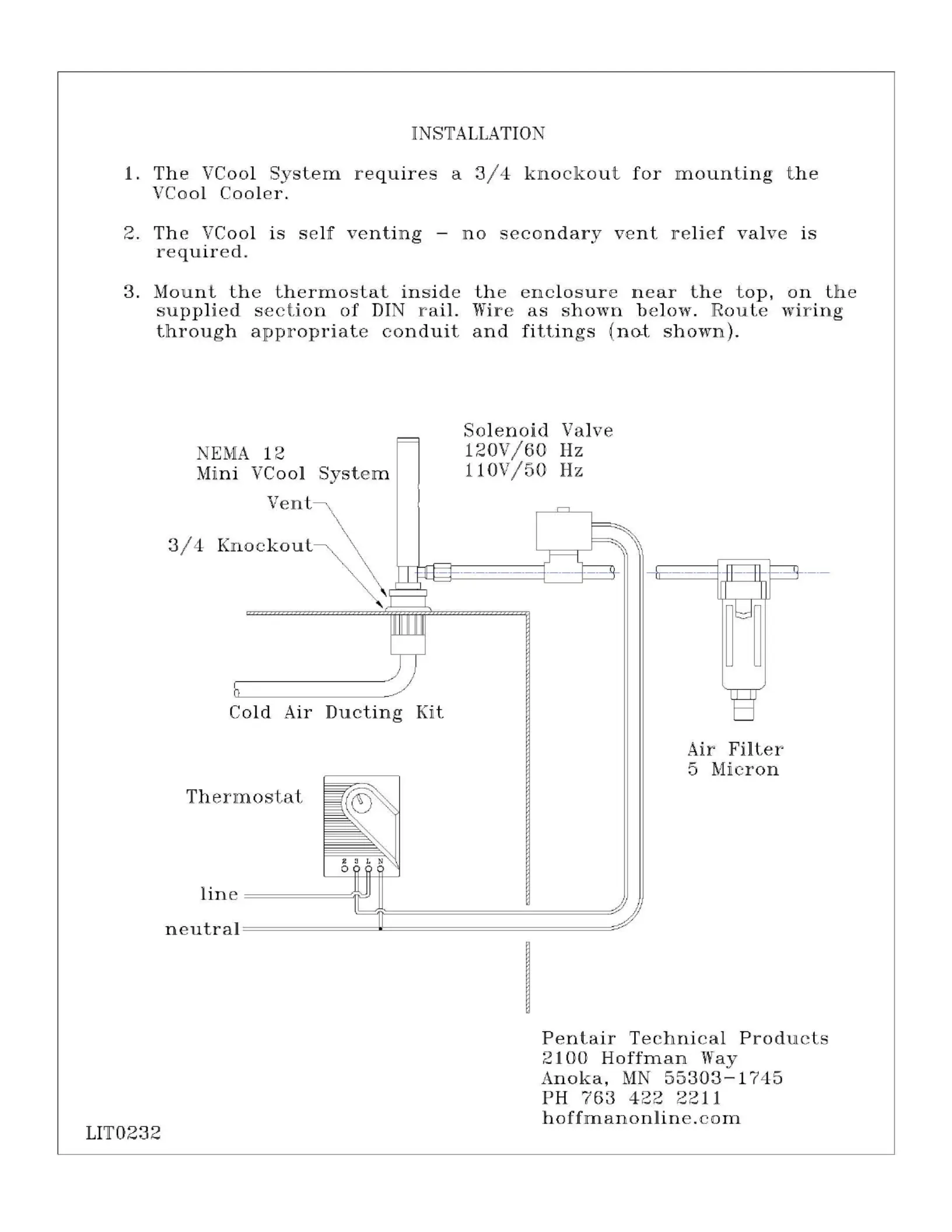

INSTALLATION AND OPERATION
For best cooling results, a Mini VCool should be installed in a vertical position at the top of the cabinet.
Vents in cabinets must be covered and sealed to ensure cooling eciency.
This model is for use on a flat horizontal or vertical surface of a NEMA Type 12 enclosure.
MAINTENANCE
Mini VCool Systems have no moving parts and can be disassembled for cleaning.
WARRANTY
Pentair Technical Products Hoffman brand products will be replaced or repaired if found to be defective
due to manufacture within one year from the date of invoice. Pentair Technical Products makes no
specific warranty of merchantability or warrant of fitness for a particular purpose
WARNING
COMPRESSED AIR COULD CAUSE DEATH, BLINDNESS OR INJURY.
1. Do not operate a VCool at compressed air pressure above 150 PSIG (10.3 Bar).
2. Do not operate a VCool at line temperatures above 110°F (43° C).
3. Avoid direct contact with compressed air.
4. Do not direct compressed air at any person.
5. When using compressed air, wear safety glasses with side shields.
NOTE
THERE IS NO NEED TO LIMIT COMPRESSED AIR PRESSURE TO A MAXIMUM OF 30 PSIG (2
BAR). IT IS NOT POSSIBLE TO BLOCK THE FLOW OF AIR FROM A VCool TO REGISTER 30
PSIG (2 BAR) ON A TEST GAUGE.
LIT0232 87922535
