Warning

Model No.: FCJJ-44

Micro-Fuel cell Science Kit

ASSEMBLY GUIDE

To avoid the risk of property damage, serious injury or

death:

1. Read carefully and fully understand the instructions

before assembling this kit.

2. Keep small children and animals away, because this

kit contains small parts that could be swallowed.

3. This kit is intended only for use by persons 14 years old

and up, and only under the supervision of adults who

have read and understood the instructions in this user

manual.

4. When assembling this kit, tools may be used. Extra

care should be taken to avoid personal injury.

5. Some parts are small and fragile: please be careful

when handling and connecting parts to avoid breakage.

Handle all parts and components with care.

6. Do not attempt to use any part, item, or component

provided in this kit for any other purpose than what is

instructed in this manual. Do not attempt to disassemble

any part, item or component in this kit.

7. Remove the HYDROSTIK PRO from the pressure

regulator immediately after use.

Micro-Fuel Cell Science kit

Preparing the micro-fuel cell module

a.Insert the PEM fuel cell (a) into its slot on the base (g).

Make sure the fuel cell fits well in its base.

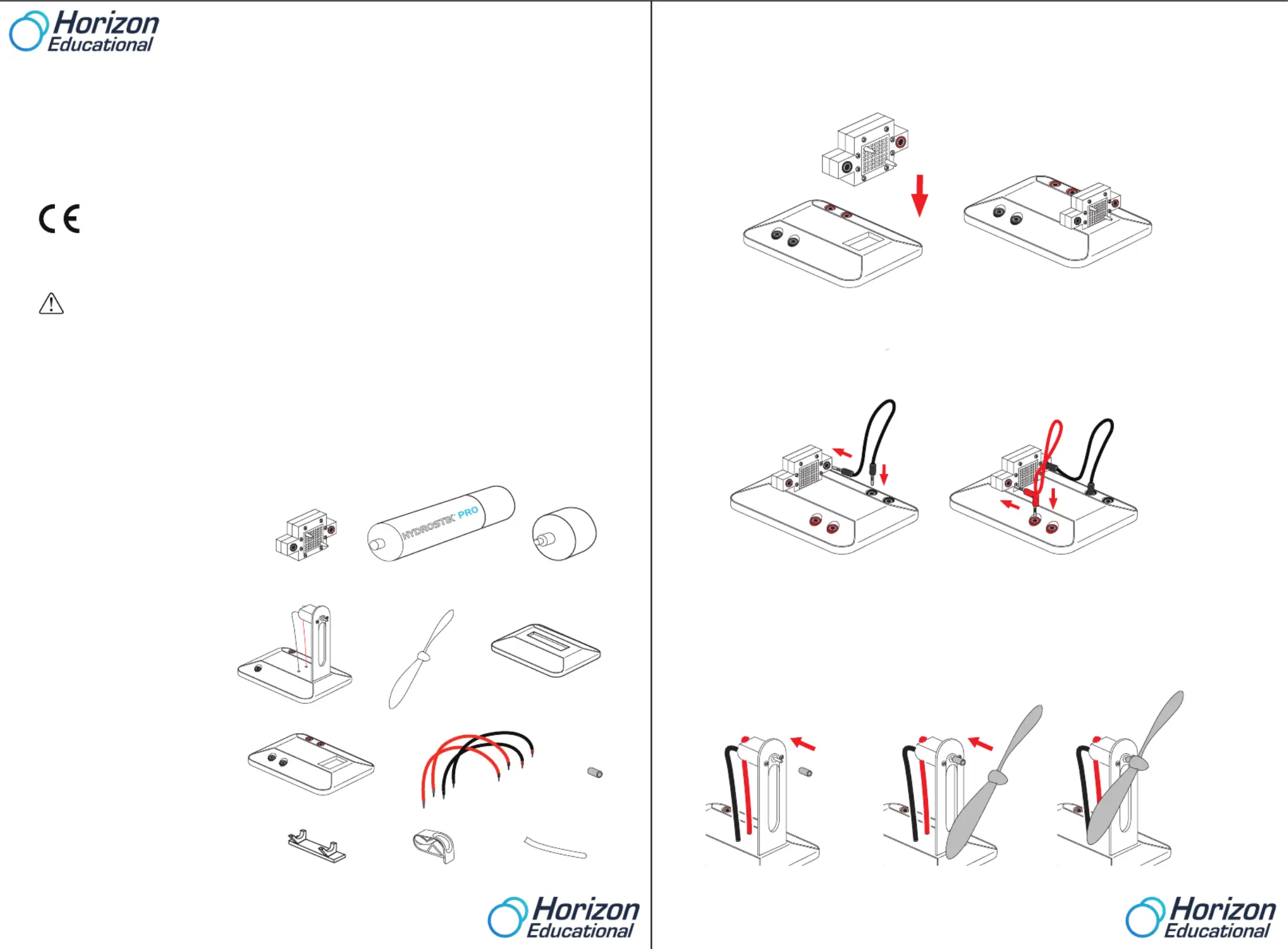

List of Component

a. Micro-fuel cell

b. HYDROSTIK PRO (hydrogen storage)

c. Pressure regulator

d. Fan module

e. Fan blade

f.HYDROSTIK PRO base

g. Micro-fuel cell base

h. Wires

i. Fan blade adapter

j. HYDROSTIK PRO support

k. Clamp

l. Silicon tubes

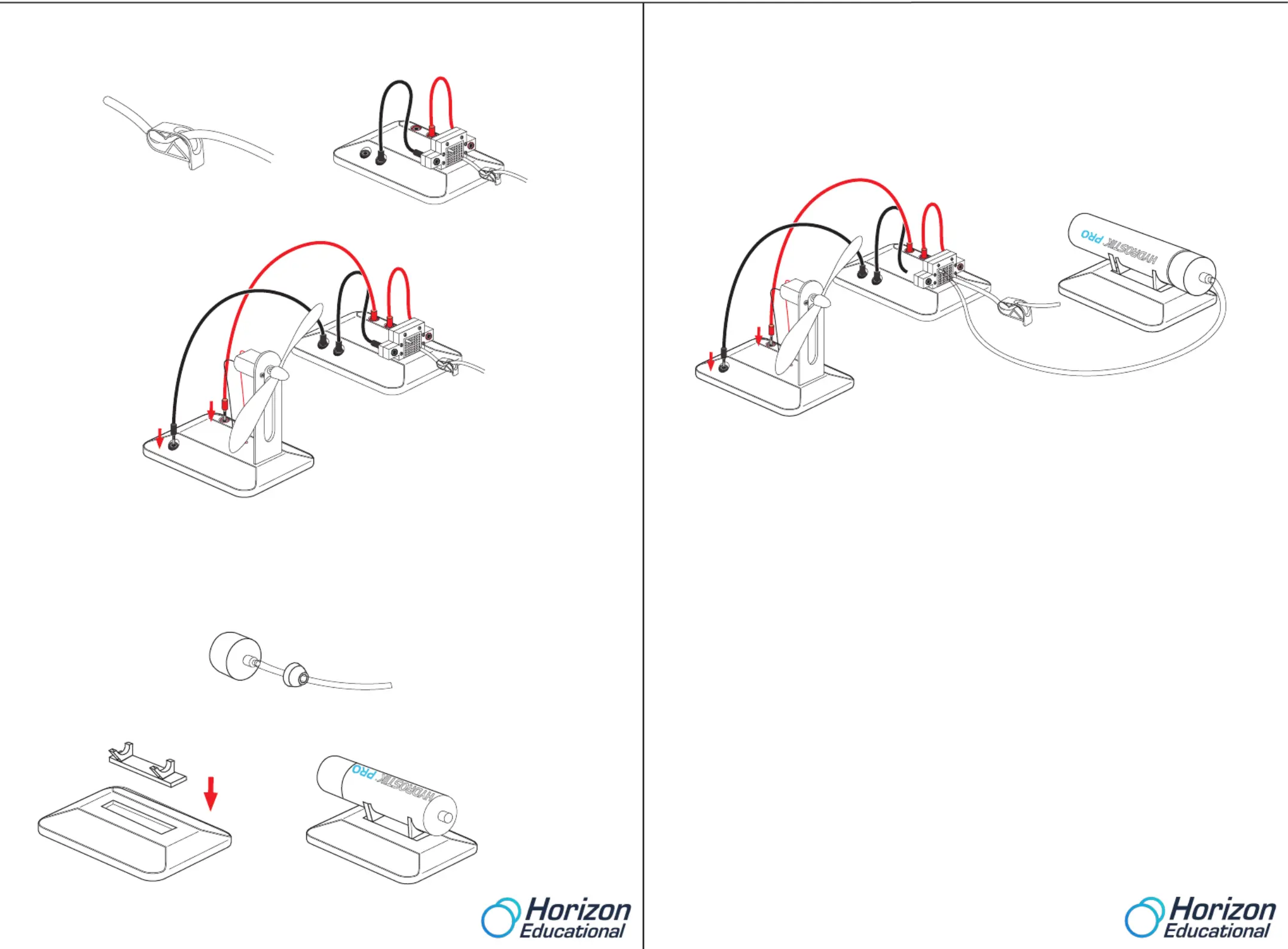

b.Use the short black & red wires to connect the fuel cell to its base as shown below. Make sure

you respect the color code when you plug each wire into the corresponding socket.

Preparing the fan module

a.Connect the adapter (i) to the motor axis. Insert the fan blade (e) onto the adapter.

Make sure the connection is tight.

ab

c

d

e

f

g

h

i

j

k

l

You will also need the following items

(not included in this kit):

- HYDROFILL PRO for charging

the HYDROSTIK PRO

- Scissors
