Hoshizaki Optional Heated Overow Drain Pan Kit

HS-5234

For Use with Commercial "S" Series Upright Models

Installation Instructions

Check to ensure that all parts are included:

Index

No.Description

Part

NumberQty

1Heated Overow Drain Pan

(includes 8 ft. (2.4 m) Power Cord)

3A9247-011

2Heated Overow Drain Pan Bracket3A9248-011

3Rubber Gasket413854-031

4Drain Fitting4A2792-011

5Silicone Hose (3/8×1/2 in.; L = 2 m)7730I38121

6Wire Harness (6 in.)4A6030-011

7Self-Drilling Hex Screw7B03I12108

8437618-011Nylon Tie Mount

98911-02004Nylon Tie

10Wire Clamp4A0809-034

11Wiring Label3A9294-011

WARNING

• The appliance should be serviced only by qualied service personnel to reduce the risk of death, electric

shock, serious injury, or re.

• No installation or service should be undertaken until the technician has thoroughly read these instructions.

Failure to follow these instructions will adversely affect safety, performance, component life and warranty

coverage, and may result in costly water damage.

• To reduce the risk of electric shock, do not touch the plug with damp hands. Move the power switch to the

"OFF" position, then unplug the appliance from the electrical outlet before servicing.

Installation Instructions

1) Move the power switch to the "OFF" position, then unplug the appliance from the electrical outlet.

2) Move the appliance out to access the rear of the appliance.

3) Remove the channel cover and condensate pan from the rear of the appliance. See Fig. 1.

4) Pour the condensate water out, then clean and dry the condensate pan.

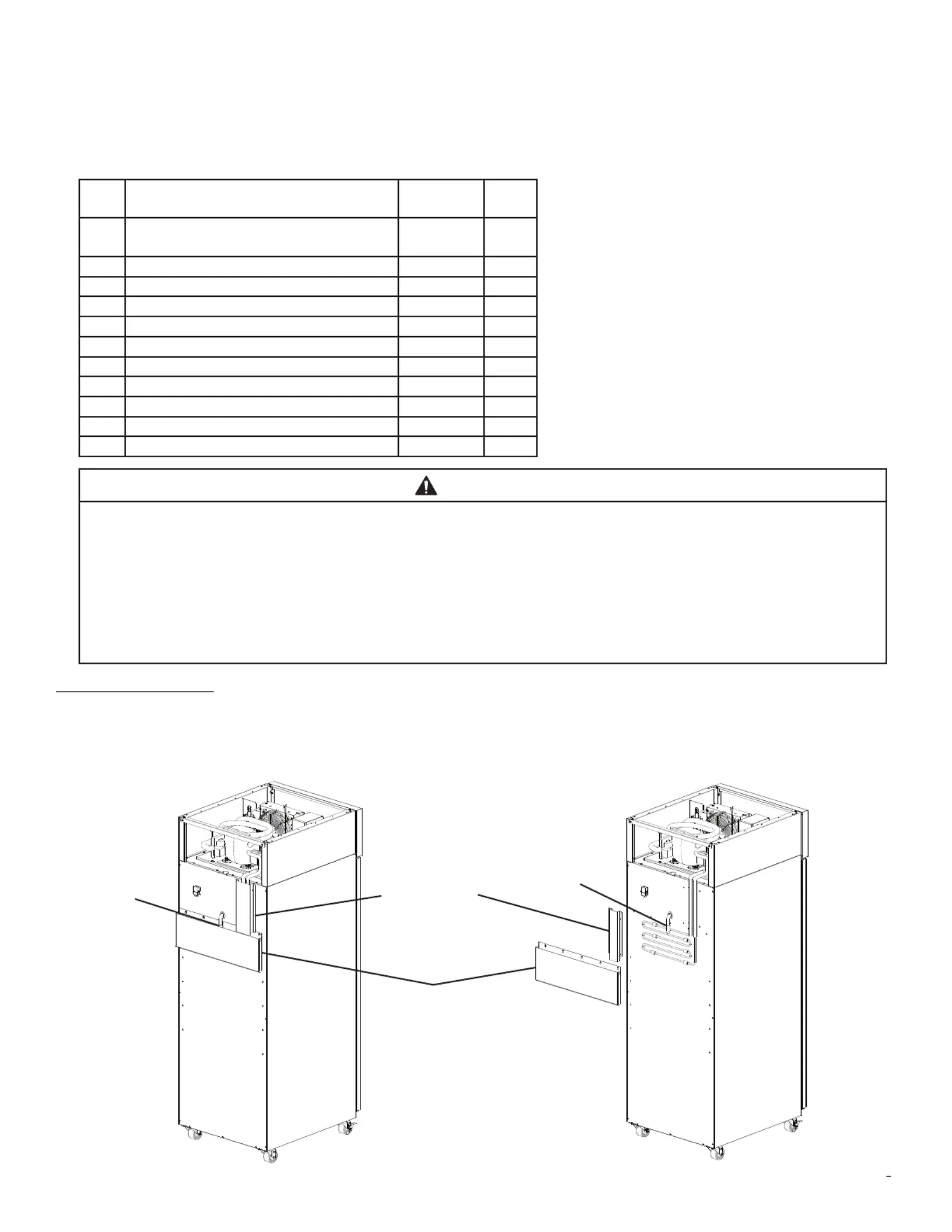

Fig. 1

Model Shown: CF1S-FS

Condensate Pan

Channel CoverDrain Boot

Drain Boot
