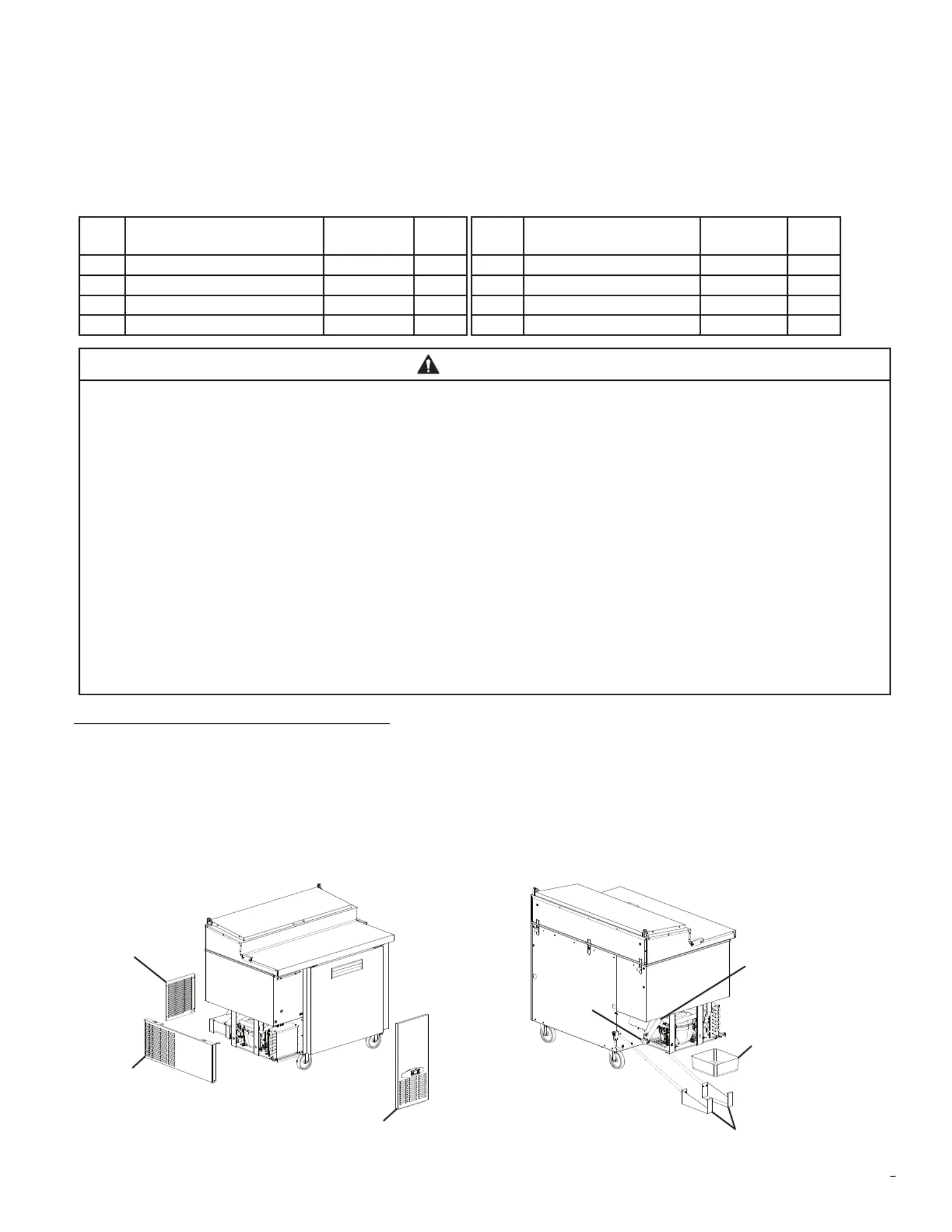

1

2A9096-010

Hoshizaki Heated Condensate Pan Kit

HS-5453

For Use with the Following Commercial and Steelheart Series:

A. CPT and PR Models: 46, 67, and 93

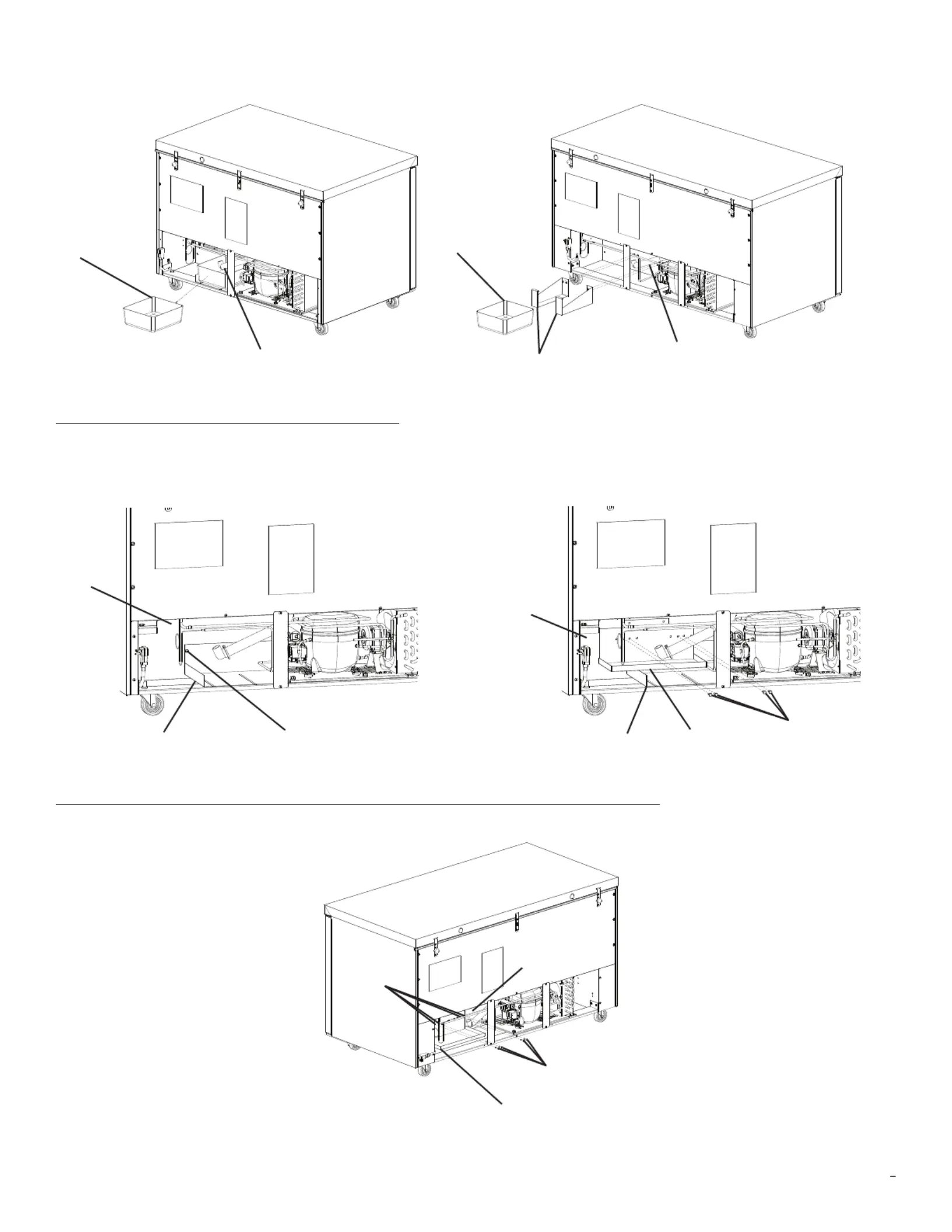

B. Freezer and Prep Table Models: 48, 60, and 72

Check to ensure that all parts are included:

Index

No.Description

Part

NumberQty

Index

No.Description

Part

NumberQty

1Heated Condensate Pan3B0185-0115Condensate Drain Hose4A0658L011

2Condensate Pan Bracket2A9087-01168911-02004Nylon Ties

3Wire Harness Receptacle4A6049-0117Bell Connector8101-14CE3

4Self-Drilling Hex Screw7B03I121048Wiring Label3B0188-011

WARNING

• Only qualied service technicians should install and service the appliance to reduce the risk of death, electric

shock, serious injury, or re.

• No installation or service should be undertaken until the technician has thoroughly read these instructions.

Failure to follow these instructions will adversely affect safety, performance, component life and warranty

coverage, and may result in costly water damage.

• See the instruction manual included with the appliance for installation instructions and safety information not

covered in this instruction sheet. If an instruction manual is not available, visit www.hoshizaki.com or contact

your Hoshizaki distributor.

• Appliance is heavy. Use care when lifting or positioning. Work in pairs when needed to prevent injury or

damage.

• To reduce the risk of electric shock, do not touch the plug with damp hands. Unplug the appliance from the

electrical outlet before servicing.

• Protect the oor when moving the appliance to prevent damage to the oor.

• Wear proper personal protection equipment (PPE) when executing these procedures.

A. Installation Instructions for CPT and PR Models

1) On existing models, unplug the appliance from the electrical outlet, then remove all product from the appliance.

2) Move the appliance out to access the rear of the appliance, then lock the casters.

3) On new appliance installation, from the instruction manual, follow and complete all of the installation instructions up to section

"II.E. Door/Drawer Reversal".

4) Remove the front, left side, and rear louver panels. See Fig. 1. Next, remove the current condensate pan and condensate pan

brackets as shown in Fig. 2 and discard, then remove the condensate drain hose. Note: Remove elbow from condensate drain hose

for re-use, then discard condensate hose.

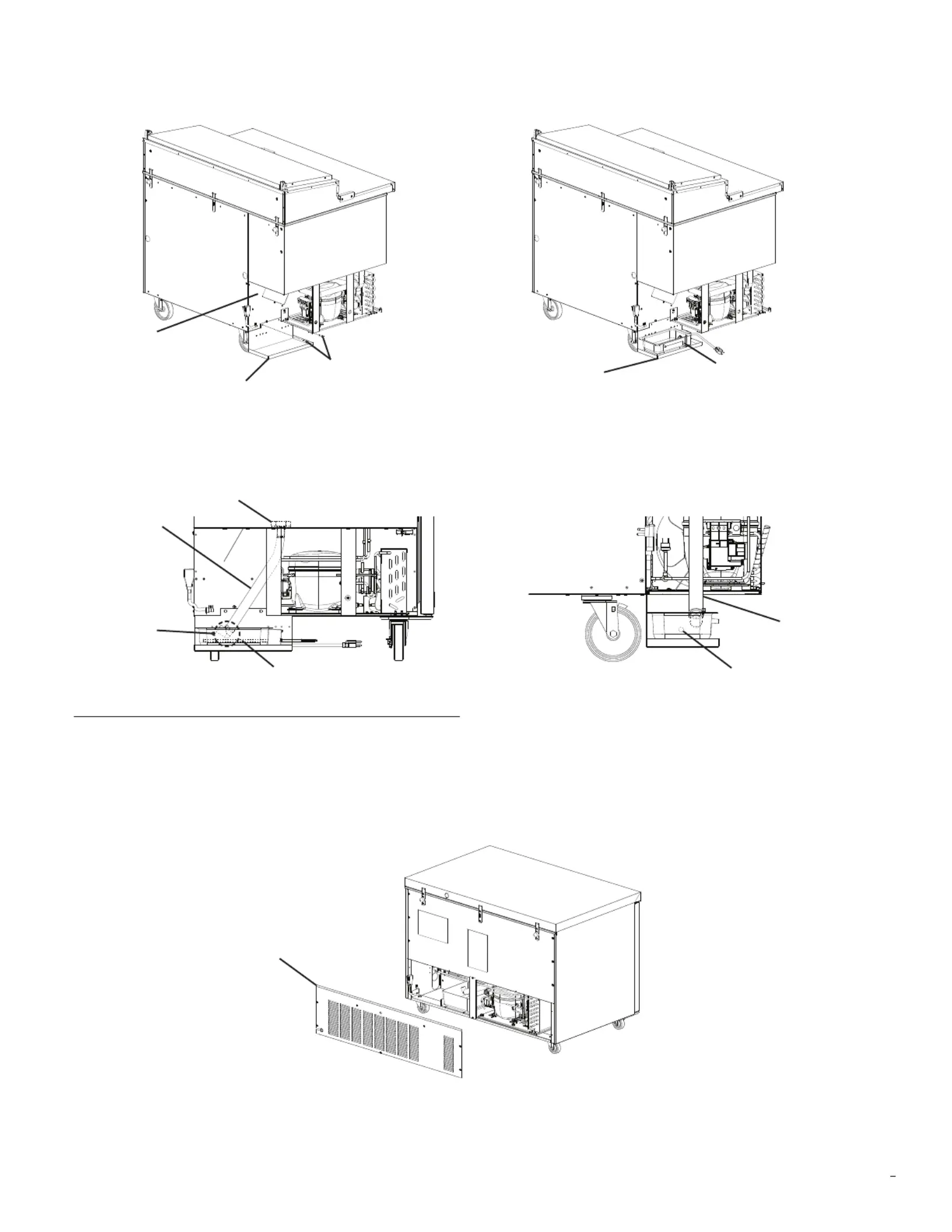

Fig. 1

Rear Louver

Panel

Left Side

Panel

Front Panel

Current

Condensate Pan

Current Condensate

Pan Bracket

Model Shown: PR46A

Fig. 2

Condensate

Drain Hose

Elbow
