FIXTURE INSTALLATION

1.Determine the location for the lamp. Using the mounting plate as a template, mark the location of the holes for

the wall anchors.

2.Drill the appropriate size holes for the WALL ANCHORS(5). (the holes should be slightly smaller than the size of

the anchors.) Install the wall anchors to the hole.

3.Attach the MOUNTING PLATE (1) onto the junction box using the MOUNTING SCREWS (2). This fixture is

designed to be mounted on standard junction box. The junction box must be securely mounted to the structure

of the building. Screw in the WOOD SCREW (6) to the anchors.

4.Attach the MOUNTING PLATE (1) unto the junction box using the MOUNTING SCREWS (2). This fixture is

designed to be mounted on standard round or octagon junction box. The junction box must be securely mounted

to the structure of the building.

5.Attach the Ground wire (Green) to the ground inside the outlet box (Generally green or bar copper wire) or the

GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT" WIRE!

FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!

6.Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together

with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with

electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED

WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!

4.Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires

same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS

COULD RESULT IN SERIOUS INJURY OR DEATH!

5.Attach the FIXTURE ASSEMBLY (8) to the MOUNTING PLATE (1) and secure with the SET SCREWS (7).

6.Screw the BULB (9) up into the SOCKET of the fixture.THIS FIXTURE IS RATED FOR 60 WATT LAMP. DO

NOT EXCEED THE RECOMMENDED WATTAGE!

7.Screw the GLASS (9) up into the FIXTURE ASSEMBLY .

8.Restore power to the outlet at the breaker or fuse box.

ITEMDESCRIPTIONPART NUMBER

1

MOUNTING PLATE

HDW-003931

2

MOUNTING SCREWHDW-003931

3

GROUND SCREWHDW-003931

4

WIRE NUTHDW-003931

5

WALL ANCHORSHDW-003931

6

WOOD SCREWHDW-003931

7

M4 SET SCREWSHDW-003931

8

FIXTURE ASSEMBLYFAS-003931

9

BULBNOT INCLUDED

10

GLASSGLS-003931

SOUTHOLD

3931

INSTALLATION INSTRUCTIONS

www.hvlgroup.com

Questions? We're here to help!

Contact us at [email protected]

WARNING/CAUTION

·DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS

COMPLETELY BEFORE STARTING INSTALLATION.

·TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND

MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED

FACTORY TRAINED TECHNICIAN.

·CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS

AFTER USE.

·REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE

CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR

TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.

·DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE

TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT

FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL

ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.

·PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS

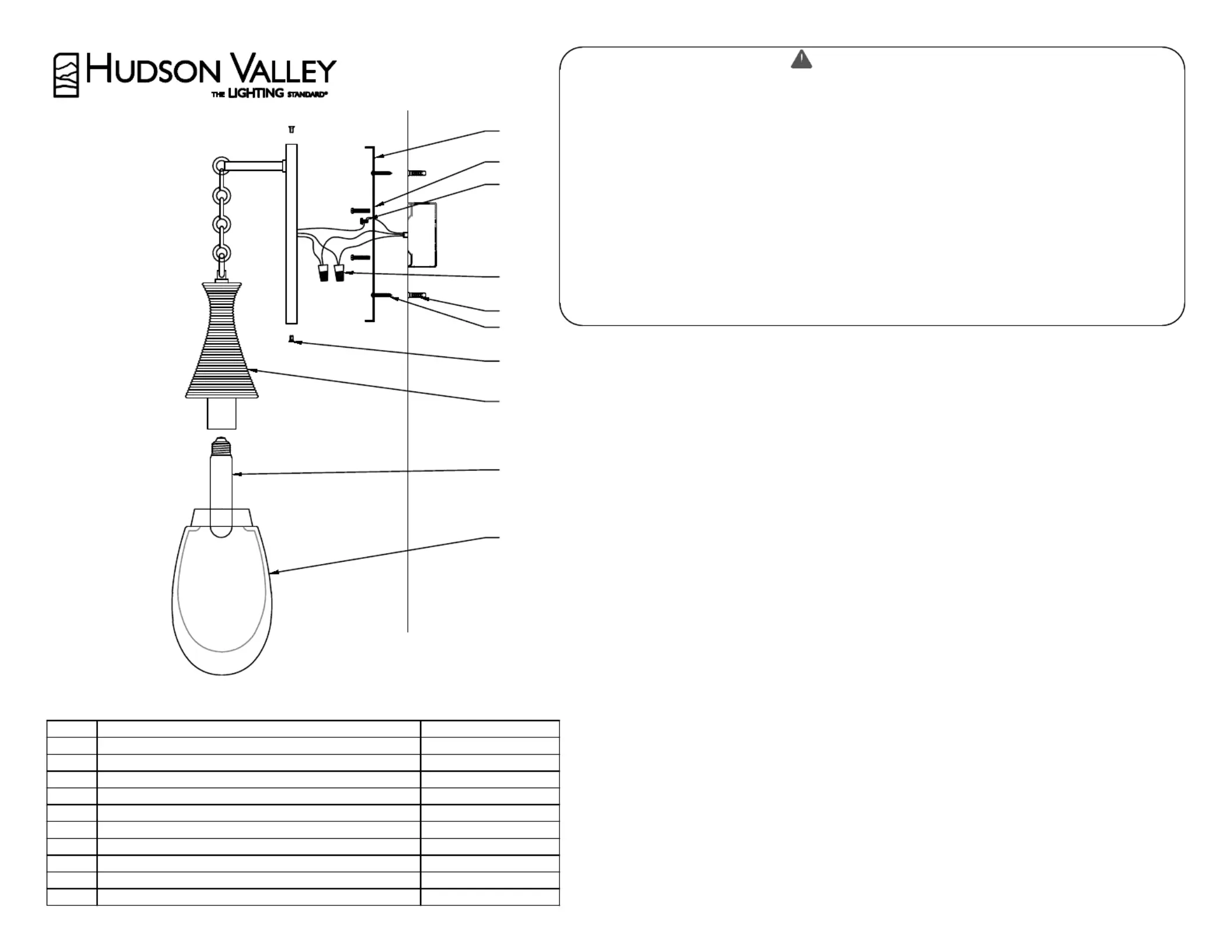

1

2

3

4

5

6

7

8

10

9
