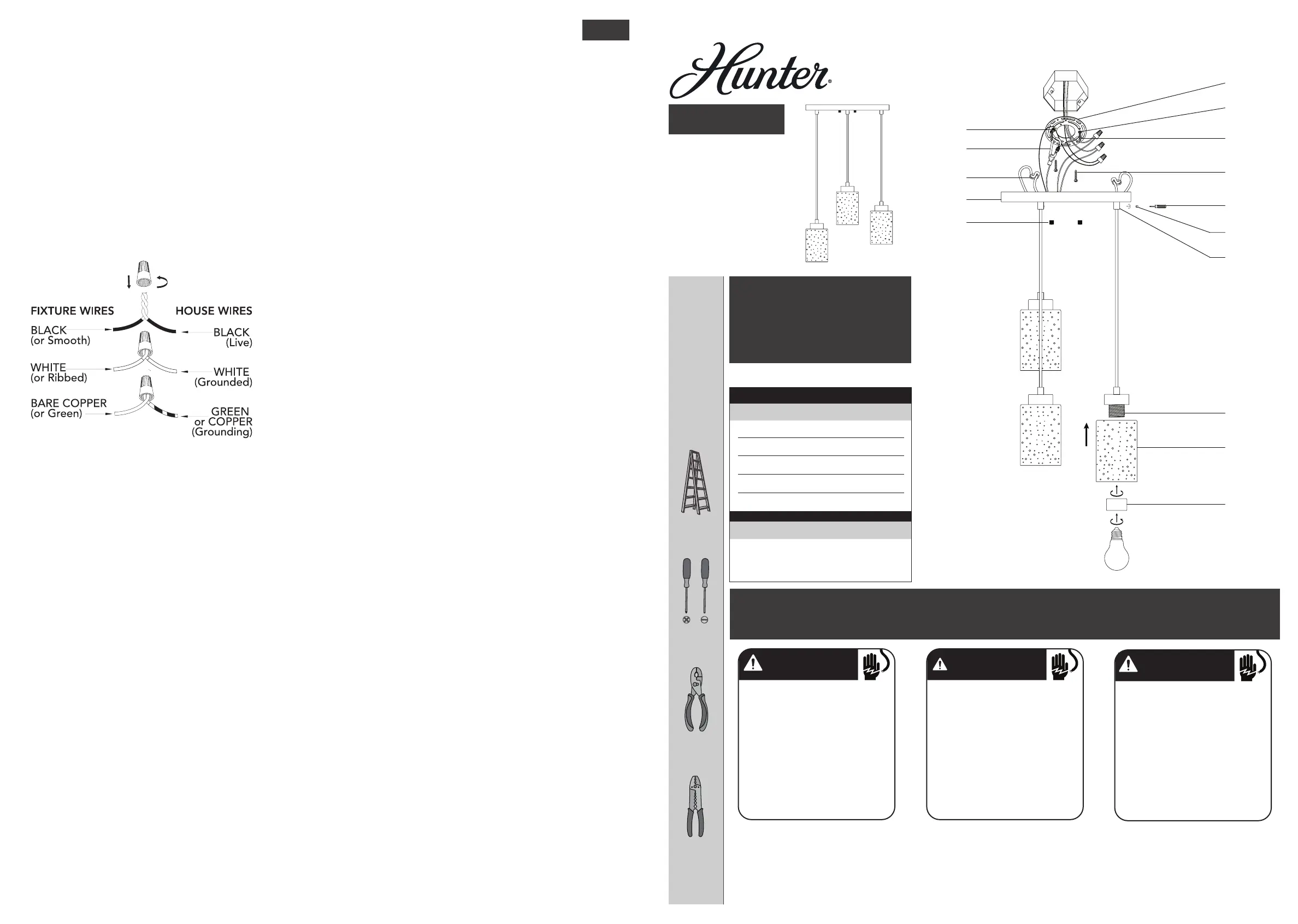

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION

For Models:

Para los Modelos:

Pour les Modèles:

Here are the

tools you’ll

need to

complete your

installation:

Estas son las

herramientas

que usted

necesitará para

completar su

instalación:

Voici les outils

dont vous

aurez besoin

pour réaliser

l’installation:

Ladder

Escalera

Échelle

Pliers

Alicates

Pince

Wire Strippers

Pelacables

Pince à dénuder

READ AND SAVE THESE INSTRUCTIONS

These instructions are provided for your safety. It

is very important that they are read carefully and

completely before beginning installation of the

lighting xture.

LEA Y GUARDE ESTAS INSTRUCCIONES

Estas instrucciones se proporcionan para su

seguridad. Es muy importante leerlas detenid-

amente y completamente antes de comenzar la

instalación de la lámpara.

LISEZ ET CONSERVEZ CES INSTRUCTIONS

Ces instructions sont fournies pour votre sécurité.

Il est très important de les lire attentivement dans

leur intégralité avant d’entreprendre l’installation

du luminaire.

Fixture weight ±2 lbs:

Peso ±2 lb:

Poids xe ±2 lbs:

•

WARNING

• All wiring must be in accordance with national

and local electrical codes ANSI/NFPA 70. If you

are unfamiliar with wiring or in doubt, consult a

qualied electrician.

• To avoid possible electrical shock, before

installing your light xture, disconnect the power

by turning off the circuit breakers to the outlet box

associated with the wall switch location.

• The lighting xture must be grounded. If the

ground wire for the installation site is not present,

immediately STOP installation and consult a

qualied electrician.

•

• Todo el cableado debe realizarse de acuerdo con

los códigos eléctricos locales y nacionales ANSI/

NFPA 70. Si no está familiarizado con el cableado,

o si tiene duda, consulte a un electricista calicado.

• Para evitar una posible descarga eléctrica, antes

de instalar su lámpara, desconecte la energía

apagando los interruptores automáticos (breakers)

que alimentan la caja de salida asociada con la

ubicación del interruptor de pared.

ADVERTENCIA

• L’appareil d’éclairage doit être mis à la terre.

Si le l de terre du lieu d’installation n’est pas

présent, ARRÊTEZ immédiatement l’installation et

consultez un électricien qualié.

•

AVERTISSEMENT

•

Tout le câblage doit être conforme aux codes

électriques nationaux et locaux en vigueur et à la

norme ANSI/NFPA70. Si vous n'avez pas l'habitude

de faire ce câblage ou en cas de doute, adressez-

vous à un électricien qualié.

• Pour éviter tout choc électrique, avant d’installer

le luminaire, coupez le courant en éteignant les

disjoncteurs de la boîte électrique associée à

l’interrupteur mural.

•

Le luminaire doit être mis à la terre. Si le l

de terre du lieu d’installation n’est pas présent,

ARRÊTER immédiatement l’installation et

consulter un électricien qualié.

©2022 Hunter Fan Co.

Light Cluster

Luz En Racimo

Lumière Grappe

Part #/Pieza #/Pièce #

Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De

Maintenance Quincaillerie

Glass/Domo De Vidrio/Verre

Part #/Pieza #/Pièce #

ENGLISH

Finish/Finish/FiniModel/Modelo/Modèle

Type/Tipo/TypeModel/Modelo/ Modèle

Screwdriver

Destornilladore

Tournevis

F

G

L

J

I

H

B

C

K

D

E

A

M

O

P

13062

13063

13064

Hartland

KG20902214

KG20902L11

Brushed Nickel/Níquel Pulido/

Nickel Brossé

Alturas Gold/Alturas Gold/

Or d’Alturas

KG20901834

Noble Bronze/Bronce Noble/

Bronze Noble

13062

13063

13064

KA28301046

Clear Seeded Glass/

Vidrio Transparente Con Burbujas/

Verre Piqueté Transparent

13062

13063

13064

ML411

r_080322

7.04 lbs(3.19 kg)

3

3

3

FINISHING THE INSTALLATION

CONNECTING THE WIRES

PREPARING FOR INSTALLATION

CLEANING TIPS

Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light

and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.

Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old

xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the

bag. Then remove cap nuts (L) from mounting screws (C). Place the mounting plate (B) over the junction box so that

mounting screws (C) and nuts (A) extend out away from the ceiling. Depending on the placement of your junction box

the position of mounting screws (C) may need to be adjusted to allow the canopy to be ush with the ceiling. Adjust the

position of mounting screws (C) so that mounting screws (C) can be exposed 5-6 mm after passing through the canopy

(K) to properly t the cap nuts. Mounting screws (C) can be adjusted by loosening nuts (A) and loosening or tightening

mounting screws (C). Once the ideal position of mounting screws (C) has been conrmed, tighten nuts (A) on mounting

screws (C) on the front of the mounting plate to ensure that mounting screws (C) are secure. Pull the house wires

through the center of mounting plate (B). Secure mounting plate (B) to the junction box by tightening the screws (D).

Loosen the screw (F) with included screwdriver (E), slide cord (R)

through cord grip (K) to adjust the wire to desirable length, and then

tighten the screw (F) with screwdriver (E) to secure the cord tight. Cut

excess cord leaving enough length to reach from each end to center

of the canopy to assure that the connections of each of the 3 cords

and house wiring can be made. Remove the outer jacket of each cord

to expose individual wires (white, black, green). Strip half an inch

of jacket away from the ends of each individual wire. Have a helper

support the xture’s weight while completing the wiring. Tighten the

screw collar loop (I) into mounting plate (B). Hide wirerope inside the

canopy (F). Attach the xture’s wires [from all 3 cords] to the power

supply wires from the junction box. Connect black to black (live); white to white (neutral); grounding to grounding

(green or copper). Twist the ends of the wire pairs together. Then, twist on a wire connector. Make sure all twists are

in the same direction. Loop xture’s ground wire around grounding screw (H) and tighten. If there is no ground wire

(green or copper) from the junction box, contact a qualied electrician.

Raise canopy (K) to mounting plate (B) and position mounting screws (C) so that they protrude through the openings of

canopy (K). Secure canopy (K) in place with cap nuts (L). Secure glass (O) onto the socket (M) by screwing socket ring (P)

tight. Install light bulbs (not included) in accordance with the xture’s specications. Do not exceed the recommended

wattage. Turn on the power and test the xture. Your installation is now complete.
