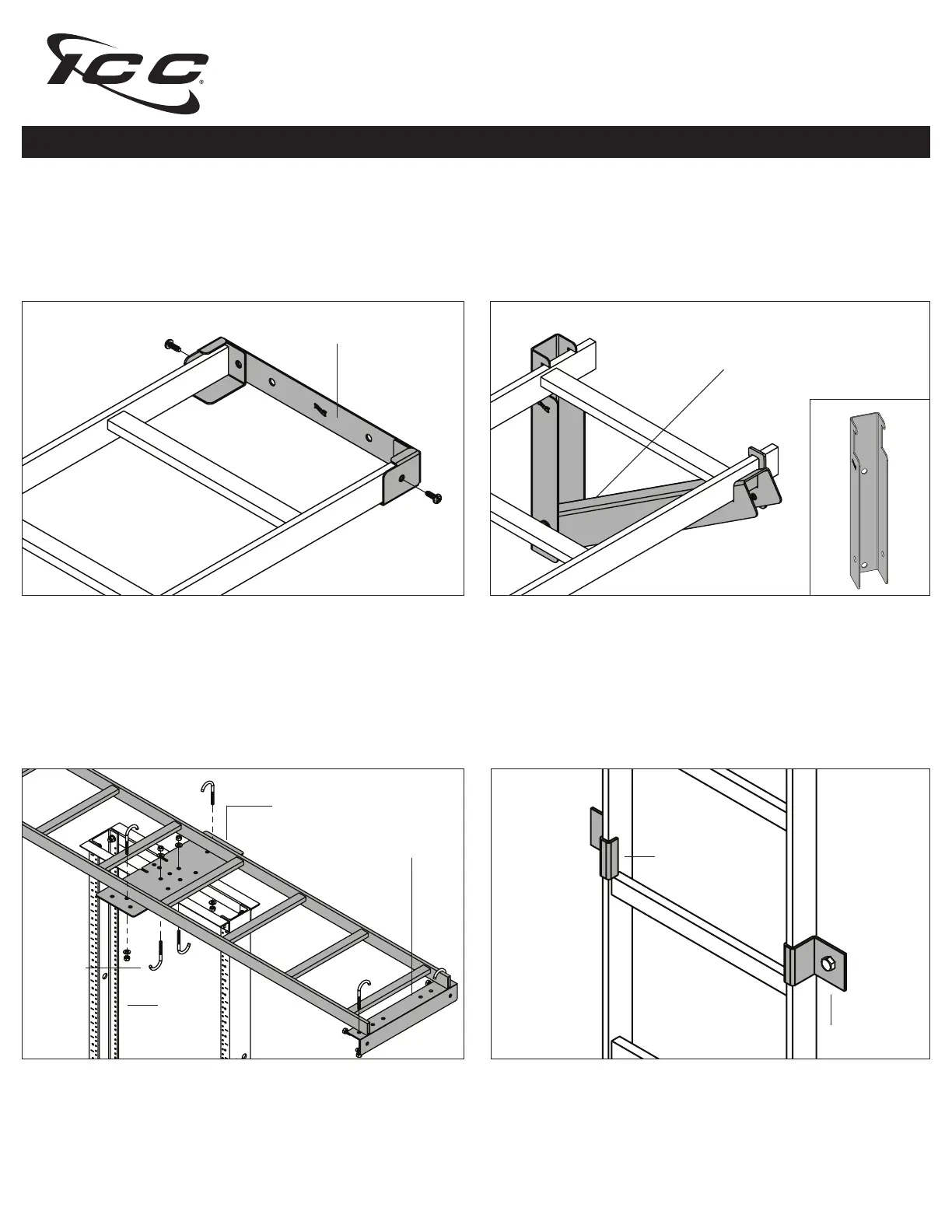

Seite 1/4

• To mount ladder rack runway to the wall

• Includes 2 brackets and 4 #12-24 x 5/8 screws

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35"

Note: Drywall can not support the weight of ladder rack

• Includes 6 Wall Support Triangles and 2 #12-24 x 5/8 screws

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35"

Note: It is recommended to install a wall support triangle every 5'

How to Mount Ladder

Wall Support Bracket, Perpendicular

Part No.: ICCMSLAWS2

Wall Support Triangle, Parallel

Part No.: ICCMSLTWS6

Wall Support Bracket, Vertical

Part No.: ICCMSLVWBK

• To secure ladder rack runway at against the wall

• Includes 2 brackets

• Wall fasteners not included

• Hole size for mounting to the wall is 0.43"

5' Ladder Rack Kit, Perpendicular

Part No.: ICCMSLRW05

• To route cable from rack to wall

• Includes a 5’ ladder rack, a relay bracket, a wall bracket,

2 J-bolts and 2 end caps

• Hole size for mounting to the wall is 0.35"

Wall Bracket

Wall Support Bracket

Rack

Relay Rack Bracket

J-Bolt

Wall Support Bracket

Wall Support Triangle

2 Mounting Holes

888-ASK-4ICC csr

icc.com icc.com

INSTALLATION INSTRUCTIONS

Ladder Rack System

IMPORTANT: Before you start, please plan on how the ladder rack system is to be congured.

MSR-0352-RevI

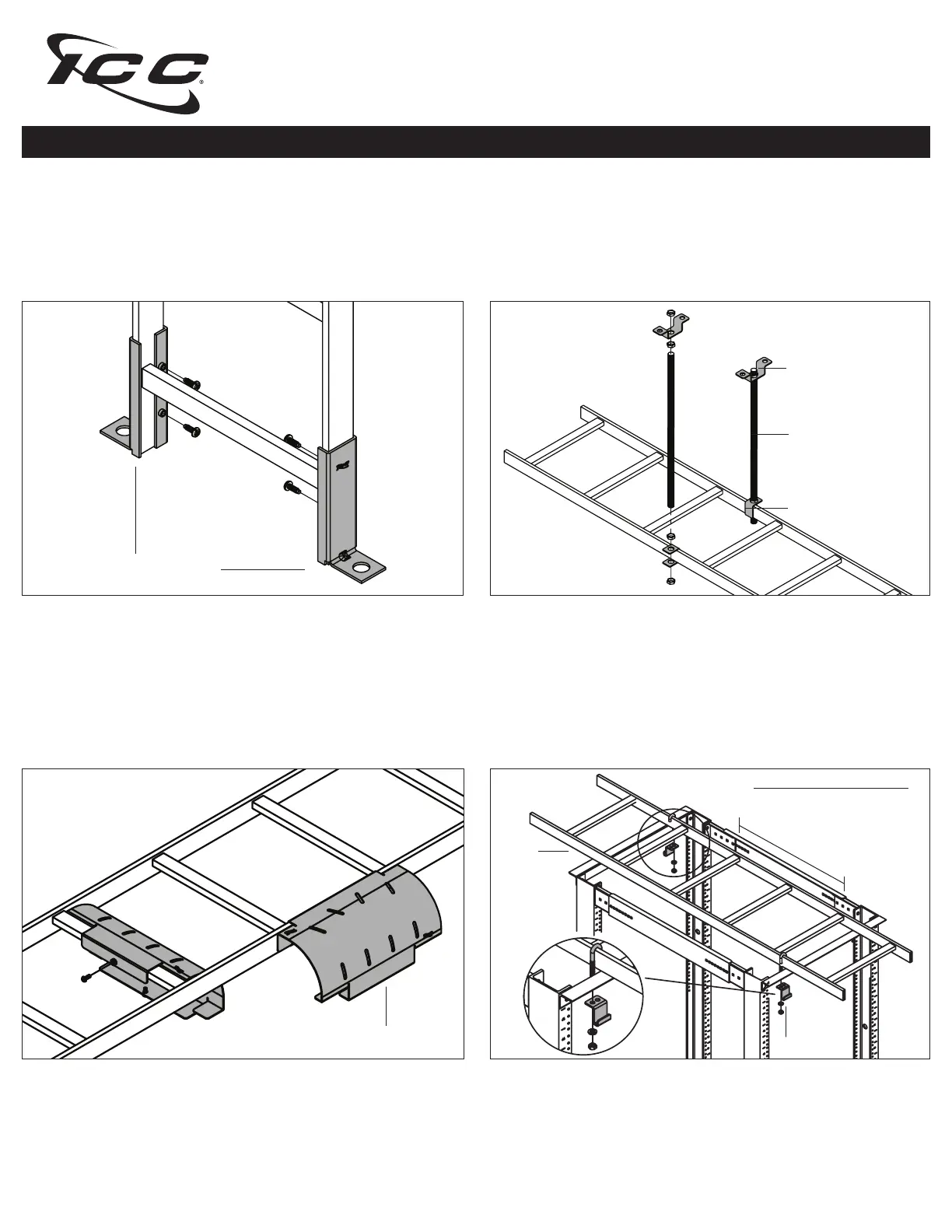

• To sustain over-hanging ladder rack runway to the ceiling

• Includes 2 threaded rods (6'), 2 ladder brackets, 2 ceiling

brackets, and 8 nuts

• Ceiling fasteners not included

• Hole size for mounting to the ceiling is 0.53"

• Max load: 132lbs/ft when supported every 5'

How to Mount Ladder

Ceiling Mount Kit with 6' Rods

Part No.: ICCMSLCMRK

4 Post Relay Rack Brackets

Part No.: ICCMSL4PBK

• To secure ladder rack runway over 4 post racks

• Includes 2 parallel mounting brackets, 2 perpendicular

mounting brackets and 2 J-Bolts

• To maintain proper cable bend radius at drop points

• Includes 2 radius controlled drops and 4 screws

Cable Radius Drop

Part No.: ICCMSLRRDB

• To join ladder rack runway at ends

• Includes 2 anchors and 4 #12-24 x 5/8 screws

• Floor fasteners not included

• Hole size for mounting to the oor is 0.75"

Floor Mount Kit

Part No.: ICCMSLMFF2

Bracket

Rack

4-Post Adjustable Distribution Rack

Part #:

ICCMSR4P84 7' H, 45 RMS

Adjustable

Rod

Ceiling bracket

Ladder bracket

Floor Mount Brackets

Radius drop

888-ASK-4ICC csr

icc.com icc.com

INSTALLATION INSTRUCTIONS

Ladder Rack System

IMPORTANT: Before you start, please plan on how the ladder rack system is to be congured.

MSR-0352-RevI

Produktspezifikationen

Marke:	ICC
Kategorie:	Nicht kategorisiert
Modell:	MSLRW05
Breite:	1524 mm
Tiefe:	305 mm
Produktfarbe:	Schwarz
Höhe:	140 mm
Verpackungsbreite:	318 mm
Verpackungstiefe:	154 mm
Verpackungshöhe:	38 mm
Paketgewicht:	8092 g
Typ:	Kabelrinne
Menge pro Packung:	1 Stück(e)
Gehäusematerial:	Stahl
