INPUT

PowerMatch

XBass

3

2

1

0dB

6dB 12dB

18dB

10. Balanced 4.4mm analogue input

This is a balanced analogue input.

11. Single-ended 3.5mm analogue input

For connecting single-ended 3.5mm input.

12. RCA analogue input

This is an analogue input.

13. Balanced 4.4mm analogue output

This is an analogue output via 4.4mm > XLR or other balanced

interconnects. You could use this for an active speaker.

Tip: As ZEN CAN is balanced, this is the recommended output.Signature

14. DC 5V power

Please connect ZEN CAN to the enclosed power Signature

supply, ZEN CAN must ONLY be powered by 5 volts.Signature

246

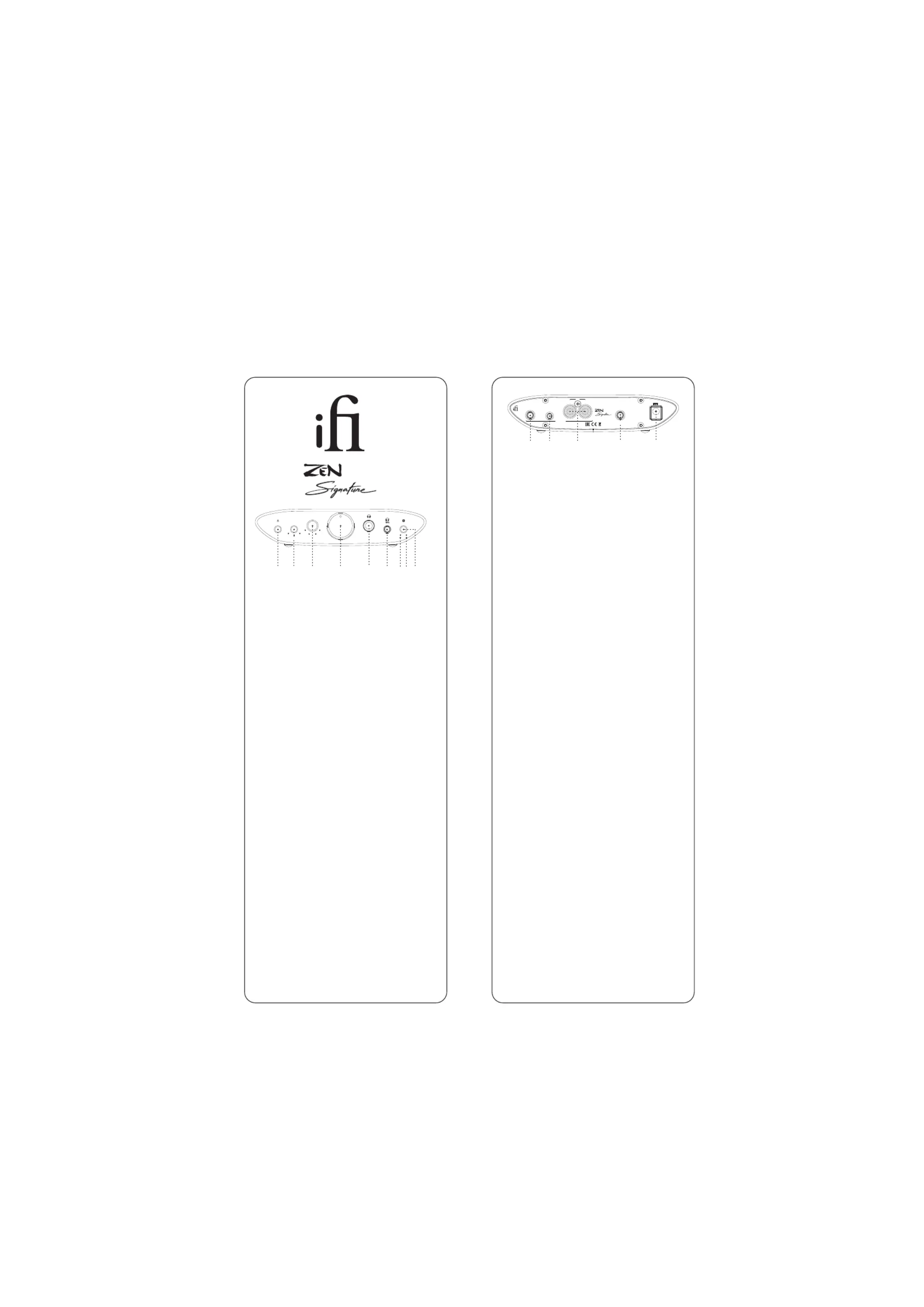

Thank you for purchasing the CAN from ZEN series. The CAN

Signature is a balanced audio amplifier.

1. Power switch

2. Input channel switch

Input 1: RCA

Input 2: Single-ended 3.5mm

Input 3: Balanced 4.4mm

3. 0dB/6dB/12dB/18dBPowerMatch selection:

We recommend starting from 0dB and then increasing the

switchable gain level to attain an enjoyable and comfortable level

of volume from the headphones.

Warning: at the outset do not use excessive gain, otherwise damage to hearing or

connected headphones may ensue. AMR/iFi audio is not responsible for any

damage/injury from misuse.

4. Analogue Volume Control

At normal listening levels, the volume control should be around the 12

o'clock position. Increase the gain level to enjoy a higher listening level.

5. Single-ended 6.3mm output

For connecting single-ended 6.3mm headphones. With single-ended

3.5mm headphones, connect with a 3.5mm to 6.3mm adapter.

6. Balanced 4.4mm analogue output

For connecting balanced 4.4mm headphones.

Tip: As ZEN CAN Signature is balanced, we recommend the 4.4mm output.

7. XBass LED

XBass (On/Off ) was uniquely designed to extend bass response

to suit different headphones. It is a pure analogue signal circuit.

8. XSpace LED

The XSpase (on/off) recreates a holographic sound field.

It is a pure analogue signal processing circuit designed for

listening to headphones as if one was listening to speakers. This

addresses the 'music inside the head' sensation, which makes

for unsettling listening.

Tip: Sonically-hindering DSP is NOT used for XBass nor Xspace systems. They use the highest-

quality discrete components and operate purely in the analogue domain. Hence all the

clarity and resolution of the original music is retained.

Ver1.0

ifi-audio.com

19

DC 5V

L

R

3

BALANCED

Technology licensed from AMR-Audio, UK Assembled in China

BALANCED

Output

Inputs

2

SINGLE

ENDED

1

1011121314

5378

9. Settings

This button chooses between:

OffXSpaceXBassXBass + XSpace (short press) > > >

Specifications

Max Output:

Balanced >15.1V/385 mW (@ 600)Ω

>6.2V/1200 mW (@ 32)Ω

UnBAL >7.6V/98 mW (@ 600Ω)

>7.2V/1600 mW (@ 32)Ω

THD + N:

Balanced <0.006% (@ 360 mW/2.4V 16)Ω

UnBAL <0.005% (@ 100 mW/1.27V 16)Ω

SNR:

Balanced >121dBA (@ 15.2V)

UnBAL >120dBA (@ 7.6V)

Max. Input:

Balanced 7.4V RMS

RCA 3.8V RMS

3.5mm 1.92V RMS

Gain: 0dB, 6dB, 12dB and 18dB

Frequency Response:10Hz - 200kHz (-3dB)

Power supply requirement:DC 5V/2.5A(centre +ve)

Power consumption:No Signal ~5W

Max Signal ~13W

Dimensions: 158 x117 x35 mm (6.2" x 4.6" x 1.4")

Net weight: 550g (1.21 Ibs)

Limited Warranty: 12 months*

*12 months typical or as permitted/required by local reseller laws.

**Specications are subject to change without notice.
