3. Balanced 4.4mm analogue output

This is an analogue output via 4.4mm > XLR or other balanced

interconnects. You could use this for an active speaker or an

amplifier.

Tip: As the ZEN DAC Signature V2 is balanced, this is the recommended output.

4. Variable/Fixed switch

This switch will determine whether or not the ZEN DAC Signature

V2 analogue volume control is used.

5. RCA analogue output

This is an analogue output.

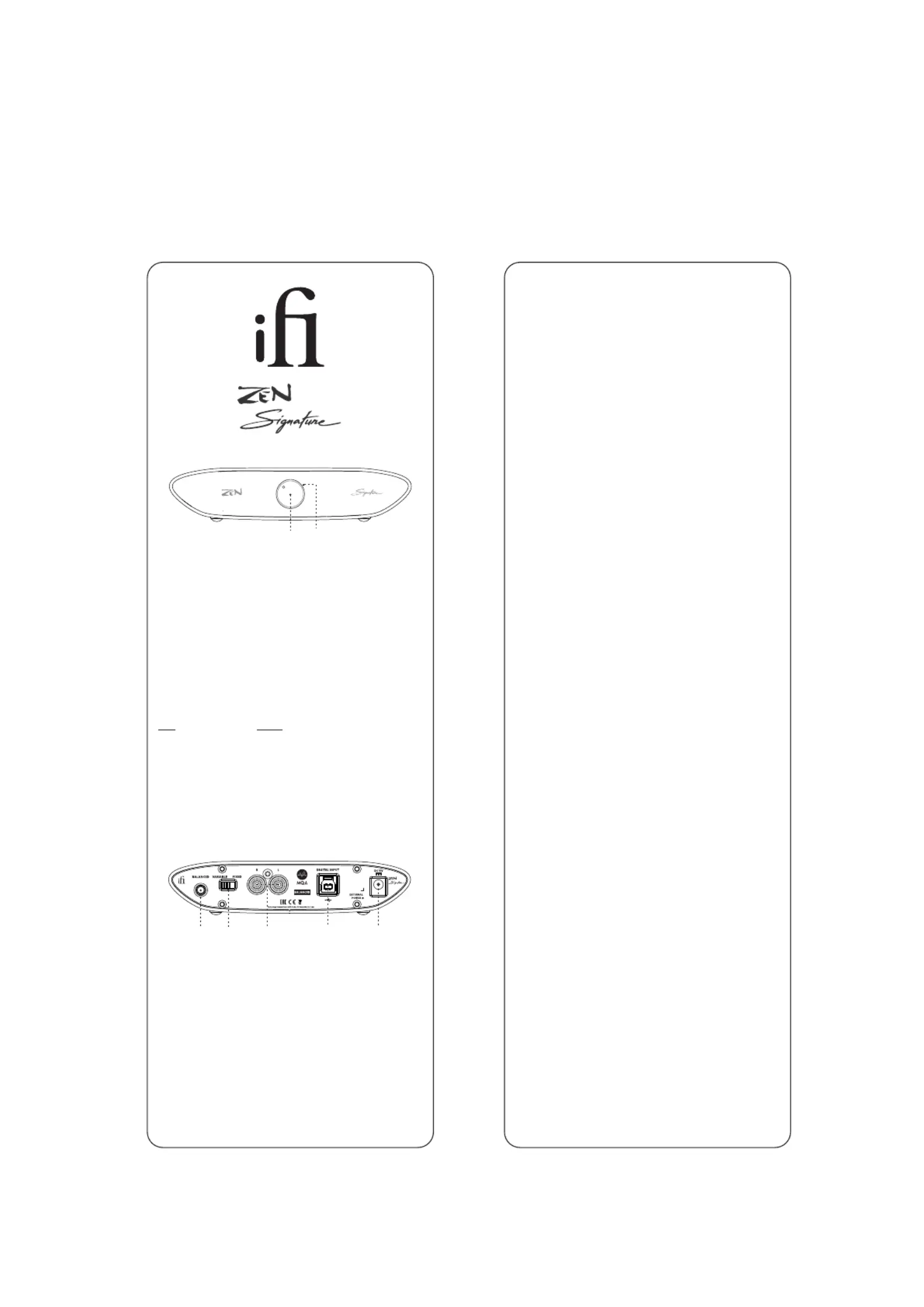

Thank you for purchasing the DAC Signature V2 from ZEN series.

The DAC Signature V2 is a balanced USB-audio DAC amplifier.

1. Analogue Volume control

The analogue volume control in the ZEN DAC Signature V2 is

superior to any digital volume control. It can be used to control

the headphone volume or the pre-amplifier volume (when set

to 'Variable'). If the output at the rear is set to 'Fixed' the volume

control is bypassed.

2. Audio Format LED (kHz)

The LED colour scheme indicates the audio format and

sampling frequency received by the ZEN DAC Signature V2

from the music source.

LEDMode

Yellow PCM 44.1/48kHz

White PCM 88.2/96/176.4/192/352.8/384kHz

Cyan DSD 64/128

Red DSD 256

Green MQA

Blue MQA Studio

Magenta Original Sample Rate*

*MQB

Ver1.0

ifi-audio.com

Input voltage: DC 5V/2.5A

Input:USB3.0 B Socket (USB2.0 compatible)

Formats: 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM

2.8/3.1/5.6/6.2/11.2/12.4MHz DSD

353/384KHz DXD

MQA

DAC:Bit-Perfect DSD & DXD DAC by Burr Brown

Line Section

Output:

Balanced 4.4mm: 2V / 6.2V max. (variable) 4.2V fixed

UnBAL RCA: 1V / 3.3V max. (variable) 2.1V fixed

Zout:

Balanced: <= 200 Ohm

UnBAL: <= 100 Ohm

SNR:<-116dB(A) @ 0dBFS (UnBAL/BAL)

DNR:>116dB(A) @ -60dBFS (UnBAL/BAL)

THD+N: <0.0015% @ 0dBFS (UnBAL/BAL)

Power consumption:No Signal ~0.5W

Max Signal ~2.5W

Dimensions:158 x 117 x 35 mm

6.2" x 4.6" x 1.4"

Net weight:505 g (1.11 lbs)

Warranty period: 12 months

Specifications are subject to change without notice.

DAC

DAC

1

2

6. USB-audio and power input

This is a USB input. It connects the ZEN DAC Signature V2 to

the computer audio source and provides the power supply.

7. 5poDC V wer

ZEN DAC V2 is powered by 5 volts, either via the Signature

encloseUSB able(for connection to laptop oPC) oDC ower d cr r p

supply.

Note: For use with PC it is necessary to download drivers.

Tip: For all latest firmware updates please refer to our website here:

https://ifi-audio.com/download-hub/

Specification

34567

DAC

V2

V2
