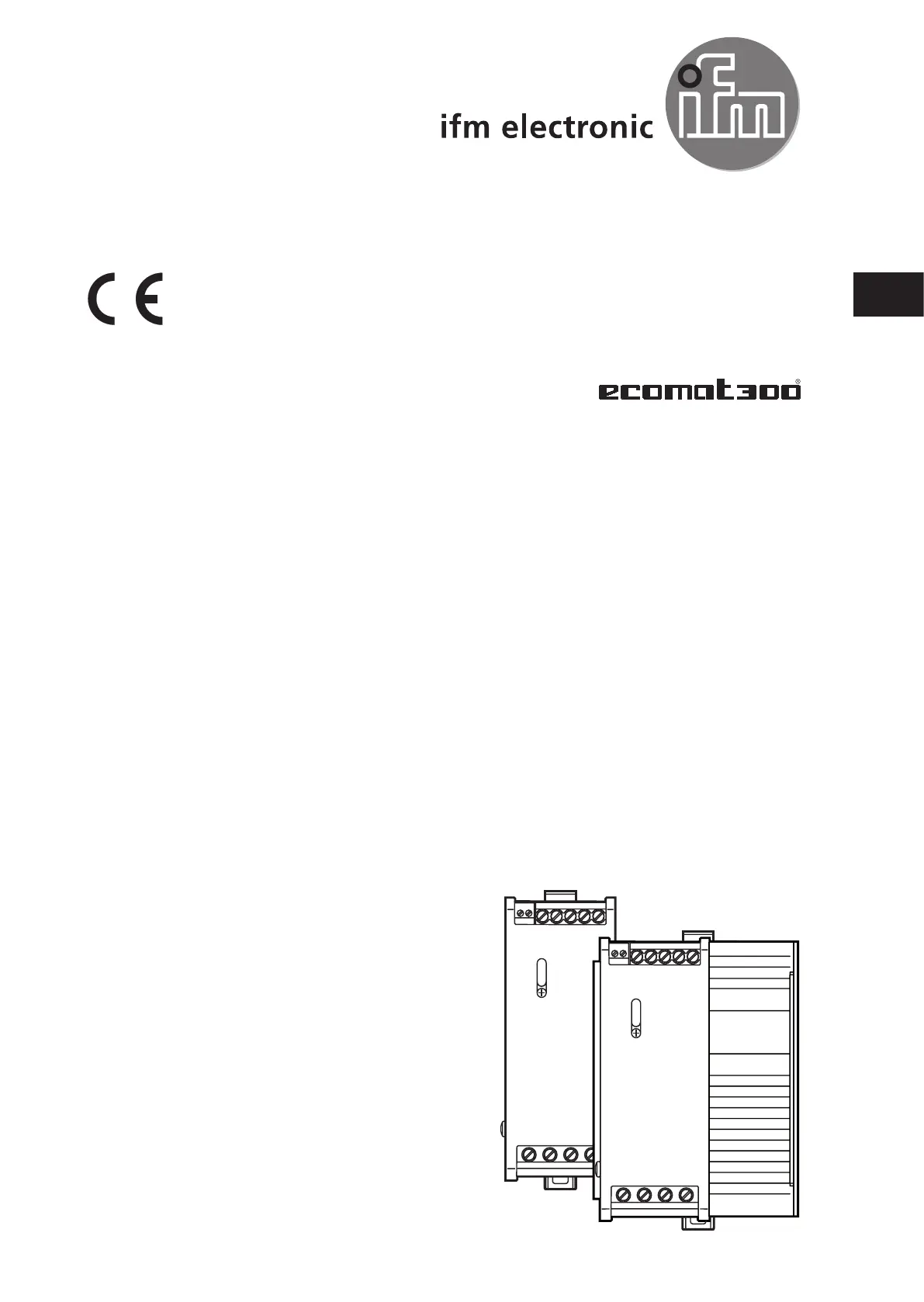

Installation instructions
AS-i power supplies
single phase
AS-i Power Supply
AC123x
AC124x
7390790 / 00 02 / 2010
UK

2
Contents
1 Preliminary note ���������������������������������������������������������������������������������������������������3
1�1 Notes on this document ���������������������������������������������������������������������������������3
1�2 Symbols used ������������������������������������������������������������������������������������������������3
1�3 Warning signs used ���������������������������������������������������������������������������������������3
2 Safety instructions �����������������������������������������������������������������������������������������������4
2�1 General ����������������������������������������������������������������������������������������������������������4
2�2 Installation and connection ����������������������������������������������������������������������������4
2�3 Tampering with the device �����������������������������������������������������������������������������4
3 Functions and features ����������������������������������������������������������������������������������������4
4 Installation������������������������������������������������������������������������������������������������������������5
4�1 Installation position of the device �������������������������������������������������������������������5
4�2 Place device onto the DIN rail �����������������������������������������������������������������������6
4�3 Remove the device ����������������������������������������������������������������������������������������6
5 Electrical connection ��������������������������������������������������������������������������������������������7
5�1 Core cross sections ���������������������������������������������������������������������������������������7
5�2 External fuse �������������������������������������������������������������������������������������������������7
5�3 Screen connection �����������������������������������������������������������������������������������������8
6 Operating and display elements ��������������������������������������������������������������������������8
6�1 LED states �����������������������������������������������������������������������������������������������������8
7 Operation �������������������������������������������������������������������������������������������������������������8
8 Technical data ������������������������������������������������������������������������������������������������������9
8�1 Data sheets ���������������������������������������������������������������������������������������������������9
9 Maintenance, repair and disposal ������������������������������������������������������������������������9
10 Approvals/standards ������������������������������������������������������������������������������������������9

3
UK
Preliminary note1
Notes on this document1.1
This document applies to devices of the type "AS-i power supply" (art� no�:
AC123x / AC124x)�
It is part of the device and contains information about the correct handling of the
product�
This document is intended for qualified electricians� These specialists are people
who are qualified by their training and their experience to see and to avoid possi-
ble hazards that may be caused during operation of the device�
Read this document before using the device� ►
Keep this document during the service life of the device� ►
Symbols used1.2
►Instructions
> Reaction, result
[…] Designation of pushbuttons, buttons or indications
→Cross-reference
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note
Warning signs used1.3
WARNING
Warning of serious personal injury�
Death or serious irreversible injuries may result�
CAUTION
Warning of personal injury�
Slight reversible injuries may result�
Produktspezifikationen
Marke: | IFM |
Kategorie: | Nicht kategorisiert |
Modell: | AC1244 |
