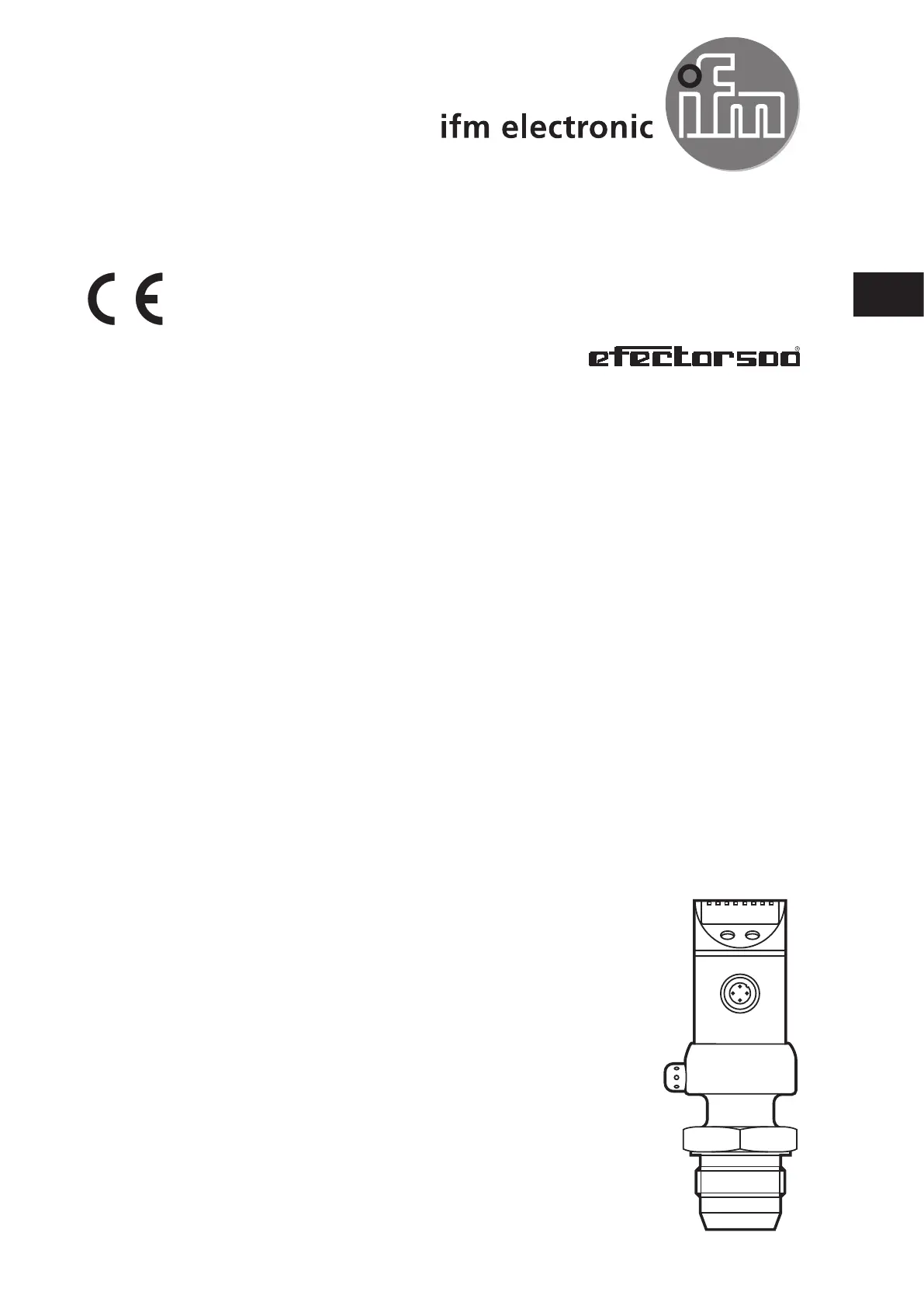

Seite 1/21
Operating instructions
Electronic pressure sensor
PI16xx
706056/00 06/2011
UK
2
Contents
1 Preliminary note 3 ���������������������������������������������������������������������������������������������������
1�1 Symbols used 3 ������������������������������������������������������������������������������������������������
2 Safety instructions 3 �����������������������������������������������������������������������������������������������
3 Functions and features 4 ����������������������������������������������������������������������������������������
3�1 Applications ���������������������������������������������������������������������������������������������������4
4 Function ���������������������������������������������������������������������������������������������������������������4
4�1 Processing of the measured signals 4 ��������������������������������������������������������������
4�2 Pressure monitoring/ analogue function 4 ��������������������������������������������������������
5 Installation������������������������������������������������������������������������������������������������������������6
6 Electrical connection 8 ��������������������������������������������������������������������������������������������
7 Operating and display elements 9 ��������������������������������������������������������������������������
8 Menu ������������������������������������������������������������������������������������������������������������������10
8�1 Menu structure 10 ���������������������������������������������������������������������������������������������
8�2 Menu explanation ��������������������������������������������������������������������������������������� 11
9 Parameter setting 12 ����������������������������������������������������������������������������������������������
9�1 Parameter setting general 12 ���������������������������������������������������������������������������
9�2 Configuring the display (optional) 14 ����������������������������������������������������������������
9�3 Setting the output signal 14 ������������������������������������������������������������������������������
9�3�1 Setting the output function 14 ������������������������������������������������������������������
9�3�2 Scaling the analogue value 15 ����������������������������������������������������������������
9�4 User settings (optional) 16 ��������������������������������������������������������������������������������
9�4�1 Zero-point calibration 16 ��������������������������������������������������������������������������
9�4�2 Setting the damping for the analogue signal 16 ��������������������������������������
9�5 Service functions 16 �����������������������������������������������������������������������������������������
9�5�1 Reading the min�/max� values for the system pressure 16 ����������������������
9�5�2 Reset all parameters to the factory setting 16 �����������������������������������������
10 Operation ���������������������������������������������������������������������������������������������������������17
10�1 Read the set parameter values 17 �����������������������������������������������������������������
10�2 Fault indication 17 ������������������������������������������������������������������������������������������
10�3 Cleaning of the filter cover 17 �������������������������������������������������������������������������
11 Scale drawing 18 �������������������������������������������������������������������������������������������������
3
UK
1 Preliminary note
1.1 Symbols used
Instruction
> Reaction, result
[…] Designation of buttons, switches or indications
Cross-reference
Important note
Non-compliance can result in malfunctions or interference�
2 Safety instructions
• Read this ducument before installing the unit� Ensure that the product is suita-
ble for your application without any restrictions�
• Non-adherence to the operating instructions or technical data can lead to
personal injury and/or damage to property
• Inallapplicationscheckcomplianceoftheproductmaterials(→chapter12
Technical data) with the media to be measured�
• ForunitswithcULusapprovalandthescopeofvaliditycULus→chapter6
Electrical connection�
12 Technical data 18 ��������������������������������������������������������������������������������������������������
12�1 Setting ranges 20 �������������������������������������������������������������������������������������������
13 Factory setting 21 �������������������������������������������������������������������������������������������������
