Seite 1/22

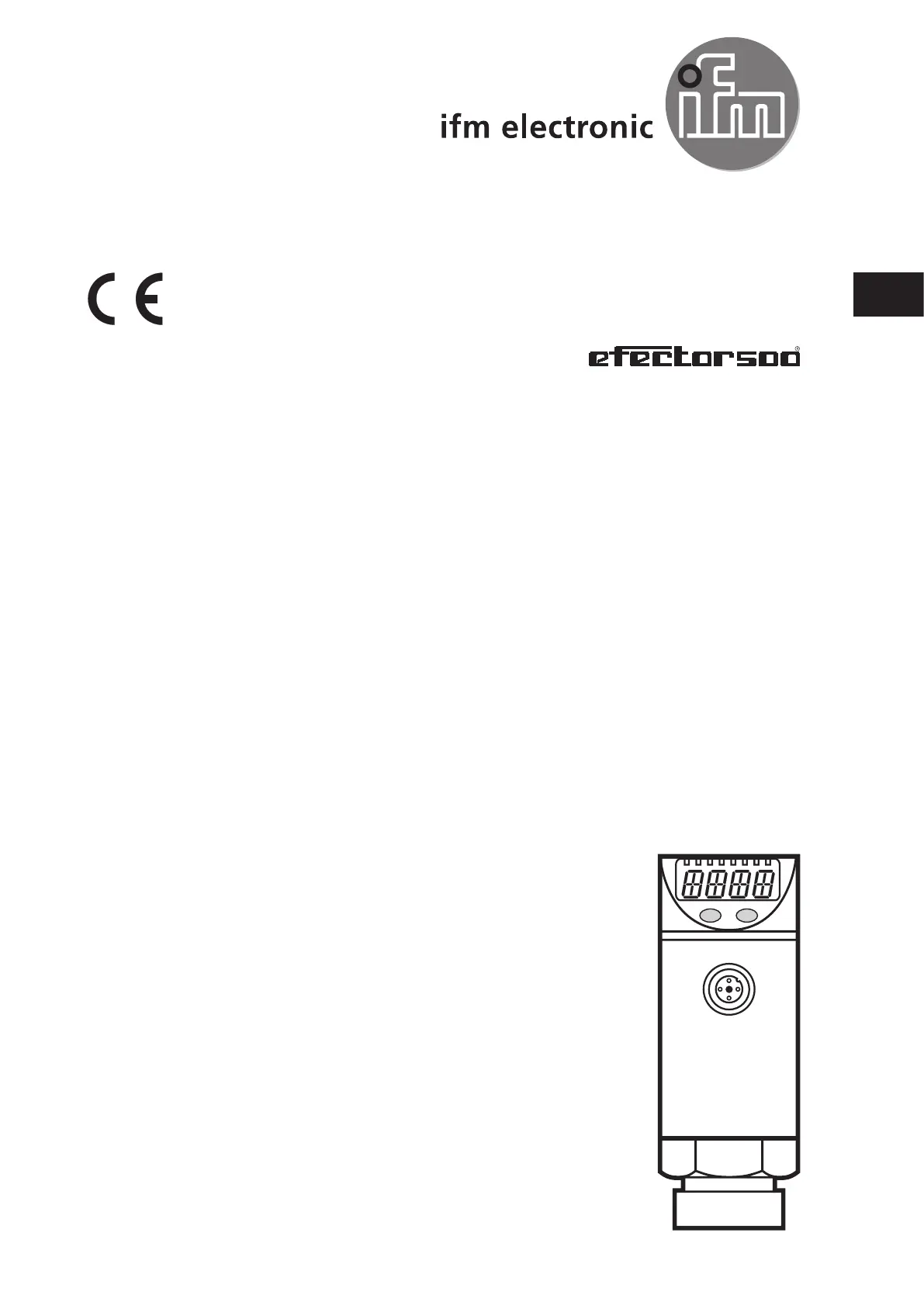

Operating instructions
Combined pressure sensor
PN22xx
704829 / 00 08 / 2010
UK

2
Contents
1 Preliminary note ���������������������������������������������������������������������������������������������������3
1�1 Symbols used ������������������������������������������������������������������������������������������������3
2 Safety instructions �����������������������������������������������������������������������������������������������3
3 Function and features ������������������������������������������������������������������������������������������4
4 Function ���������������������������������������������������������������������������������������������������������������5
4�1 Communication, parameter setting and evaluation ���������������������������������������5
4�2 Switching function ������������������������������������������������������������������������������������������6
4�3 Analogue function �����������������������������������������������������������������������������������������6
5 Installation������������������������������������������������������������������������������������������������������������8
6 Electrical connection ��������������������������������������������������������������������������������������������8
7 Operating and display elements ��������������������������������������������������������������������������9
8 Menu ������������������������������������������������������������������������������������������������������������������10
8�1 Menu structure ���������������������������������������������������������������������������������������������10
8�2 Explanation of the menu ������������������������������������������������������������������������������ 11
9 Parameter setting ����������������������������������������������������������������������������������������������12
9�1 Parameter setting general ���������������������������������������������������������������������������12
9�2 Setting the output signal ������������������������������������������������������������������������������14
9�2�1 Setting the output function ������������������������������������������������������������������14
9�2�2 Setting the switching limits �����������������������������������������������������������������14
9�2�3 Scaling the analogue value ����������������������������������������������������������������14
9�3 User settings (optional) ��������������������������������������������������������������������������������15
9�3�1 Setting the unit of measurement for the system pressure ������������������15
9�3�2 Configuring the display �����������������������������������������������������������������������15
9�3�3 Zero-point calibration ��������������������������������������������������������������������������15
9�3�4 Setting the delay time for the switching outputs ���������������������������������15
9�3�5 Setting the output polarity �������������������������������������������������������������������16
9�3�6 Setting the damping for the switching outputs ������������������������������������16
9�3�7 Setting the damping for the analogue output ��������������������������������������16
9�4 Service functions �����������������������������������������������������������������������������������������16
9�4�1 Reading the min�/max� values for the system pressure ����������������������16
10 Operation ���������������������������������������������������������������������������������������������������������17
10�1 Read the set parameter values �����������������������������������������������������������������17
10�2 Fault indication ������������������������������������������������������������������������������������������17

3
UK
1 Preliminary note
1.1 Symbols used
►Instruction
> Reaction, result
[…] Designation of buttons, switches or indications
→Cross-reference
Important note
Non-compliance can result in malfunctions or interference.
2 Safety instructions
• Read this document before installing the unit. Ensure that the product is suit-
able for your application without any restrictions.
• Non-adherence to the operating instructions or technical data can lead to
personal injury and/or damage to property.
• In all applications check compliance of the product materials ( chapter 12 →
Technical data) with the media to be measured.
• Use in gases at pressures > 25 bar only after contacting the manufacturer ifm.
For units with cULus approval and the scope of validity cULus:
The device shall be supplied from an isolating transformer having a secondary
Listed fuse rated as noted in the following table.
Overcurrent protection
Control-circuit wire size Maximum protective device rating
Ampere
AWG (mm2)
26 (0.13) 1
24 (0.20) 2
22 (0.32) 3
20 (0.52) 5
18 (0.82) 7
16 (1.3) 10
The Sensor shall be connected only by using any R/C (CYJV2) cord, having suitable ratings.
11 Scale drawing ..................................................................................................18
12 Technical data ..................................................................................................18
12.1 Setting ranges ...........................................................................................20
13 Factory setting .................................................................................................22
