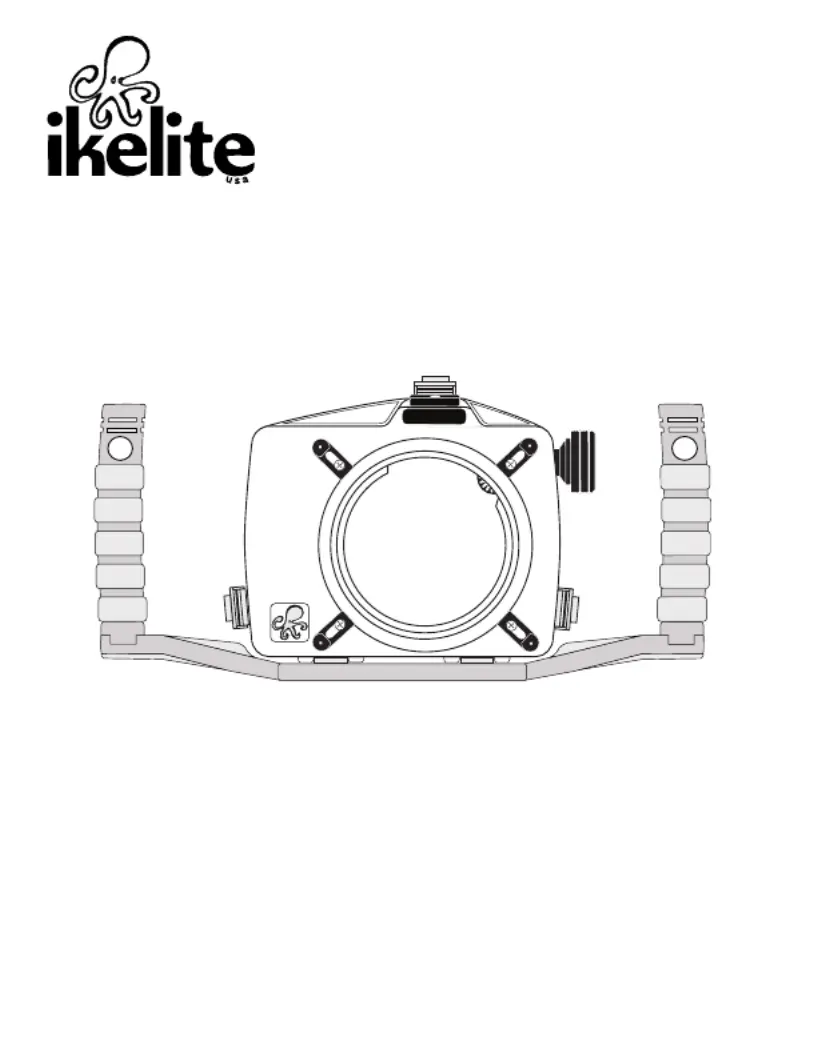

IKELITE

SLR-DC Housing

i n s t r u c t i o n m a n u a l

#6801.70 for the Nikon D7000

Width ................10 in. (250mm) including controls

..........................13.7 in. (348mm) with Tray and Handles

Height ..............7.0 in. (178mm) including controls

..........................7.3 in. (185mm) with Tray and Handles

Depth ................6.5 in. (165mm) including controls

Weight ..............5.5 lb (2495g) housing only

..........................7.8 lb (3538g) housing with tray & handles

Buoyancy ..........Neutral to slightly negative in fresh water (dependent on

..........................choice of lens and lens port)

Size and Weight

Table of Contents

Product Registration ........................................................P. 3

......................................................P. 3

..................................................................P. 3

Parts of the Housing / Size and Weight ..........................P. 4

Initial Camera Setup........................................................P. 6

Opening the Housing ......................................................P. 6

Attaching Camera to Housing Tray ................................P. 7

Setting the Conversion Circuitry Strobe ID Switch..........P. 7

Attaching the Flash Connection for External Strobes ....P. 8

Installing Camera in Housing ..........................................P. 8

Closing the Housing ........................................................P. 9

Installing Zoom Clamp and Gear Sleeve ........................P. 10

Installing the Port / Lens Ports ........................................P. 15

Housing Conversion Circuitry..........................................P. 17

Flash Dial / DS50, DS125 Substrobe Compatibility ........P. 18

Using Non-Ikelite or Ikelite Non-DS Substrobes ............P. 18

..........................................................................P. 19

Pre-Dive Your System ....................................................P. 19

Lubricants ........................................................................P. 19

........................................................P. 20

....................................................P. 22

....................................P. 22

Accessory Mounting Points / EV-Controller Use ............P. 22

................................................................P. 23

Photo Tips ......................................................................P. 26

Storing the Housing ........................................................P. 27

....................................................P. 27

........................................................P. 27

Returning Products for Service ......................................P. 28

- SLR-DC Housing

- Envelope containing tray

installation hardware,

maintenance kit, and extra

control end tips.

Package Contents

- Aluminum Tray & Dual Handles

- Silicone Lubricant

- Std. Zoom Clamp & Sleeve Set

- #5509.28 Large Diameter Zoom

Clamp & Sleeve Set

Product Registration

Please take a moment to fill out the online Ikelite Product Registration

form at http://www.ikelite.com/forms/regForm.htm.

This product has been water pressure tested at the factory and is depth

rated to 200 ft. (60m). Thoroughly inspect and immerse the empty

housing completely in water before installing a camera. If any fogging

occurs or droplets of water enter the housing, do not install a camera.

Clean the housing main o-ring and retest to make sure that it is

watertight. Refer to the Troubleshooting section, page 20.

We suggest that you read this instruction booklet thoroughly before use

to have a full understanding of where each camera control is located,

and what function each control provides. Please read your camera

manual thoroughly to have a full understanding of each camera function.

If you are new to underwater photography, be sure to read the Photo

Tips section.

Due to the power required to operate the camera and LCD screen start

each dive with a fully charged camera battery.

Preparation

Thank you for your purchase of Ikelite equipment. Please read this

instruction manual completely before attempting to operate or dive with this

product.

Produktspezifikationen

Marke:	Ikelite
Kategorie:	Nicht kategorisiert
Modell:	6801.70
Gewicht:	2400 g
Material:	Polycarbonat
Abmessungen (BxTxH):	250 x 160 x 180 mm
Kompatibilität:	Nikon D7000
Wasserdicht bis:	60 m
