ENVIRONMENTAL REFERENCE STANDARD SERIES
INSTALLATION GUIDE
INSTALLATION GUIDE
For Models 840/640/540/440/360
Manuel de l’utilisateur de la série ERS
ERS Series Installation/Owner’s Manual
1
Congratulations!
You have purchased a high-performance speaker system that
will give years of service and provide you with unlimited
musical enjoyment. The ERS (Environmental Reference
Standard) Series is specifically designed for flush mounting in
your home or office. Five models are available – ERS 840, 640,
540, 440, and 360 – to match your application and budget. The
ERS 360 is a unique design with a circular frame for ceiling
mounting. All models come with our easy-mount frame which,
along with the perforated metal grille, can be painted to match or
complement any room decor.
We recommend you read these instructions thoroughly before
attempting to install and operate your Infinity ERS Series wall-
mount speakers.
Please save these instructions for future reference. Also, save
your bill of sale to protect your purchase and aid us with any
service-related questions.
Unpacking
1. Unpack and carefully check each speaker. If you suspect
damage from transit, report the problem immediately to your
dealer and/or delivery service.
2. Save the shipping cartons and packing materials for future use.
3. Verify that the package includes two sets of the following items
(one for each speaker), as shown in Figure 1 (on next page):
• Speaker/Frame Assembly
• Grille
• Paint Mask (not shown)
• Mounting Template (not shown)
• Infinity Logo (self-adhesive)
2

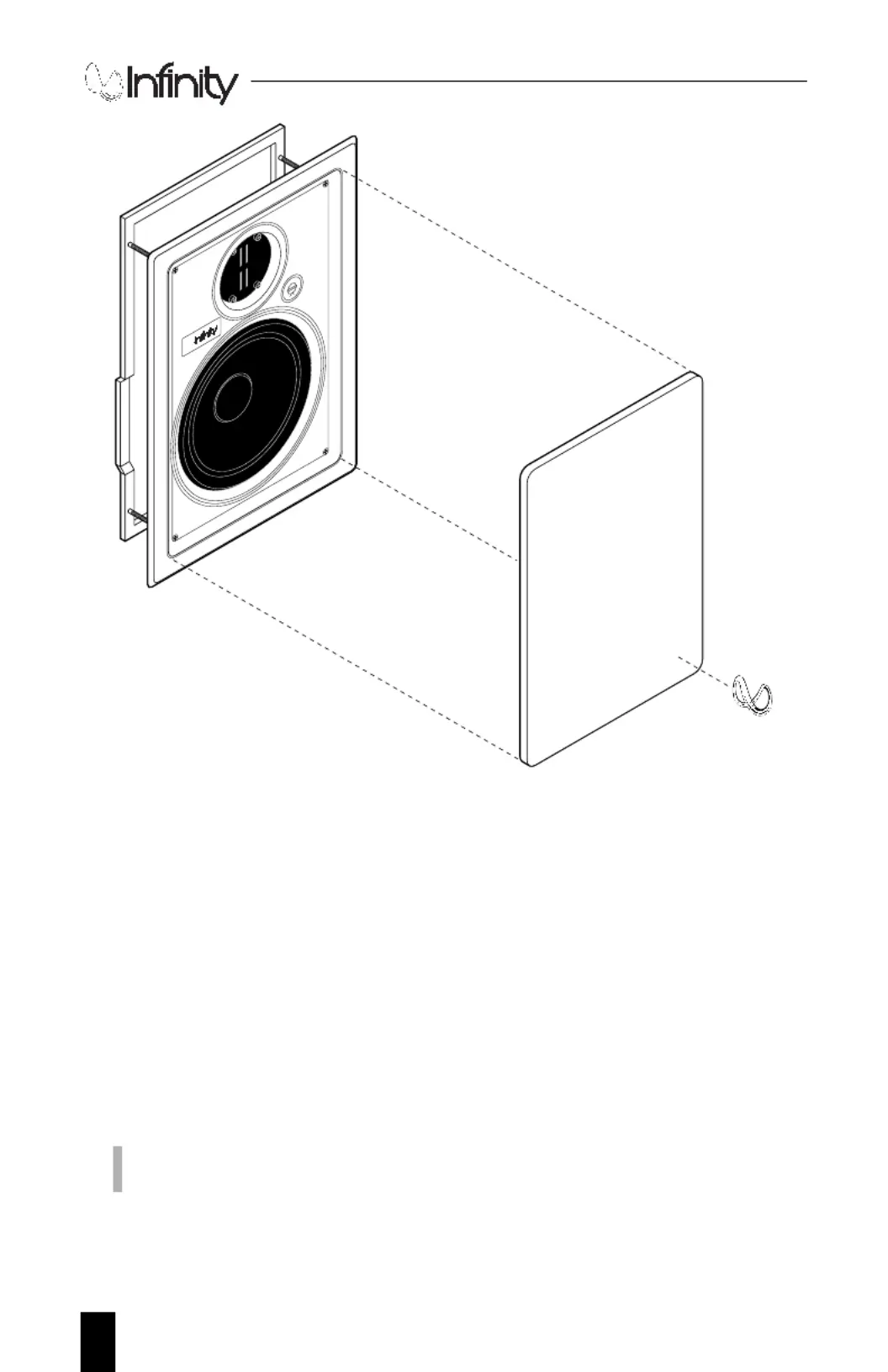

Figure 1. Drawing shows assembly procedure (ERS 840 is shown).
Planning the Installation
When surveying potential installation sites for ERS Series
speakers, keep the following points in mind:
• Allow at least a two-inch clearance in all directions behind the
wallboard. The assembly is designed for easy horizontal or
vertical mounting between wall studs.
NOTE: Due to its size, the ERS 840 can only be mounted vertically.
It will not fit horizontally between standard 16" stud-centers.
• For the best stereo image, position the speakers not less than
seven to ten feet apart.
Speaker And
Frame Assembly
Grille
Infinity Logo
T
w
e
e
t
e
r
L
e
v
e
r
MaxMin
