PACKAGE CONTENTS
• In-wall outlet with USB
• White decora-style wall plate
• Wall plate screws (2)
• Outlet mounting screws (2)
• Quick Setup Guide
FEATURES
• 2 grounded outlets let you plug in electronics and
appliances
• USB (5V/2.4A) and USB-C (5V/3A, 9V/2.22A) ports
charge USB-enabled electronic devices
• 32W total USB power quickly charges your devices
• Replaces standard duplex outlets
• Fits your existing decora-style outlet cover
Professional installation recommended
SAFETY
Warnings:
• RISK OF ELECTRIC SHOCK — Use only in dry
locations and only indoors.
• DO NOT use with any aquarium equipment.
• DO NOT install in an outlet that is not grounded.
Notes to the installer:
• This device must be installed in accordance with
national and local electrical codes.
• To prevent severe shock or electrocution, always
turn power o at the service panel before working
with wiring.
• This device should be used with copper or
copper-clad wire. DO NOT use with aluminum
wire.
• DO NOT install this device into a shallow wall box.
The wall box must be deep enough to house the
charger outlet. If the box is too shallow, the
charger outlet will not t securely into the wall.
• Professional installation is not a requirement but is
highly recommended
INSTALLING THE OUTLET
Warning: DISCONNECT POWER. Failure to do so
can result in severe injury or death.
1 Make sure that you disconnect power to the
circuit by removing the fuse from the circuit or
turning o the circuit breaker.
2 Remove the wall plate and mounting screws
that cover the old outlet. Save the screws.
3 Carefully remove the existing outlet from the
wall box.
4 Disconnect the wiring from the old outlet. Note
the wire positions.
5 Connect the wires to the new outlet:
• Black lead attaches to the hot wire(s)
• White lead attaches to the neutral wire(s)
• Green lead attaches to the ground wire(s)
Note: Installers should use previous wire positions as
a guide.
Hot (black)
Neutral (white)
Ground (green)
QUICK SETUP GUIDE
In-Wall Outlet
With USB
NS-HW1A1C22
Before using your new product, please read these instructions to prevent any damage.

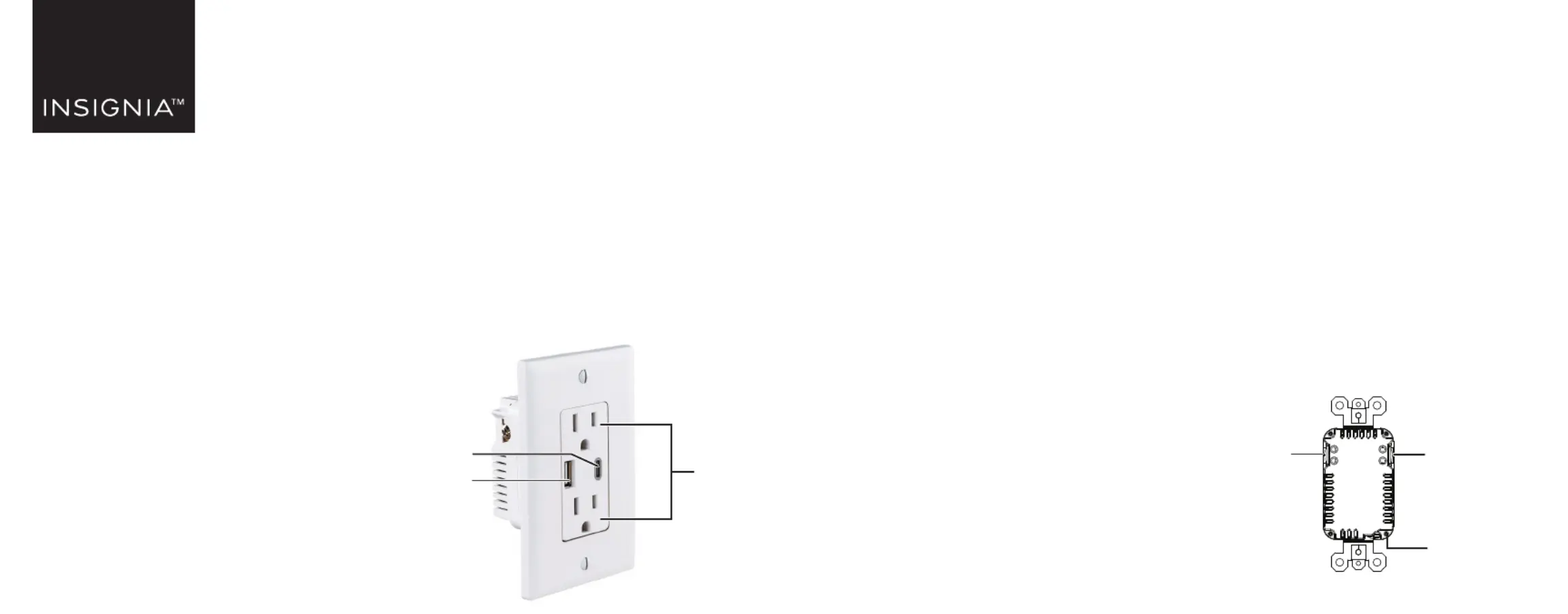

Electrical outlets
USB-C port
USB port
V1 ENGLISH 22-0835
SPECIFICATIONS
Dimensions (H × W × D)
• With plate:
4.7 × 3 × 1.9 in. (120 × 76 × 47.5 mm)
• Without plate:
4.2 × 1.7 × 1.9 in. (106 × 43 × 47.5 mm)
Electrical
• Receptacle rating: 15A, 125VA
• USB rating: USB (5V/2.4A) and USB-C (5V/3A,
9V/2.22A) 32W total output
• Line voltage: 125V AC @ 60Hz
• Wire terminals: #14-#12 AWG
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 877-467-4289
(U.S. and Canada)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2023 Best Buy. All rights reserved.
Insert the straightened wire into either of the
two holes of the hot and neutral locations on
the side of the outlet. Power passes between
the two corresponding holes for pass-thru
wiring. Attach the ground wire to the bottom of
the outlet.
6 Tighten every screw
and make sure that no
bare copper wire is
exposed.
7 Carefully insert the
outlet into the wall box.
8 Secure the outlet to the
wall box with the two
long screws (provided).
9 Secure the wall plate to
the outlet with the two
short screws (provided).
10 Restore power by
replacing the fuse or
turning on the circuit
breaker. The outlet is
ready to use.
USING THE OUTLET
• To charge USB devices (like mobile phones or
tablets), plug USB cables into the USB ports on
the outlet and into the USB ports on the devices.
• To power electrical devices (like lamps or
laptops), plug them into the electrical outlets.
