Seite 1/2
6 F E Lift the seat bottom ( ) and turn it right side up, then align the hole in the riser mechanism ( ) with the
center support post (C) and press the seat down until it clicks into place.
7 H G Attach the left arm ( ) and right arm ( ) to the seat bottom (F L) by using four 1/4" × 1" screws ( ) and
tighten the screws fully using the Allen wrench ( ).J
8 I L Attach the arms to the seat back ( ) with four 1/4" × 1" screws ( ) then tighten the screws fully using the
Allen wrench (J).
9 M After tightening all screws, cover the screw holes with the arm caps ( ).
CAUTION: Make sure that the chair back/seat assembly and chair base are securely connected and that all
bolts are tightened before sitting in the chair.
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
FEATURES
• Seat height adjusts to t your body
• Swivel and tilt mechanism lets you customize the chair to your preferred position
• Sturdy, 5-pointed star base with wheels makes it easy to move around
• Black design with white trim grants a modern, sleek look
• Made with quality materials for dependable stability
QUICK SETUP GUIDE
Essential PC
Gaming Chair
NS-PCGV30
Quick Setup
Guide
Allen
wrench
Wheels (5) Star base Center
support post
Seat bottom
5/16" × 3/4"
screw (4)
Center
post cover
Riser mechanism
Right arm Left arm
Seat back
1/4" × 1"
screw (8)
Arm caps (8)
Spare parts:
5/16" × 3/4" screw
1/4" × 1" screw
Arm cap

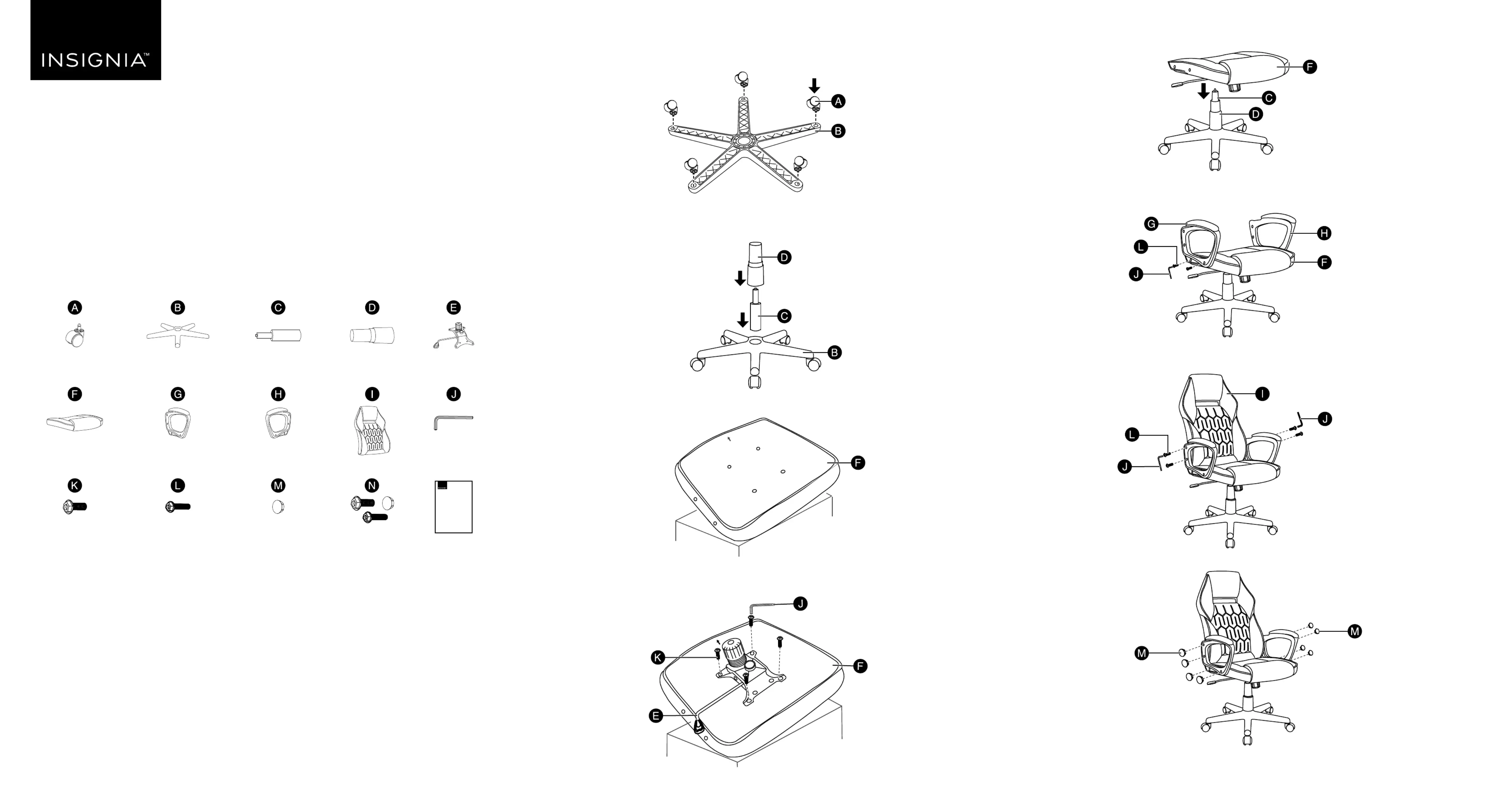

ASSEMBLING YOUR CHAIR
1 B Turn the star base ( ) upside down on carpet or a soft towel.
2 A Insert the wheel ( ) posts into the holes at the ends of the star base arms until they click into place.
3 C Turn the base right side up, then insert the bottom of the center support post ( ) into the hole in the center
of the star base ( ). Put the center post cover ( ) on the center support post (B D C).
4 F Turn the seat bottom ( ) upside down and place it on a padded box or small stool to support it.
5 E F Align the riser mechanism ( ) on the bottom of the seat ( ) and attach it to the seat with four
5/16" × 3/4"
screws ( ). Tighten the screws with the Allen wrench ( ).K J
FRONT
FRONT
V3 ENGLISH 23-0911
SPECIFICATIONS
• 41.34-45.08 × 24.02 × 26.38 in. (105-114.5 × 61 × 67 cm)Dimensions (H×W×D):
• 29.98 lbs. (13.6 kg)Net weight:
• Maximum weight allowed: 275 lbs. (124.7 kg)
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2023 Best Buy. All rights reserved.
IMPORTANT SAFETY INFORMATION
Warnings:
• Fall hazard - Do not stand on the chair or attempt to use the chair as a ladder.
• Choking hazard - Be sure to properly dispose of all plastic packing bags.
• Fall hazard - Be careful not to lean the chair back so far that it causes the chair to fall backward or slip out from under you or put all of your
weight on the front of the chair, causing it to fall forward.
Caution:
• Make sure that the casters/wheels are fully inserted into the base of the chair.
• Always keep the base of the chair completely on the oor.
• Periodically make sure that the bolts holding the base and back of the chair in place are securely tightened.
Safety information
• Maximum weight capacity: 275 lbs. (124.7 kg).
• Read the Quick Setup Guide completely before assembly.
• Remove all parts from the carton and make sure that all parts are included prior to assembly.
• Assemble the chair on carpet or a soft towel to prevent scratching the chair.
• This chair is designed for sitting on the seat only and nothing else.
• Do not stand on or use as a step ladder.
• Do not sit on the armrests.
• This chair is designed for seating one person at a time.
• Tighten all screws, knobs, bolts, and parts rmly, otherwise do not use.
• If any parts are missing, damaged, or worn, stop using immediately.
• Do not use power tools.
18.9 in. (48 cm)
19.09 in. (48.5 cm)
24.02 in. (61 cm)
17.52 - 21.26 in.
(44.5 - 54 cm)
41.34 - 45.08 in.
(105 - 114.5 cm)
Lift and hold the handle then
you can adjust the height.
Height adjustment
105°
120°
Enable tilt: Pull out the lift lever.
Disable tilt: Push in the lift lever.
Tilt enable/disable
tight
loose
Tilt tension adjustment
Loosen tension: Counterclockwise.
Tighten tension: Clockwise.
26.38 in. (67 cm)
To raise the height of the chair, lift
the lever on the right side while not
sitting in the chair. To lower the
height of the chair, lift the same
lever while sitting in the chair.
USING YOUR CHAIR
To lock the back of the
chair, push the lift lever
backward. To unlock the
back, pull the lift lever
forward.
