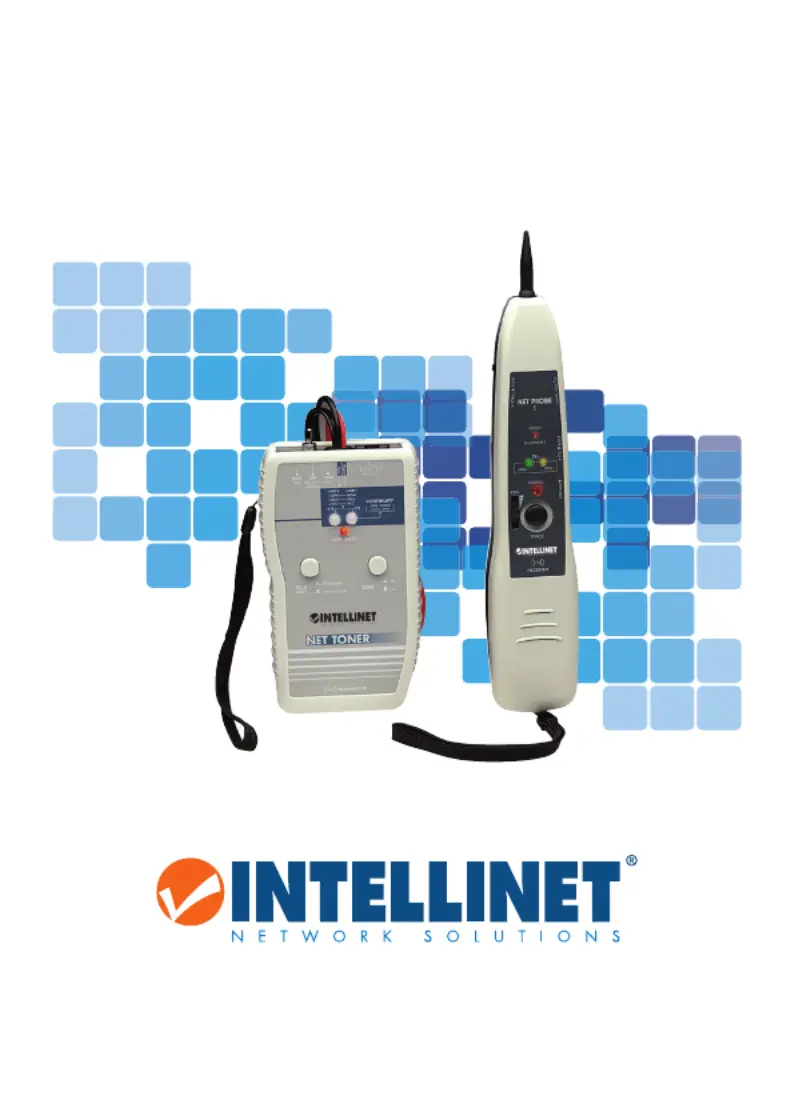

Net Toner and Probe Kit

User Manual

Model 515566

intellinetnetwork.com

Net Toner and Probe KitUser Manual

In testing leads and modular cables for individual-wire tests or modular-jack tests, this

handy device helps you attain the quick, reliable results you need in order to get — and

keep — your wired systems up and running.

ADDITIONAL FEATURES: Tests datacom, telecom, security, video and audio networks

• Two-position switch for single or multi-tone signal • LEDs for line polarity, continuity

and voltage • Enhanced talk battery mode provides power for voice communications

over inactive pairs • Replaceable plastic tip to prevent accidental shorts • Trace or

identify wire or cables in a bundle or group • Alligator clips, RJ45 jack, RJ12 plug, optional

F-connector • Lifetime Warranty Electric Shock Risks & Precautions • Avoid using this

device in wet, damp or excessively humid environments. • Before using the test lead or

accessory, check that it is clean and dry, and that the insulation is in good condition. •

Do not open the battery compartment when test leads are connected to a live circuit, or

when the unit is switched on. • Never connect the Toner or Net Probe to a live wire from

a non-compatible telephone/network system. Doing so may damage the tracer and/or

the equipment. Live Circuit Warnings Acceptable voltage: the tester is designed to bear

voltage conditions commonly found on live telephone wires: It can safely be connected

to wires carrying 48 V DC or less at less than 80 mA, or 24 V AC.

UNACCEPTABLE VOLTAGE: Do not connect the tester to wires bearing over 48 V DC

TABLE OF CONTENTS

Operation 3 . . . . . . . . . . . . . . . . . . . . . . . .

Sending/Tracing a Tone . . . . . . . . . . . . . . . . . . . . . . . . 3

Supplying Talk Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Testing Cable Continuity 3. . . . . . . . . . . . . . . . . . . . . . . .

Testing Terminated Coax Cables 4 . . . . . . . . . . . . . . . . .

Testing Unterminated Coax Cables 4 . . . . . . . . . . . . . . .

Testing Polarity: Identifying the Tip and Ring 4 . . . . . . . .

Verifying the Line 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Net Probe — Tone Tracing . . . . . . . . . . . . . . . . . . . . . . . 4

Line Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Other Functions/Components 5 . . . . . . . . . . . . .

5Replacing the Tip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing the Battery 6 . . . . . . . . . . . . . . . . . . . . . . . . . .

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . 6

Net Toner ....................................6

Net Probe 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Environmental 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Package Contents 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Notes 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Additional Information 8 . . . . . . . . . . . . . . . . .

Net Toner and Probe Kit User Manual

or at 80 mA or 24 V AC or higher. Do not connect to live AC circuits: doing so causes

an extreme shock hazard and damages the tester. When connecting the tester to a

previously untested circuit, the tester should always be in OFF/VOLT mode (the middle

switch on the top switched to the middle position).

Operation

Sending/Tracing a Tone

1. Set the toggle switch on the Net Toner to the TONE HI-LO position.

2. Plug the cable to be checked into the Tone/Cont jack of the tester, or plug the cable

with alligator clips into the Tone/Cont jack.

3. Connect the tester to the cable to be traced using the RJ45 jack, the red alligator clip

on the RJ45-to-RJ11 patch cable, or the coaxial F connector. To strengthen the tone

signal, connect the black alligator clip to a ground (however, if using the RJ45 jack to

connect to the cable being traced, this will not be possible).

4. Use the Net Probe to nd the cable you have connected to. When the tip of the Net

Probe touches the right cable, the tone will be at its loudest and the Signal LED will

light. (You can turn the volume down as the tip gets nearer to the right cable to make

it easier to distinguish between the cables the Net Probe tip touches.)

5. Use the Tone button on the Net Toner to change the tone to the HI (down) or LO (up)

position.

CAUTION: Do not connect to an active AC circuit over 24 V in this mode.

Supplying Talk Power

The Net Toner has a feature that allows users to communicate using telephone test sets,

even when a circuit is dead.

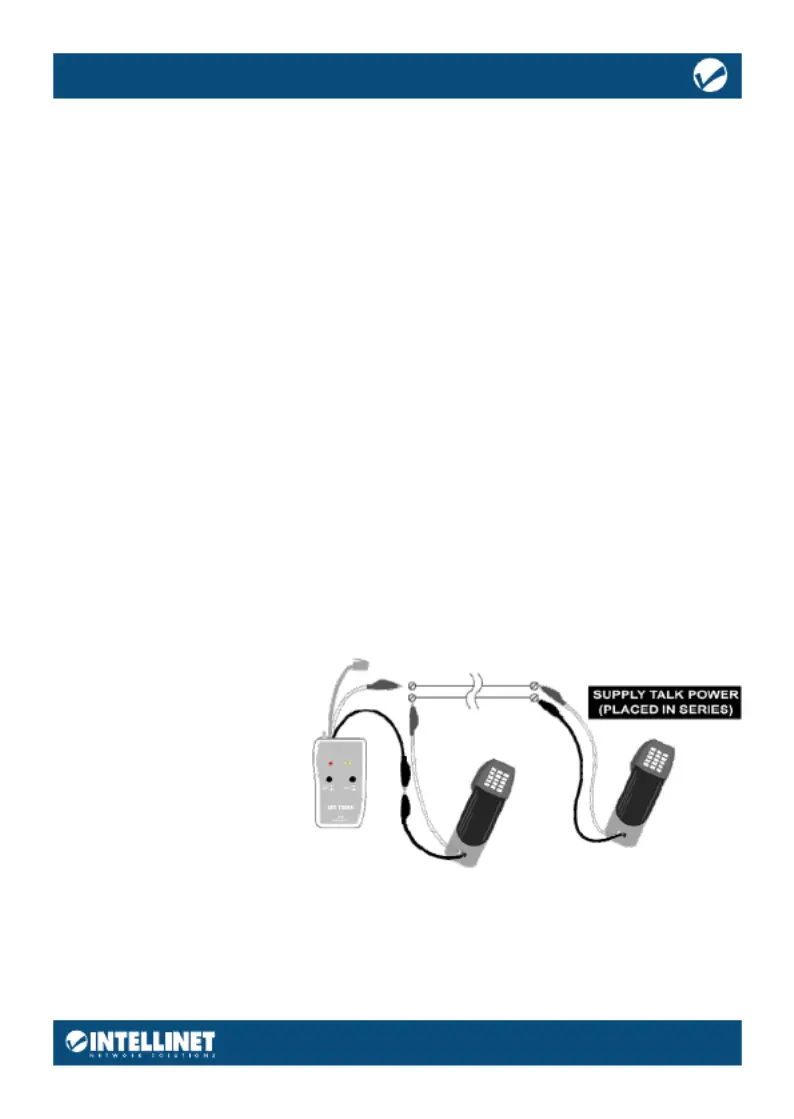

1. Using the test leads, connect

the Net Toner and a telephone

test set to the inactive circuit,

in series, as illustrated.

2. Flip the toggle switch on the

Net Toner to the Cont/ Talk

position.

3. Set the TALK BATT button

to the Enhanced (down)

position. This provides

additional battery power to

enable voice communication over the inactive circuit. You should now be able to

communicate using the telephone test sets.

Testing Cable Continuity

NOTE: Before testing for this, check line polarity to ensure that the line is not powered.

1. Connect the red and back alligator test leads to the cable you want to test.

2. Flip the toggle switch on the Net Toner to the CONT/TALK position.
