M6

Attention:

e

M6

19” FLAT PACK

RACK CABINET

ASSEMBLY

INSTRUCTIONS

North & South America

IC Intracom Americas

550 Commerce Blvd.

Oldsmar, FL 34677

USA

Asia & Africa

IC Intracom Asia

4-F, No. 77, Sec. 1, Xintai 5th Rd.

Xizhi Dist., New Taipei City 221

Taiwan

Europe

IC Intracom Europe

Löhbacher Str. 7

D-58553 Halver

Germany

© IC Intracom. All rights reserved. Intellinet is a trademark of IC Intracom, registered in the U.S. and other countries. For specifications, go to intellinet-network.com. For warranty information, go to intellinet-network.com/warranty.

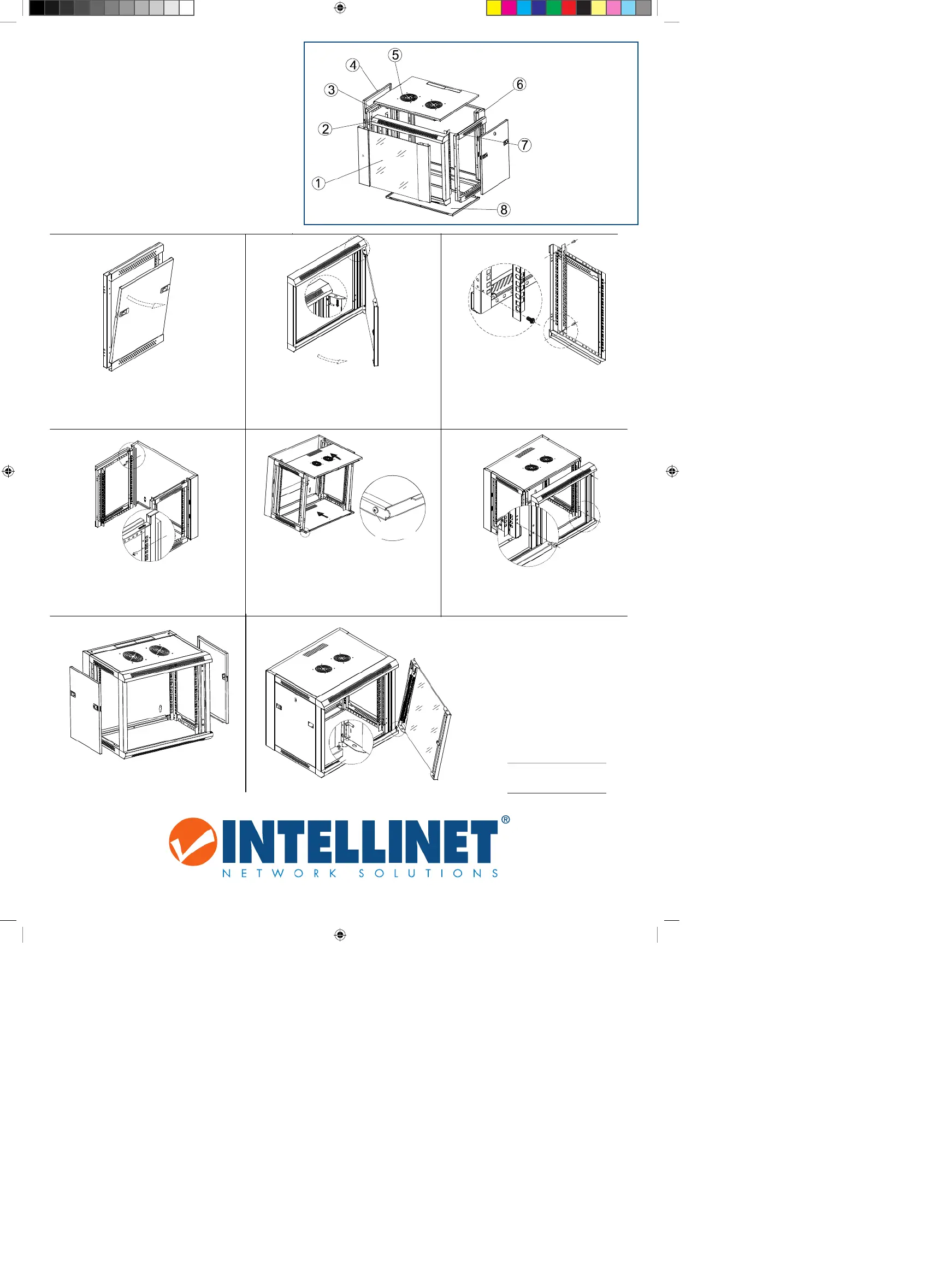

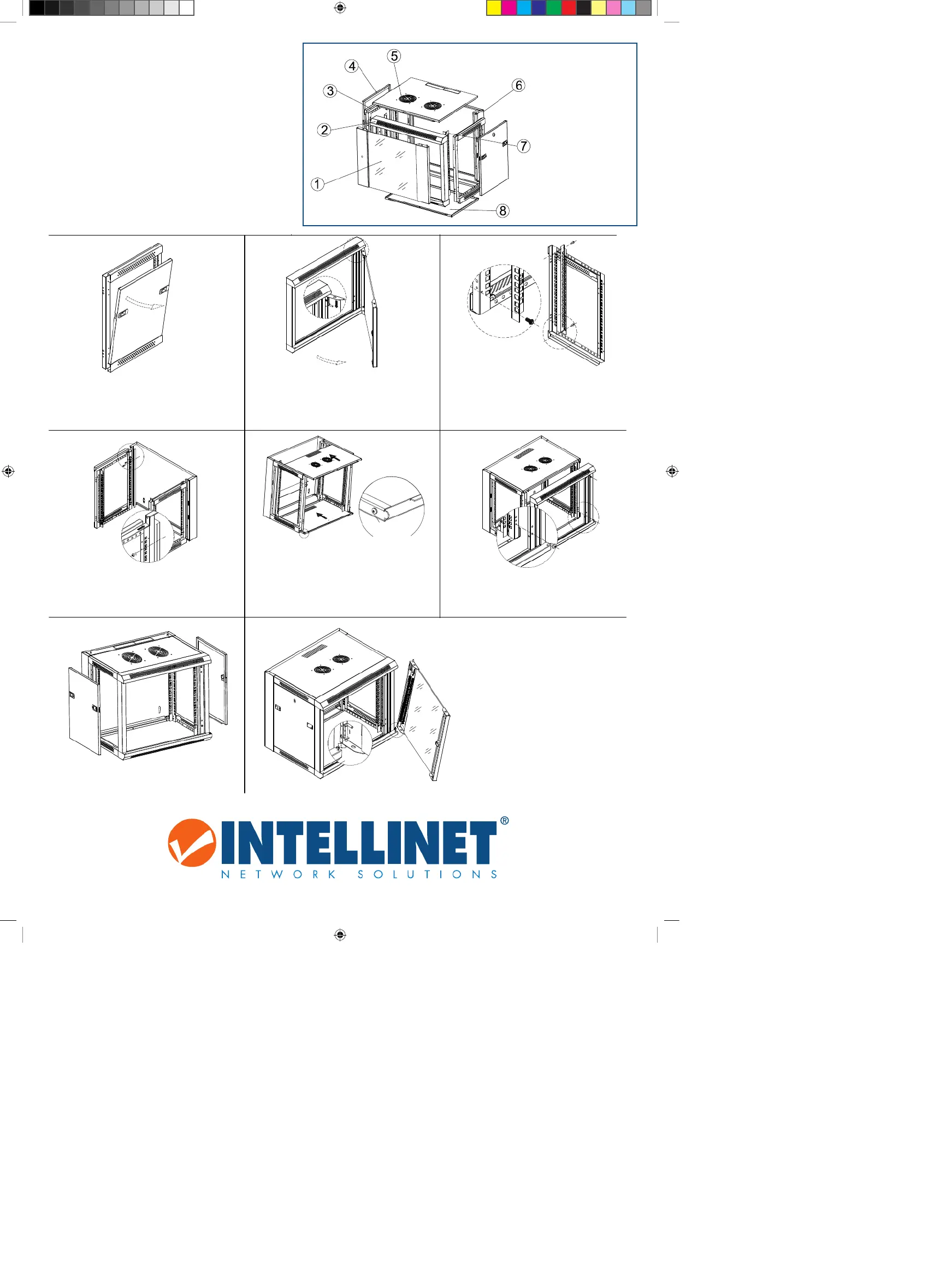

1 Front door

2 Front frame

3 Side frame x2

4 Side panel x2

5 Top

6 Back frame

7 Mounting rail x2

8 Bottom

Remove the side panels () from the side 4

frames () and set them aside.3

1

2

Use the included key to pull open the

door () and remove it from the front 1

frame () by pushing down on the latch.2

3

Use the 4 included M5 screws to attach a

mounting rail () to each side frame ().73

4

Use 4 of the included M6 screws (use 6 for

larger units) to attach each of the 2 side

frames () to the back frame ().36

5

Slide the top () and the bottom () into 58

place.

Note: screws

to the front

6

Use 4 of the included M6 screws (use 6 for

larger units) to attach the front frame () 2

to the assembly.

7

Install the 2 side panels ().4

8

Reverse Step 2 by inserting the lower

door latch into the frame and then

pushing down on the upper door latch

to install the front door (). Note: Once 1

the unit is assembled, check that all

corners are square to ensure that the

door opens and closes properly.

Wallmount Cabinet instructions ICG.indd 17/30/14 2:22 PM
