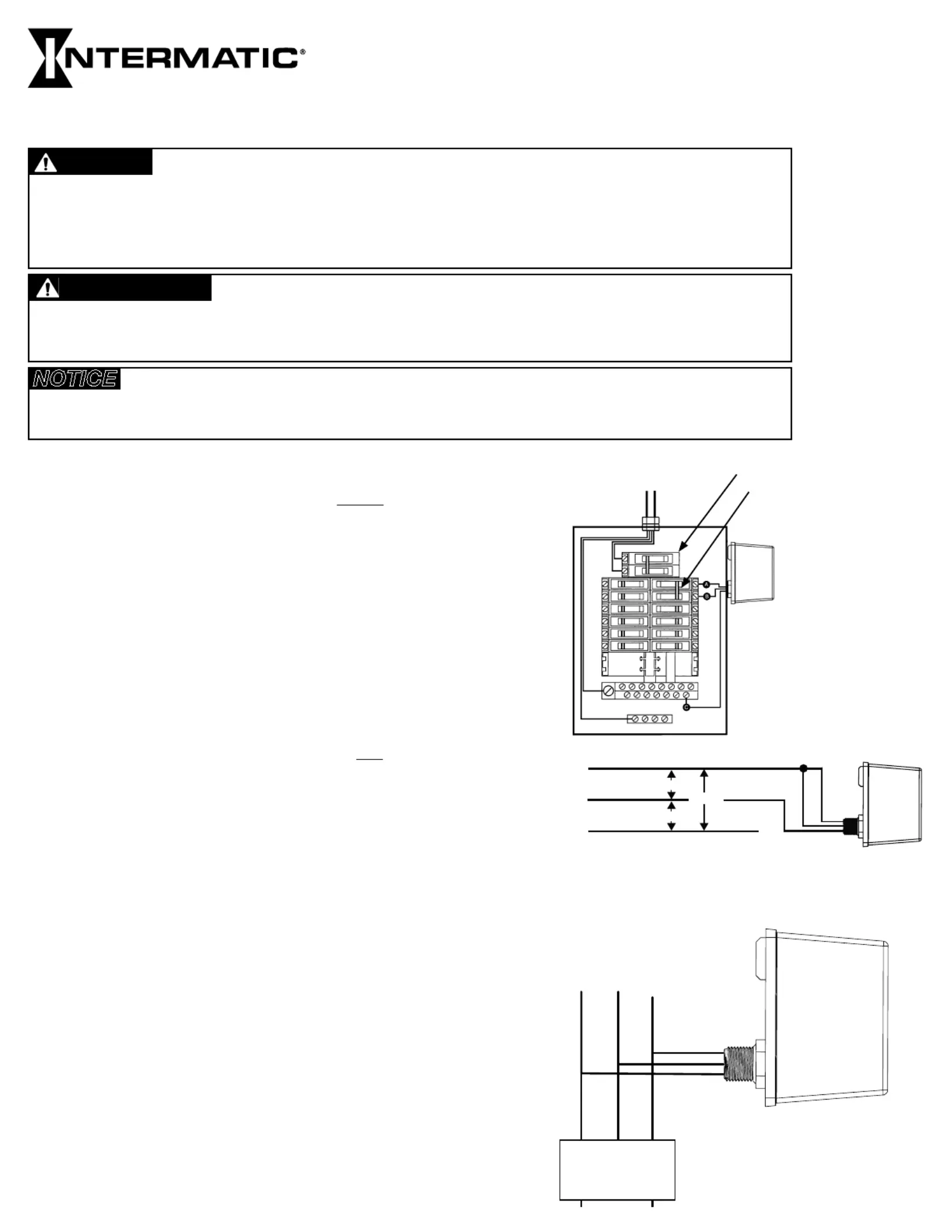

Seite 1/4

Main Breaker

2-Pole, 20 A circuit

breaker shown

A=Black (Line)

B=Black (Line)

C=Neutral/Grounded (White)

Type 2 Installation

Type 1 installation:

A typical installation of a type 1 SPD will be connected between the

secondary of the service transformer and the line side of the service

panel. This installation is intended to be installed overcurrent without

protection to the SPD.

1. Determining location:

• Ensure conductor lengths are as short and straight as

possible for best performance. Do not coil excess wire. The

SPD functions best if all bends in wires are rounded, ideally

to a 4” radius. Hard 90 degree bend will reduce efﬁciency.

Cut all leads to the correct length. Do not coil excess leads.

• Install appropriate weatherproof ﬁttings if the unit is to be

mounted outside.

2. Ensure all mounting and connections are correct and secure.

Once energized the green indicator LED will be ON and visible

through the cover of the SPD.

Type 2 installation:

A typical installation of a type 2 SPD will be connected to the load side

of the service panel and is intended to be installed overcurrent with

protection to the SPD.

1. Determining location:

• Ensure conductor lengths are as short and straight as

possible for best performance. Do not coil excess wire. The

SPD functions best if all bends in wires are rounded, ideally

to a 4” radius. Hard 90 degree bend will reduce efﬁciency.

Cut all leads to the correct length. Do not coil excess leads.

• Install appropriate weatherproof ﬁttings if the unit is to be

mounted outside.

2. Connect the white wire from the SPD to the neutral bus bar in

the panel as shown.

• Connection may also be made to the neutral/ground bus bar

if panel does not have a separate ground bus bar.

3. Connect the two black wires to a circuit breaker as shown.

For best performance from SPD the maximum recommended

circuit breaker size of 240 VAC,up to 30 A, 2-pole should be

used.

4. Ensure all mounting and electrical connections are correct and

securely fastened. Once energized the green indicator LED will

be ON and visible through the cover of the SPD.

AC Disconnect Installation

1. To be installed with over current protection up to 60 A.

Maintenance:

• AC Voltage SPD:

• Periodically check SPD to ensure green indicator LED is ON.

If green LED is OFF, protection has diminished and the SPD

should be replaced immediately.

INSTALLATION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS

Model AG3000

Type 1 or Type 2 Surge Protection Device (SPD)

• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.

• Intended for indoor or outdoor use.

• Installation and/or wiring must be in accordance with national and local electrical code(s).

• Installation and service to be performed by a qualied licensed technician or electrician.

• Suitable for use on a circuit capable of delivering not more than 20,000 rms symmetrical amperes.

• This unit contains no serviceable parts.

WARNING

Risk of Fire or Electric Shock

NOTICE

• Thoroughly read instructions before installing SPD Unit.

• This product does not protect against lightning strikes.

• If the unit is mounted outdoors, the threaded nipple must be mounted horizontally into a suitable enclosure.

• L’installation et/ou le câblage doivent être conformes aux exigences du code de l’électricité local en vigueur et/ou du Code canadien de l’électricité.
