NN07325

158—02143REF Rev 7/14/20

Page of 12

Surge Protective Device (SPD)

Qualified Person

For the purpose of this instruction leaflet, a qualified person:

1.is familiar with the subject equipment and the hazards involved

with their application, use, administration and maintenance.

2is trained and authorized to de-energize, clear, ground, and tag

circuits and equipment in accordance with established safety

practices.

3is trained in the proper care and use of personal protective

equipment such as rubber gloves, hard hat, safety glasses or face

shields, arc-flash clothing, etc., in accordance with established

safety practices.

4is trained to render first aid.

5has received safety training to recognize and avoid the hazards

involved.

6has the skills and knowledge pertaining to the construction and

operation of this equipment and its installation.

Installation Instructions

IMPORTANT:

IMPORTANT:

IMPORTANT:

IMPORTANT:IMPORTANT: Read these instructions carefully to assure proper

installation and assembly. Ensure all fasteners and connections are

properly tightened. Installation in a manner inconsistent with these

instructions will void warranty.

To ensure integrity of the finished installation, do NOT install the

SPD if it has been dropped or abused during the installation

process.

The SPD contains no user serviceable parts and cannot be

repaired. Performing the following will compromise the unit’s performance

and will void the warranty. Do NOT:

• Megger or IR (Insulation Resistance) test the system with the SPD installed

• Install in a system that has a voltage greater than the unit’s rated voltage

Ungrounded power systems are inherently unstable and can produce

excessively high line--ground voltages during certain fault conditions. During to

these fault conditions any electrical equipment, including an SPD, may be

subjected to voltages which exceed their designed ratings. This information is

being provided to the user so that an informed decision can be made before

installing any electrical equipment on an ungrounded power system.

Safety Concerns

This instruction sheet is not comprehensive. It is assumed

the S installer will follow trade and NEC 70E established PD

safety precautions for working in an electrical environment.

•Suitable for use on a circuit capable of delivering not more

than 200,000 RMS symmetrical amperes at the nominal

system voltage.

•This device features internal protection that will disconnect

the surge protective component at the end of its useful life

but will maintain power to the load - now unprotected. If

the situation is undesirable for the application, follow the

manufacturer’s instructions for replacing the device.

•The LED status indicators report the status of the

protection circuitry.

•Contains no serviceable parts

•Warning - Shock Hazard - Do not open

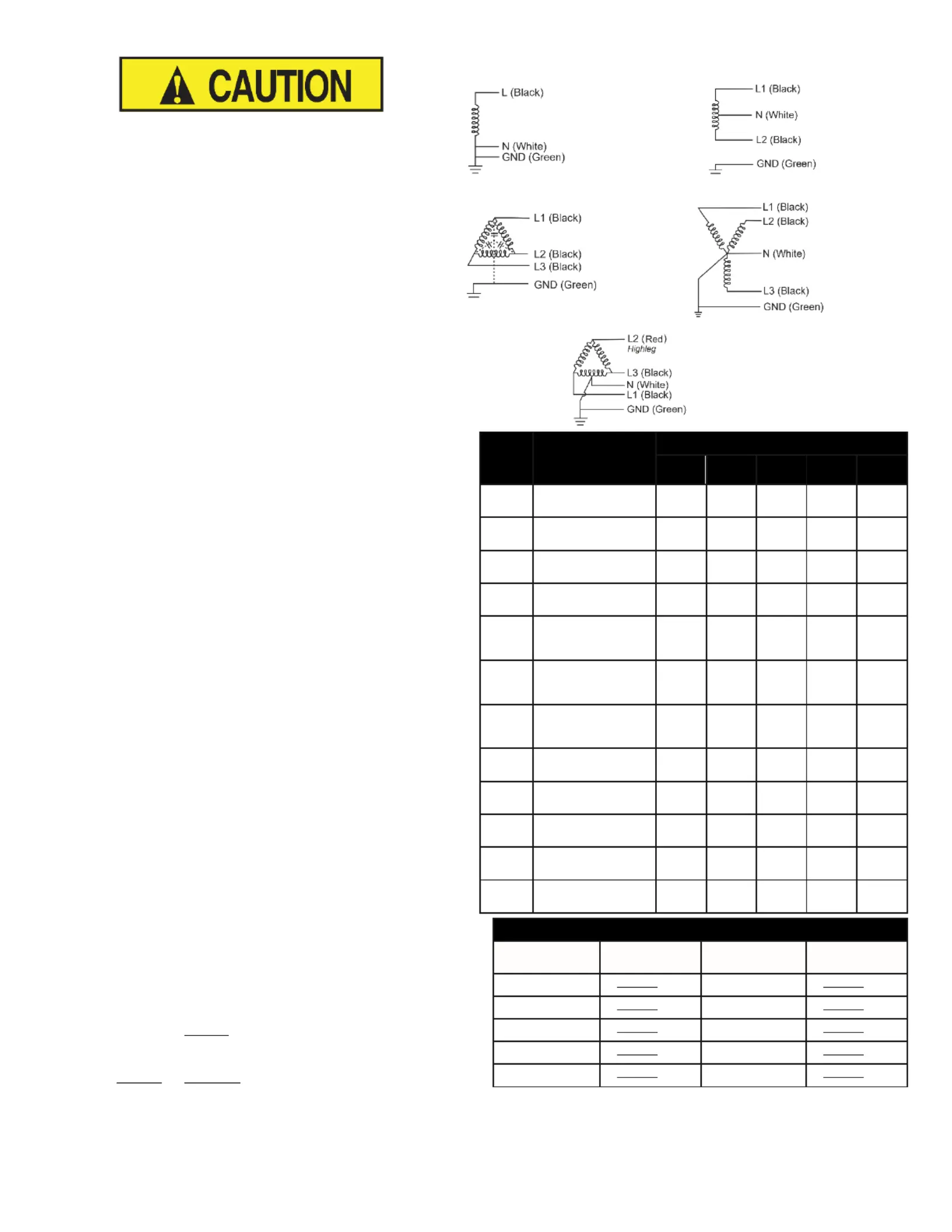

S General SpecificationsPD

Family

H

H

H

H H

Short-Circuit Current Rating (SCCR)

200 kA

Nominal Discharge Current (8x20 µs) I

n

20 kA

Voltage Frequency

50 / 60 Hz

Conductor Gauge / Type

Stranded 10 AWG / 6 mm

2

Enclosure

NEMA 1, 2, 3, 3R, 3X, 4, 4X

Degree of Protection (Installed State with

liquid tight connections)

IP65

SPD Install Location

Indoor or Outdoor

Operating Temperature

-40

º

C to +65

º

C

-40

º

F to +150

º

F

Recommended Circuit Breaker

30 Amp
