PROGRAM TIME SWITCH WITH “SKIPPER
®
”
FOR UP TO 48 TIMING OPERATIONS
ON 24 HOUR SCHEDULE
SINGLE POLE DOUBLE THROW
SWITCH RATING: 20 AMP. 125-480 VOLTS A.C. 1/2 HP-125V 1 HP-250V.
WIRING INSTRUCTIONS
This Time Switch can be wired to control two circuits as Single Pole Double
throw, or to control one circuit as Single Pole Single Throw. Either normally open
(NO) or normally closed (NC). To wire switch see wiring diagram above.
PROGRAMMING INSTRUCTIONS
TO PROGRAM TIME SWITCH, Depress tripper(s) into dial at desired time(s)
operation(s) is/are required.
• ON TIME: First tripper turns on the load for 16-20 minutes. Each additional
tripper will lengthen the on time by 15 minutes. If skipping of selected days
is desired, the skipper tripper (silver color) should be used to initiate the
first operation of the daily program, provided that there is at least 3 hours
between the last operation of the previous day and the first operation of the
present day.
• OFF TIME: First tripper in raised position turns off the load for 10-14 min-
utes. Each additional space will lengthen the off time by 15 minutes.
SET TIME-OF-DAY: Turn dial in clockwise direction only and align the exact
time-of-day (the time now when switch is being put into operation) to the
“TIME” arrow on insulator.
CHECK SKIPPER WHEELIf switch is to function seven days a week, pull
all pins, in skipper wheel up to “OUT” position. Otherwise depress pin(s) in
skipper wheel for day(s) automatic operation is not required.
•If, after the dial is set to the correct time of day, and the skipper tripper
(silver color) has not yet passed the skipper wheel, turn wheel counter clock-
wise so that the previous day is opposite the “DAY” arrow.
• If the skipper tripper has already passed the skipper wheel, set the correct
day opposite the “DAY” arrow.
CLOCK
MOTOR
SUPPLY
NORMALLY CLOSED CIRCUIT
NORMALLY OPEN CIRCUIT

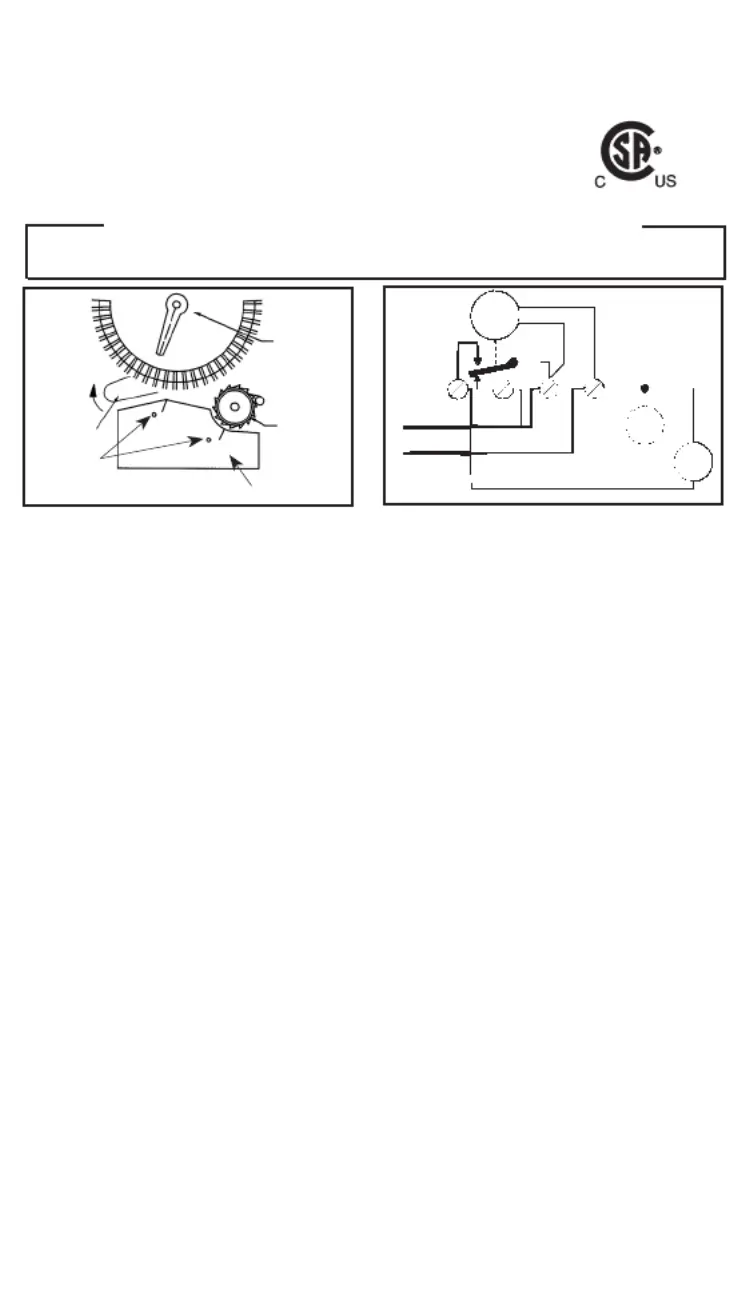

FIG. 1 WIRING DIAGRAM
CLOCK
COM.
N.C.N.O.
N.C.
LOAD
NO.
LOAD
1.
2.
3.
OPERATING INSTRUCTIONS
TO CONTROL LOADS MANUALLY,Move manual lever (See Figure 1) up. This
lever will close normally open circuit and open the normally closed circuit. To
return, to automatic control, move lever back to its original position .
IN CASE OF POWER FAILURE, reset dial. See step (2) of programming instruc-
tions.
TO REMOVE MECHANISM FROM CASE,Disconnect electricity and all wiring.
Depress retainer spring at upper left, then grasp dial and pull mechanism out.
INTERMATIC INCORPORATED
LIBERTYVILLE, ILLINOIS 60048
154--03263
CLOCK MOTOR: 208- 277 VOLTS - 60 HZ.
CLOCK MOTOR VOLTAGE AND CYCLE MUST BE AS SPECIFIED. TO ORDER REPLACEMENT,
INDICATE PART NO. (WG--) ON MOTOR COVER.
LR3730
TIME
DIAL
INSULATOR
MANUAL
LEVER
CAP
NUTS
SKIPPER
DAY
TIME
