Lies die bedienungsanleitung für JBL Boombox 3 Wi-Fi (24 Seiten) kostenlos online; sie gehört zur Kategorie Lautsprecher. Dieses Handbuch wurde von 4 Personen als hilfreich bewertet und erhielt im Schnitt 4.9 Sterne aus 2.5 Bewertungen. Hast du eine Frage zu JBL Boombox 3 Wi-Fi oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage
Seite 1/24
APP
APP
JBL ONE
CONNECT YOUR ANDROID™ OR IOS DEVICE TO THE WI-FI NETWORK AND FOLLOW
APP INSTRUCTIONS TO COMPLETE SPEAKER SETUP*.
*THE AVAILABILITY OF FEATURES WILL VARY BETWEEN COUNTRIES AND NOT ALL FEATURES MAY BE
AVAILABLE IN YOUR COUNTRY.
Wi-Fi
CHARGING
20% 50% 100%
TECH SPEC
TECH SPEC
TECH SPEC
BOOMBOX3
Wi-
Fi
QUICK
START
GUIDE

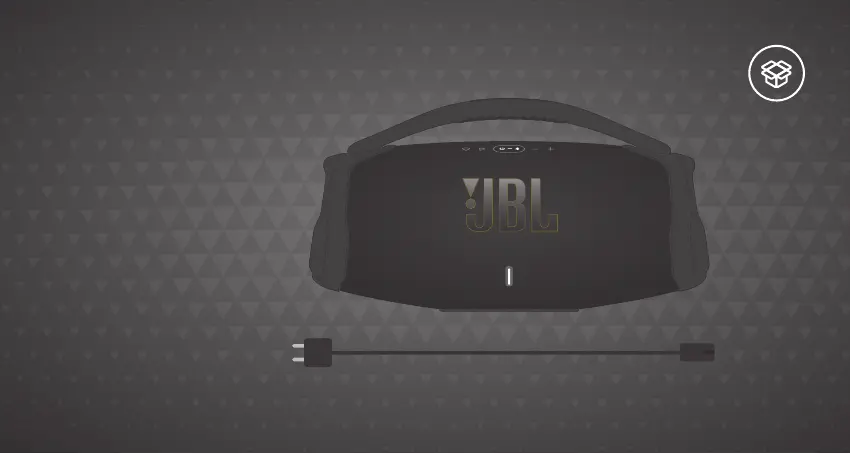

WHAT’S
IN THE
BOX
* POWER CORD QUANTITY AND PLUG TYPE VARY BY REGIONS.
POWER ON
STREAM MUSIC THROUGH JBL ONE APP OR SUPPORTED MUSIC SERVICES.
MUSIC STREAMING
BLUETOOTH PAIRING
ON
Settings Bluetooth
Bluetooth
DEVICES
JBL Boombox 3 Wi-Fi
Now Discoverable
Connected
2
×1
1
PLAY
×2
×1
MOMENT
PRESS TO PLAY THE SET PLAYLIST AND SPEAKERS SETTING PRESET IN THE JBL ONE APP.
IP67
WATERPROOF
DUSTPROOF
IP67
1M
30 MINS
WORKS WITH SMART HOME
*
*SMART SPEAKER SOLD SEPARATELY
COMPLETE SETUP IN THE GOOGLE HOME OR AMAZON ALEXA APP.
Transducer: 189 x 114mm subwoofer, 2 x 80.9 x 80.9mm midrange/
2 x 2.75”, 2 x 20mm tweeter/2 x 0.75”
Output power: 1 x 80W RMS-subwoofer + 2 x 40W RMS-midrange +
2 x 20W RMS-tweeter (AC mode)
1 x 60W RMS-subwoofer + 2 x 30W RMS-midrange +
2 x 10W RMS-tweeter (Battery mode)
Power input: 100 – 240 Vac; 50/60 Hz;
Frequency response: 40Hz – 20kHz (-6dB)
Signal-to-noise ratio: >80dBrA (A-Weighted)
Battery type: Li-ion Battery 69.12Wh (equivalent to 7.2V/9600mAh)
Battery charge time:
4.5hours
Music play time: up to 24hours (dependent on volume level and audio
content)
Connection ports: AC-in, USB-A
Cable type: AC Power Cable
Cable length: 2000mm/78.7”
USB charge out: 5V/2A (maxmium)
Wireless network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.5
Bluetooth transmitter frequency
range: 2.4GHz – 2.4835GHz
Bluetooth transmitter power: <12dBm (EIRP)
Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power: <23dBm
5G Wi-Fi modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)
5G Wi-Fi network compatibility: 802.11a/n/ac/ax
2.4G Wi-Fi transmitter frequency
range: 2.4GHz – 2.4835GHz
2.4G Wi-Fi transmitter power: <20dBm
2.4G Wi-Fi modulation: DSSS (DBPSK, DQPSK, CCK),
OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)
2.4G Wi-Fi network compatibility: 802.11b/g/n/ax
Product dimensions (W x H x D): 482.4 x 256.9 x 201mm/19.0 x 10.1 x 7.9”
Net weight: 6.79kg/15.0lbs
Packaging dimensions (W x H x D): 565 x 316 x 256.5mm/22.2 x 12.4 x 10.1”
Gross weight: 9.62kg/21.2lbs
Maximum operation temperature: 45°C
FACTORY RESET
>10S
PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1 2022/12/21 10:19:042022/12/21 10:19:04
APP
APP
JBL ONE
CONNECT YOUR ANDROID™ OR IOS DEVICE TO THE WI-FI NETWORK AND FOLLOW
APP INSTRUCTIONS TO COMPLETE SPEAKER SETUP*.
*THE AVAILABILITY OF FEATURES WILL VARY BETWEEN COUNTRIES AND NOT ALL FEATURES MAY BE
AVAILABLE IN YOUR COUNTRY.
Wi-Fi
CHARGING
20% 50% 100%
TECH SPEC
TECH SPEC
TECH SPEC
BOOMBOX3
Wi-
Fi
QUICK
START
GUIDE
WHAT’S
IN THE
BOX
* POWER CORD QUANTITY AND PLUG TYPE VARY BY REGIONS.
POWER ON
STREAM MUSIC THROUGH JBL ONE APP OR SUPPORTED MUSIC SERVICES.
MUSIC STREAMING
BLUETOOTH PAIRING
ON
Settings Bluetooth
Bluetooth
DEVICES
JBL Boombox 3 Wi-Fi
Now Discoverable
Connected
2
×1
1
PLAY
×2
×1
MOMENT
PRESS TO PLAY THE SET PLAYLIST AND SPEAKERS SETTING PRESET IN THE JBL ONE APP.
IP67
WATERPROOF
DUSTPROOF
IP67
1M
30 MINS
WORKS WITH SMART HOME
*
*SMART SPEAKER SOLD SEPARATELY
COMPLETE SETUP IN THE GOOGLE HOME OR AMAZON ALEXA APP.
Transducer: 189 x 114mm subwoofer, 2 x 80.9 x 80.9mm midrange/
2 x 2.75”, 2 x 20mm tweeter/2 x 0.75”
Output power: 1 x 80W RMS-subwoofer + 2 x 40W RMS-midrange +
2 x 20W RMS-tweeter (AC mode)
1 x 60W RMS-subwoofer + 2 x 30W RMS-midrange +
2 x 10W RMS-tweeter (Battery mode)
Power input: 100 – 240 Vac; 50/60 Hz;
Frequency response: 40Hz – 20kHz (-6dB)
Signal-to-noise ratio: >80dBrA (A-Weighted)
Battery type: Li-ion Battery 69.12Wh (equivalent to 7.2V/9600mAh)
Battery charge time:
4.5hours
Music play time: up to 24hours (dependent on volume level and audio
content)
Connection ports: AC-in, USB-A
Cable type: AC Power Cable
Cable length: 2000mm/78.7”
USB charge out: 5V/2A (maxmium)
Wireless network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.5
Bluetooth transmitter frequency
range: 2.4GHz – 2.4835GHz
Bluetooth transmitter power: <12dBm (EIRP)
Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power: <23dBm
5G Wi-Fi modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)
5G Wi-Fi network compatibility: 802.11a/n/ac/ax
2.4G Wi-Fi transmitter frequency
range: 2.4GHz – 2.4835GHz
2.4G Wi-Fi transmitter power: <20dBm
2.4G Wi-Fi modulation: DSSS (DBPSK, DQPSK, CCK),
OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM)
2.4G Wi-Fi network compatibility: 802.11b/g/n/ax
Product dimensions (W x H x D): 482.4 x 256.9 x 201mm/19.0 x 10.1 x 7.9”
Net weight: 6.79kg/15.0lbs
Packaging dimensions (W x H x D): 565 x 316 x 256.5mm/22.2 x 12.4 x 10.1”
Gross weight: 9.62kg/21.2lbs
Maximum operation temperature: 45°C
FACTORY RESET
>10S
PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1PA_JBL_Boombox 3 Wi-Fi_QSG_Global_SOP_V19.indd 1 2022/12/21 10:19:042022/12/21 10:19:04
Produktspezifikationen
