THANK YOU
for purchasing JBL GTO16t automotive
tweeters. We’ve organized this manual to
make your installation as simple and trouble-
free as possible. Please read it thoroughly before
proceeding. Remember to keep your sales receipt
and this manual in a safe place so both are available
for future reference.
tweeter
owner’s
manual
INSTALLATION WARNINGS AND TIPS
ABOUT THESE
INSTRUCTIONS
Installation of automotive stereo
components can require extensive
experience with a variety of mech-
anical and electrical procedures.
Although these instructions explain
how to install JBL GTO16t tweeters in
a general sense, they do not show the
exact installation methods for your
particular vehicle. If you feel you do
not have the experience, do not
attempt the installation yourself but,
instead, ask your authorized JBL car
audio dealer about professional instal-
lation options.
LOUD MUSIC AND
HEARING
Playing loud music in an automobile
can permanently damage your
hearing, as well as hinder your ability
to hear traffic. The maximum volume
levels achievable with JBL speakers,
combined with high power amplifica-
tion, may exceed safe levels for
extended listening. We recommend
using low volume levels when driving.
JBL accepts no liability for hearing
loss, bodily injury, or property
damage as a result of use or misuse
of this product.
ABOUT THE FILTER
Passive filter design involves precise
circuit design and component selec-
tion. Moreover, a well-designed filter
circuit provides an intended electrical
response, when combined with the
electrical properties of the speaker,
to provide a particular acoustic
response. Each enclosed filter has
been optimized to provide a flat
response when used with a
JBL GTO16t tweeter.
Do not use another brand or type of
passive crossover, or connect more
than one tweeter to a crossover.
Doing so may damage the tweeter.
INSTALLATION TIPS
• Always wear protective eyewear
when using any tools.
•Turn off all audio components and
other electrical devices before you
start. Disconnect the negative (–)
lead from your vehicle’s battery.
•Keep speakers in their package
until final installation. When moving
a speaker, always rest it with the
cone or dome facing up. Never use
force to install any speaker.
•Check clearances on both sides of
a planned mounting surface before
drilling any holes or installing any
screws. Remember that the screws
can extend behind the surface.
•At the installation sites, locate
and make a note of all fuel lines,
hydraulic brake lines, vacuum lines
and electrical wiring. Use extreme
caution when cutting or drilling in
and around these areas.
•Before drilling or cutting holes, use
a utility knife to remove unwanted
fabric or vinyl to keep material from
snagging in a drill bit or saw.
•For door installations, check the
clearance with the windows
throughout the range of the win-
dow’s travel, and verify that a
mounted speaker will not interfere
with the window crank or power-
window mechanism.
•If mounting speakers elsewhere,
check for clearance around rear-
deck torsion bars, glove box or
other structural elements.
•Do not mount speakers where they
will get wet.
SPEAKER PLACEMENT
ABOUT PLACEMENT

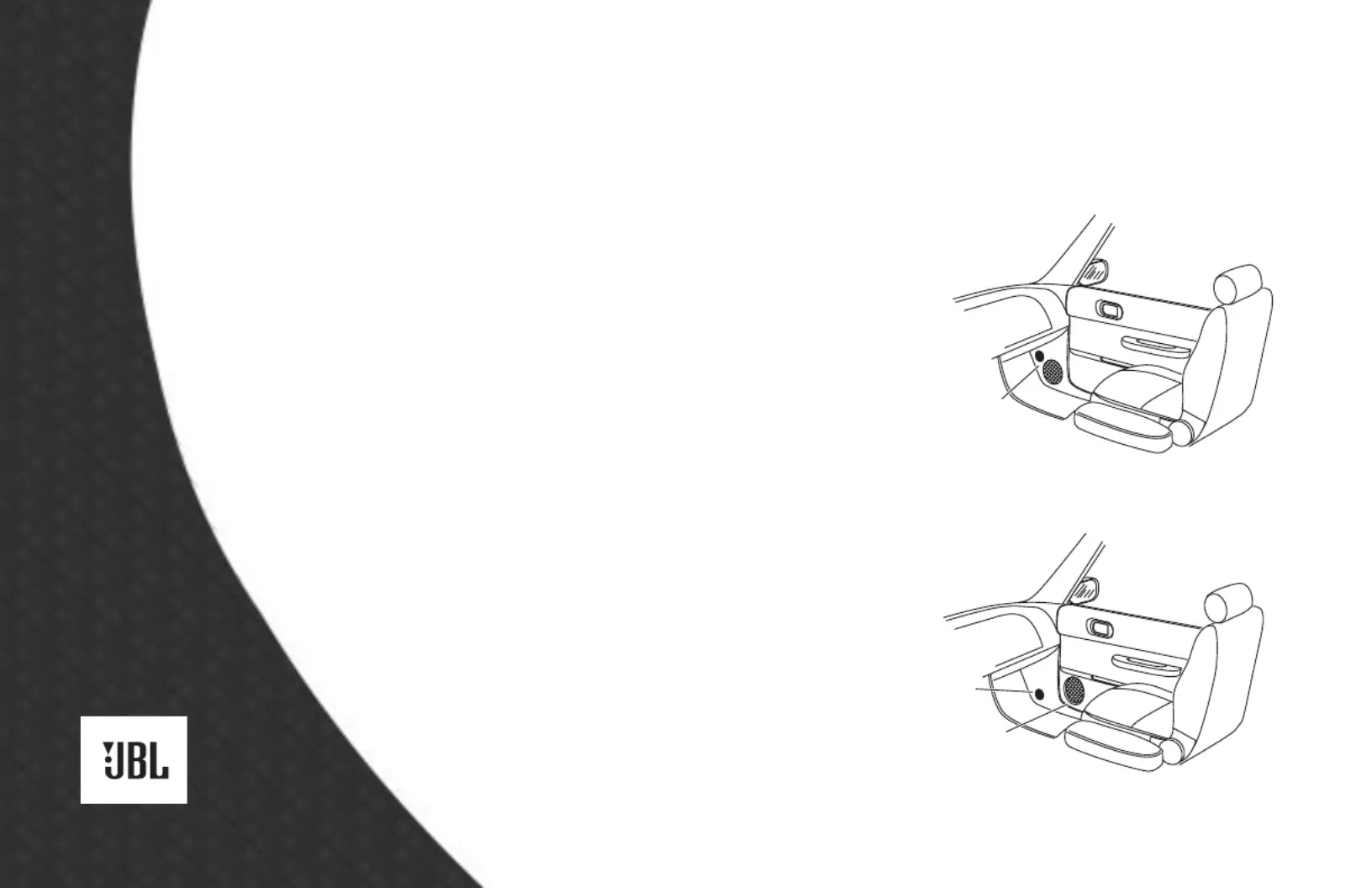

Figures 1 and 2 show possible speaker placements, with Figure 1 being more
desirable. We recommend using the kick panel for mounting to obtain the best
staging and imaging in most vehicles.
Figure 1. Mounting the woofer and tweeter in the kick panel.
Figure 2. Mounting the woofer in the door and the tweeter in the kick panel.
Tweeter
and woofer
on kick panel
Tweeter
on kick panel
Woofer in factory
door location

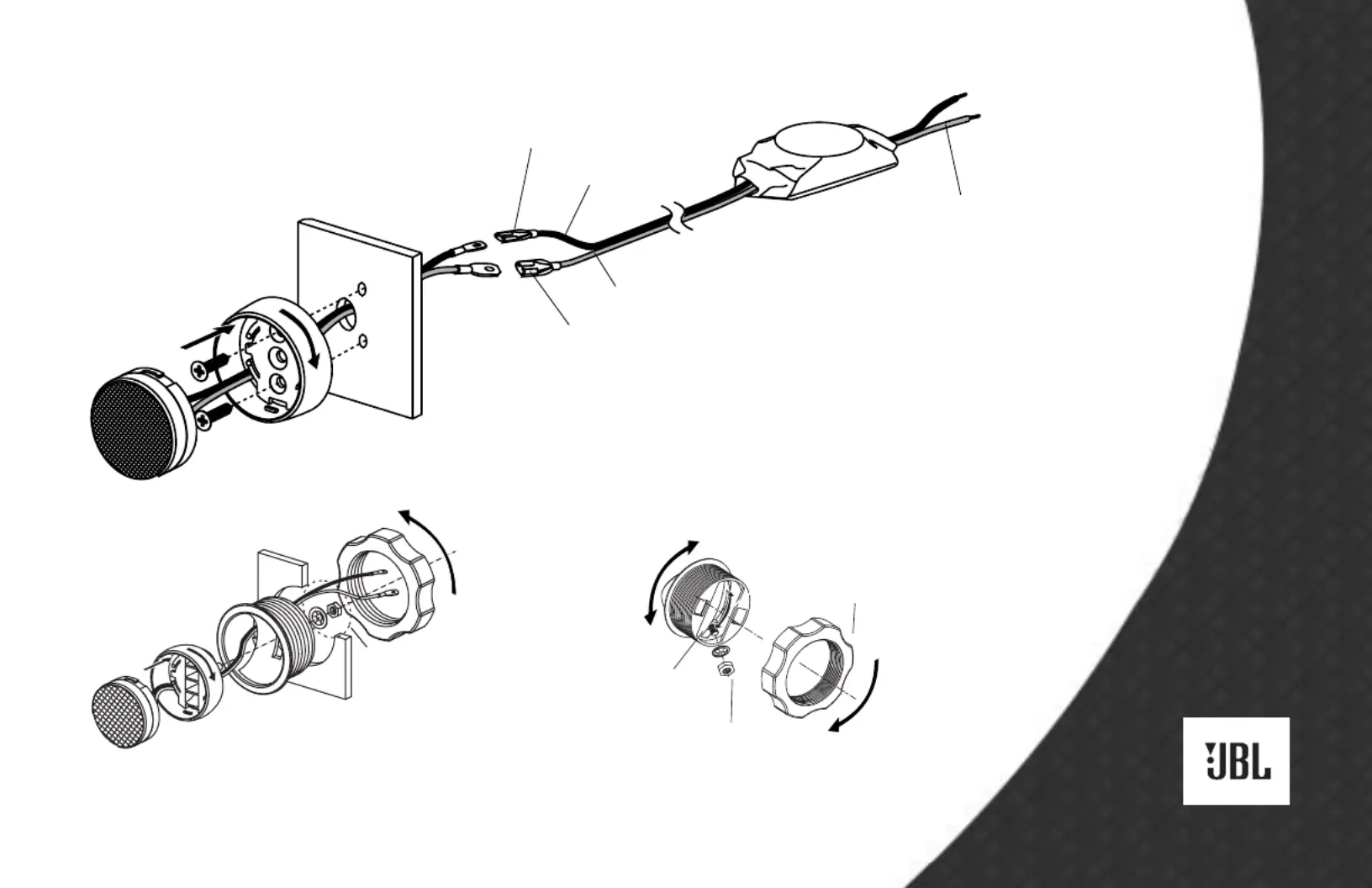

TWEETER INSTALLATION
1
2
(–) SMALL LUG
(+) LARGE LUG
BLACK
RED
RED (+)
RED (+)
BLACK (–)
BLACK (–)
1
2
3
4
1. Slide screw up or
down to adjust
tweeter angle.
4. Securely tighten
the large hand nut.
2. Tighten nut and
washer to lock
angle settings.
3. Rotate entire assembly
to aim angled tweeter
toward listener.
Figure 4. Mounting the tweeter
using the I-Mount™ (patent no.
5,859,917) flush-mounting kit.
Also see Figure 5.
Figure 5. Aiming the tweeter at a
desired listening position.
Figure 3. Surface-mounting the
tweeter and connecting the
crossover.
