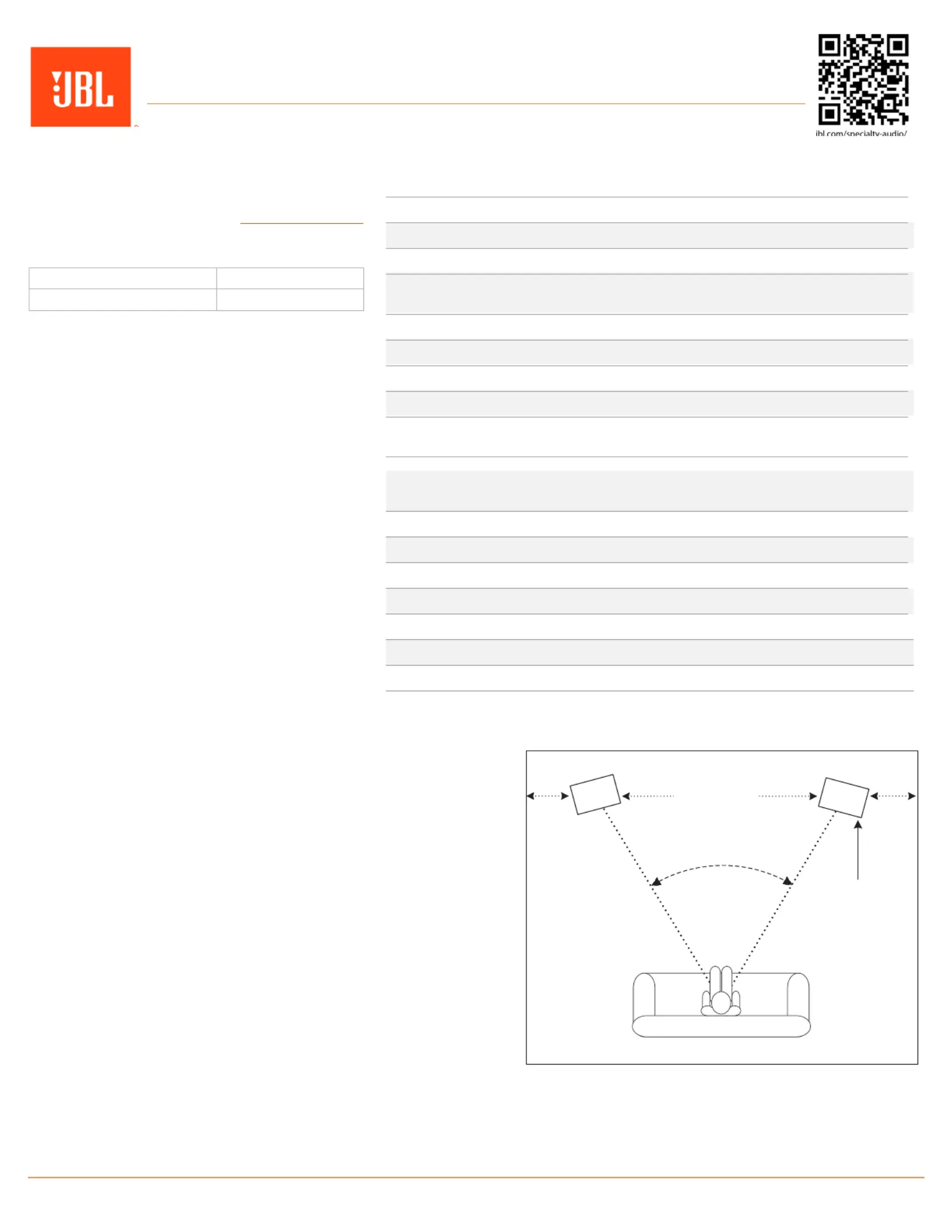

L82 Classic MkII

2-Way - ch Bookshelf8 in (200mm) Loudspeaker

Quick Start Guide

Overview

Box Contents

MkII

Placement and Positioning

●

Specifications

Type: 8-inch (200mm) 2-way Bookshelf Loudspeaker

Low Frequency Driver: 8in (200mm) cast-frame Pure Pulp cone woofer (JW200PW2-6)

High Frequency Driver: 1in (25mm) Titanium dome tweeter with waveguide (JT025Ti2-4)

Recommended

Amplifier Power: 25 ~ 150W RMS

Impedance: 8 Ohms

Loudspeaker Sensitivity: 88dB (2.83V/1m)

Frequency Response: 44Hz ~ 40kHz (-6 dB)

Crossover Frequency: 1.7kHz

Finish:

Natural Walnut veneer with Black, Orange, or Blue Quadrex

Foam Grille

Dimensions With Grille:

(HxWxD)

18.6-inch x 11.0-inch x 12.4-inch (472.7mm x 280.2mm x

315.0mm)

Controls: HF level control

Input Type: Dual sets of Gold-plated Binding Posts

Product Weight (Each): 28lbs (12.8kg)

Shipping Weight: 70lbs (31.8kg)

Shipping Units of Measure: Stereo Pair (Mirrored Left/Right)

Recommended Stand Height: 16in (404mm)

Recommended Stand: JBL JS-80 (Sold Separately)

JBL L82 Classic MkII Quick Start Guide | Rev3.0 20230501 | Part No. 950-0622-001

Wiring and Connections

IMPORTANT! Wiring Precautions

●

4 Post Terminals / Dual Sets of Binding Posts Terminal Wiring Options

Basic single-wire connection from amplifier Two-wire connection from single amplifier Two-wire connection from multiple amplifiers

Controls and Adjustments

High Frequencies (HF Level) Adjustments

●

JBL L82 Classic MkII Quick Start Guide | Rev3.0 20230501 | Part No. 950-0622-001 | Features, Specifications, and Appearance subject to change without notice.

L82 CLASSIC MkII
