Seite 1/2
T R O N I C S E R I E S
ardless of incoming water temperature
rface and multiple function analysis.
OneGO™ soft touch buttons allows you to run a selection of four different cycles, all in one easy touch!
• SmartSelf diagnostics – have all necessary advanced service diagnostics information at your fingertips!
• EasyGO – Our ‘soft-start’ washing system protects your valuable dishes and glassware from any chippage or breakage
• EnergyStar qualified – extremely low water and electrical consumption maximizing your profits
• Model 757E is fully equipped with a built-in booster for high temperature rinse water and automatic peristaltic pumps for
both liquid detergent and rinse-additive.
OPTIONS:
• Pressure reducing valve (PRV)
• Drain water tempering kit

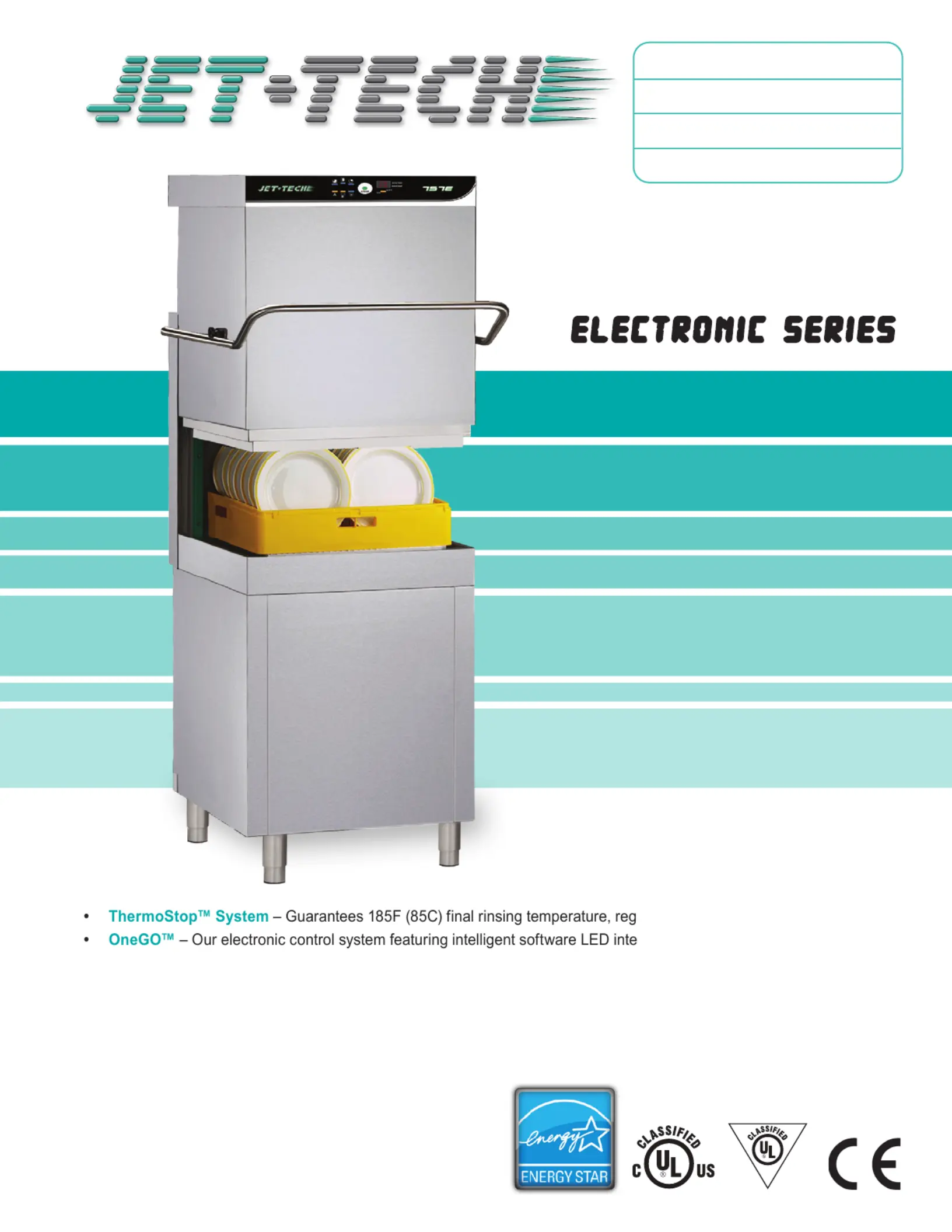

757e
HIGH-TEMP DOOR TYPE DISHWASHER
E L E C T R O N I C S E R I E S
Project name:
Location:
Item: Qty:
Model:
EPH
• Body, external housing, wash tank and all chassis
component in brushed stainless steel - type AISI 304
16 gauge
• Upper and lower wash and rinse jets on revolving
arms constructed of stainless steel; easy to remove
and clean without the need for tools
• Adjustable bullet-style feet
• Safety two-way automatic micro-switch on the door
controlling the operation of the wash motor-pumps
• Independently-operated heating elements alternating
between booster and wash tank
• Alternating heating resistors reducing maximum
absorption thereby reducing energy costs
• Inner washing chamber with coved corners and
one-piece stamped wash tank provides user with the
most sanitary environment. Our recessed wash tank
makes the 757E ideally suited for marine applications.
• Unique stainless steel rack support glide system
allows operator to easily change from in-line to corner
application
• Door opening with overall clearance of 16.75 in.
(425 mm) with ergonomic door handle
• Automatic fill and water level regulation of the wash
tank
• Wash pumps are protected with double scrap filters
easy to remove for quick cleaning and proper
maintenance
• Machine can be installed either as an in-line or corner
application with simple field modification
• Slide-out integrated front control panel provides easy
access for technical service
• Front mounted electronic control panel with digital
temperature displays
• Standard equipment includes : One open
combination rack and one peg dish rack 19.75” x
19.75” (500 mm x 500 mm)
25-1/2”
(645 mm)
61-1/2”
(1555 mm)
max 78-1/2”
(1990 mm)
50
+
-
115
32-1/2”
(825 mm)
28-3/4”
(735 mm)
33-1/2”
(845 mm)
16-3/4”
(420 mm)
15-1/2” (470 mm)
8-1/2” (210 mm)
5-3/4” (150 mm)
14-1/2” (370 mm)
7-1/2”
(180 mm)
JET-TECH is a registered trade mark of MVP Group.
Specifications subject to change without notice.
•
Rack capacity: 19.75” x 19.75” (500 mm x 500 mm)
•
Total cycle: 1-2-3-4 minutes
•
Hourly production: 60/30/20/15 racks/hr.
(1080/540/360/270 dishes/hr.)
•
Wash tank capacity: 5.25 U.S. Gallons (20 Litres)
•
Booster capacity: 2.62 U.S. Gallons (10 Litres)
•
Wash temperature: 150°F (65°C)
minimum / controlled electronically
•
Final rinse temperature: 185°-194°F (85°-90°C.)
minimum / controlled electronically
•
Incoming water temperature: Minimum 122°F. (50°C.)
•
Incoming water pressure: 30-60 p.s.i. (2-4 bar)
•
Water consumption per cycle @ 30 psi: 0.85 U.S.
Gallons (3.2 Litres)
•
Washing pump power: Two individual motor-pumps
each of 0.75 H.P. for total of 1.5 H.P.
•
Power supply: 208V/60HZ
•
Tank heating element: 4.0 KW
•
Booster heating element: 9.0 KW
•
Maximum power rating: 10.0 KW - 48.0 amps
(single phase) 28.5 amps (three phase)
•
Machine weight: 308 lbs. (140 kg.)
•
Ship weight: 340 lbs. (154.5 kg.)
MVP GROUP CORP.
5659 Royalmount Ave., Montreal, Qc, Canada H4P 2P9
TEL: (514) 737-9701 - TOLL FREE: (888) 275-4538
FAX: (514) 342-3854 - TOLL FREE FAX: (877) 453-8832
www.mvpgroupcorp.com sales@mvpgroupcorp.com -
GROUP
WATER CONNECTION
WATER DRAIN
ELECTRICAL CONNECTION
C O N S T R U C T I O N F E A T U R E SC O N S T R U C T I O N F E A T U R E S
T E C H N I C A L F E A T U R E ST E C H N I C A L F E A T U R E S
