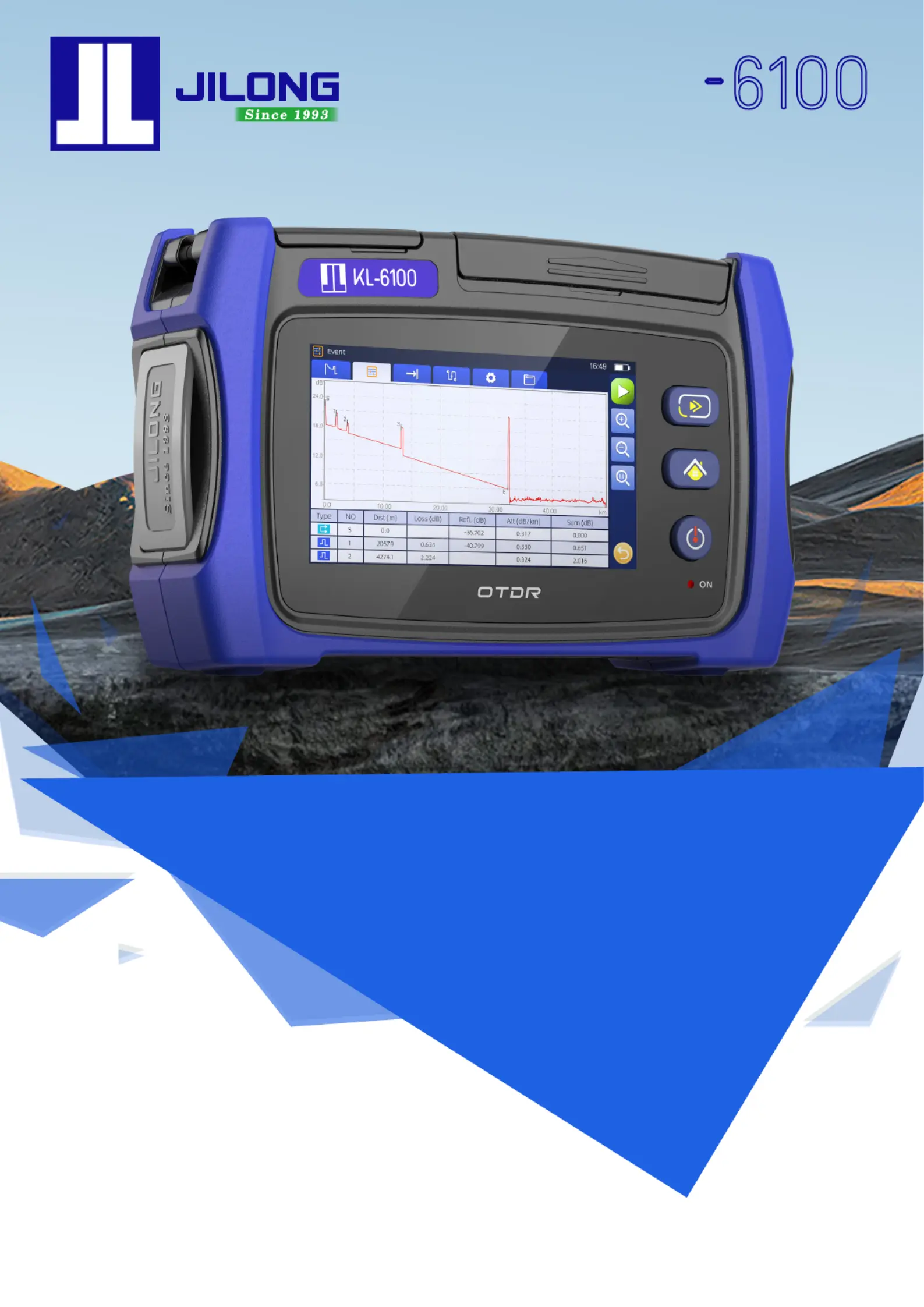

FTTx OTDR

KL-

6100

• ≤1.5m event blind zone, ≤5m attenuation blind zone

• Measures continuous events on 8x3m optical fiber jumpers in fully

automatic mode (industry benchmark).

• 6000mAh large capacity battery

• Maximum dynamic range: 31dB

• Smart link diagram





Optical Time Domain Reflectometer FTTx-OTDR

Full range selection

Operability

Far more than just

• Up to 9 OTDR models availab

• 31~29dB ultra-wide dynamic range

• 4.3 inch color LCD touch screen

• Built-in link diagram, simplifying the

• OPM (optical power meter mo

• SLS (Stable Light Source Mod

• VFL (Visible light fault locator)

• RJ45 (Network Test Module)



R&D and manufacturing

experience

1996

The launch of optical fiber fusion splicers ends our

country's long-term reliance on imports.

1993

Kelong Company, predecessor of Nanjing JILONG, was

established and launched the first domestic optical fiber

fusion splicer

KL-100 the same year.

2001

JILONG launches the new vertical fully automatic fiber

optic fusion splicer

KL-200.

2003

JILONG launches the , its first independently KL-6210

developed handheld high-precision OTDR.

2025

The new optical time domain reflectometer,

KL-6100, OTDR, successfully entered production and rolled

off the line for the first time.

2024

JILONG launches the , a new intelligent trunk KL-6300

line OTDR, to fill the gap in the domestic high-end market.

Based on 30 years of R&D and manufacturing experience, our JILONG OTDR is KL-6100

designed for FTTx network installation, troubleshooting, and testing. It offers single, dual, and

three-wavelength models, with the single-wavelength model supporting online testing. Its compact

design and multi-wavelength options make it ideal for FTTx deployment and maintenance.

JILONG OTDR is widely used for FTTx network installation and troubleshooting, access

network testing (P2P), passive optical LAN (POL), cable TV (CATV) and hybrid fiber coaxial (HFC)

network testing, as well as FTTA and Distributed Antenna System (DAS) installation.

FTTx Installation and Maintenance

Network Diagram

Application scenarios

Communication

construction

Weak current

Installation and

maintenance works

Broadband construction

in residential area

Monitoring

construction

Troubleshooting

Business platform part

Optical network part

User terminal part

Aircraft building

Computer

television

Phone

ODN

Second stage

optical node

(Including

beam splitter)

Fiber optic cable transfer box

(First Stage Optical Node)

OLT ODF

Schematic diagram of the FTTx installation and maintenance network:

It consists of three parts - service platform, optical network, and user terminal.

1. Optical Line Terminal (OLT): Aggregates services and sends them to the upper-layer network.

2. Optical Distribution Network (ODN): Extends cables to users via passive components like backbone cables, distribution cables, fibers, junction boxes,

and splitting boxes.

3. Optical Network Unit (ONU): Handles voice, broadband, and iTV services.

Optical line

termination

Optical fiber distribution rack

Optical fiber

distribution network

KL-

6100
