Sheet SKU#011140 Revision 10/5/01
SB-GM-TRKEXT99/12W3-D2, JL AUDIO, Inc 1999 • Page 1
SB-GM-SLVEXT/12W3
Stealthbox™
Fits 1999-UP Extended-Cab
Full-Size GM Pickup Trucks
Installation Guide:
This Stealthbox is a product which requires professional installation skills and tools. Please read this
installation guide thoroughly before beginning the project. It will guide you step by step through the
installation. Several of the steps in this process may require two people to accomplish.
It is absolutely vital that the enclosure be properly mounted to the vehicle according to these instruc-
tions. Failure to mount the enclosure properly presents two problems: 1) The sub-bass performance
will suer due to the movement of the enclosure caused by the force exerted by the woofer and 2) A
loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

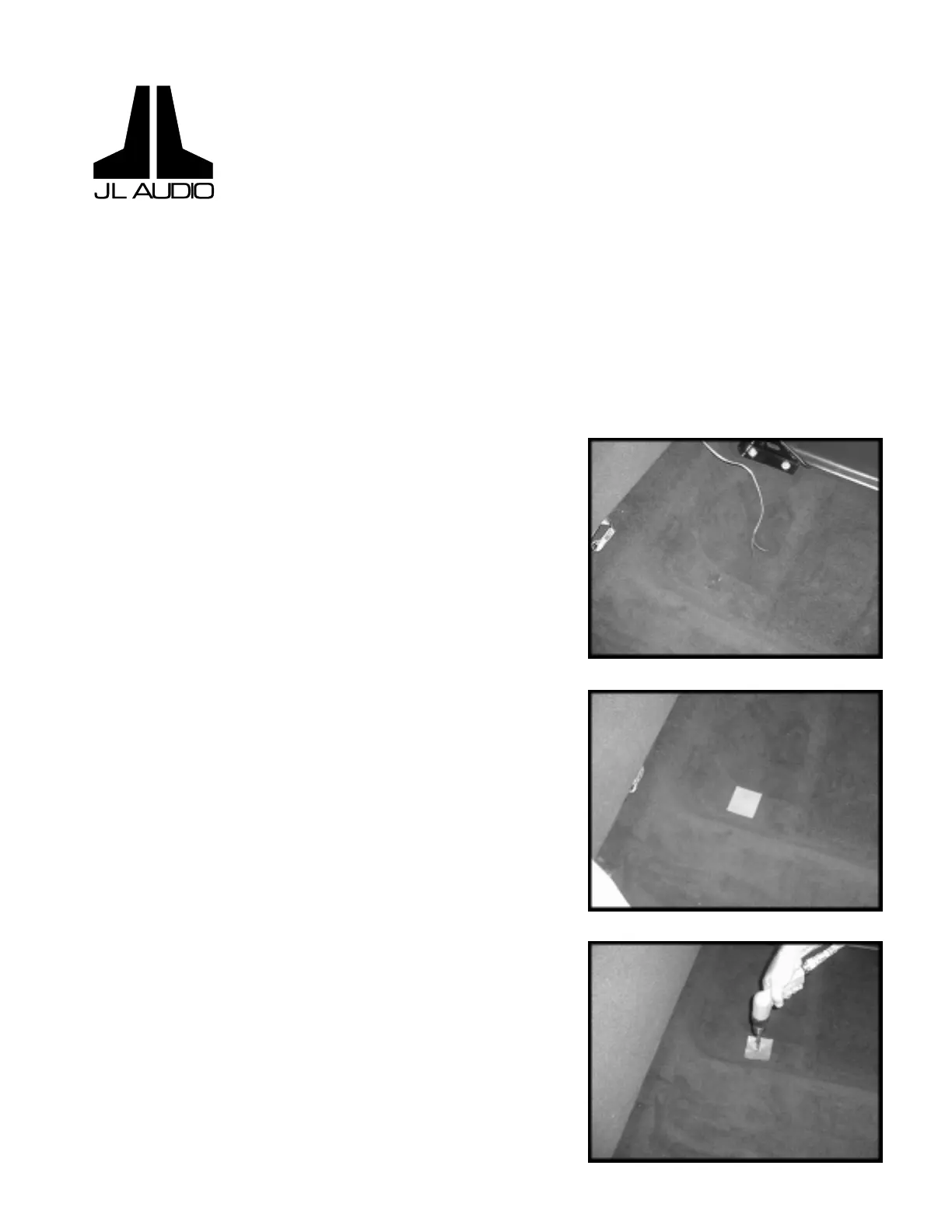

STEP 1: Fold the rear bench seat up.
STEP 2: Run speaker wires to the rear of the cab under the
bench seat.
STEP 3: Peel the backing from the supplied square of wax and
place it on the oor of the cabin in the location shown in the
picture. This will be used to mark the location of the hole for
the mounting bolt. The wax square should be in the location of
the threaded insert in the enclosure when the enclosure is
placed in the proper location within the vehicle.
STEP 4: Thread the bolt into the threaded insert in the
Stealthbox. Tighten Fully.
STEP 5: Place the Stealthbox in its mounting location on the
oor of the cab. Press down on the enclosure rmly to make an
impression on the wax sheet with the head of the mounting bolt.
STEP 6: Remove the enclosure. There should be a clear mark
where the bolt pressed into the wax square.
STEP 7: Check under the truck for any loose brake lines, fuel
lines or other hazards before drilling.
CAUTION: Always wear eye protection when
drilling.
STEP 8: Drill a 1/2" diameter hole through the oor pan of the
truck using the indentation in the wax square as a guide. Make
sure you hold the drill straight and that the hole you are drilling
is centered on the wax mark.
STEP 9: Trim speaker wire to length and connect to the
enclosure's barrier strip observing correct polarity. Positive is
designated by the red wire on the barrier strip.
Sheet SKU#011140 Revision 10/5/01
STEP 10: Place the Stealthbox into its mounting location,
tucking the excess wire neatly out of sight. Turn on the
system and test the enclosure's operation before bolting it
down.
STEP 11: While one person holds the Stealthbox in place
inside the truck, bolt the enclosure into place from underneath
the truck, using the supplied hardware. Before tightening the
bolt, apply a bead of silicone sealant between the at washer
and the vehicle's oor pan. Then tighten the enclosure fully.
See diagram below:
IMPORTANT!!!
Once the bolts are tightened, spray undercoating onto the bolt heads to prevent rust, leaks and
loosening of the bolts over time. Failure to do so may result in severe corrosion and may present a
serious safety hazard.
SB-GM-TRKEXT99/12W3-D2, JL AUDIO, Inc 1999 • Page 2
This completes the installation.
Specifications:
Enclosure Type: Acoustic Suspension (Sealed)
Driver Type: JL AUDIO 12W3-D2 Subwoofer
Cont. Power Handling: 250 Watts
Nominal Impedance: 4Ω
Supplied Hardware:
(1) 4" sheet wax square
(1) 3/8" x 1.25" Bolt
(1) Flat washer
(1) Split lock washer
10369 N. Commerce Pkwy, Miramar, Florida 33025-3921 Voice: (954) 443-1100 Fax: (954) 443-1111
Completed Installation
3/8" Bolt
Lock Washer
Flat Washer Vehicle's Sheet M
e
Enclosure Wall (berglass) Threaded Insert
Molded into
Enclosure
Bead of Silicone Sealant
