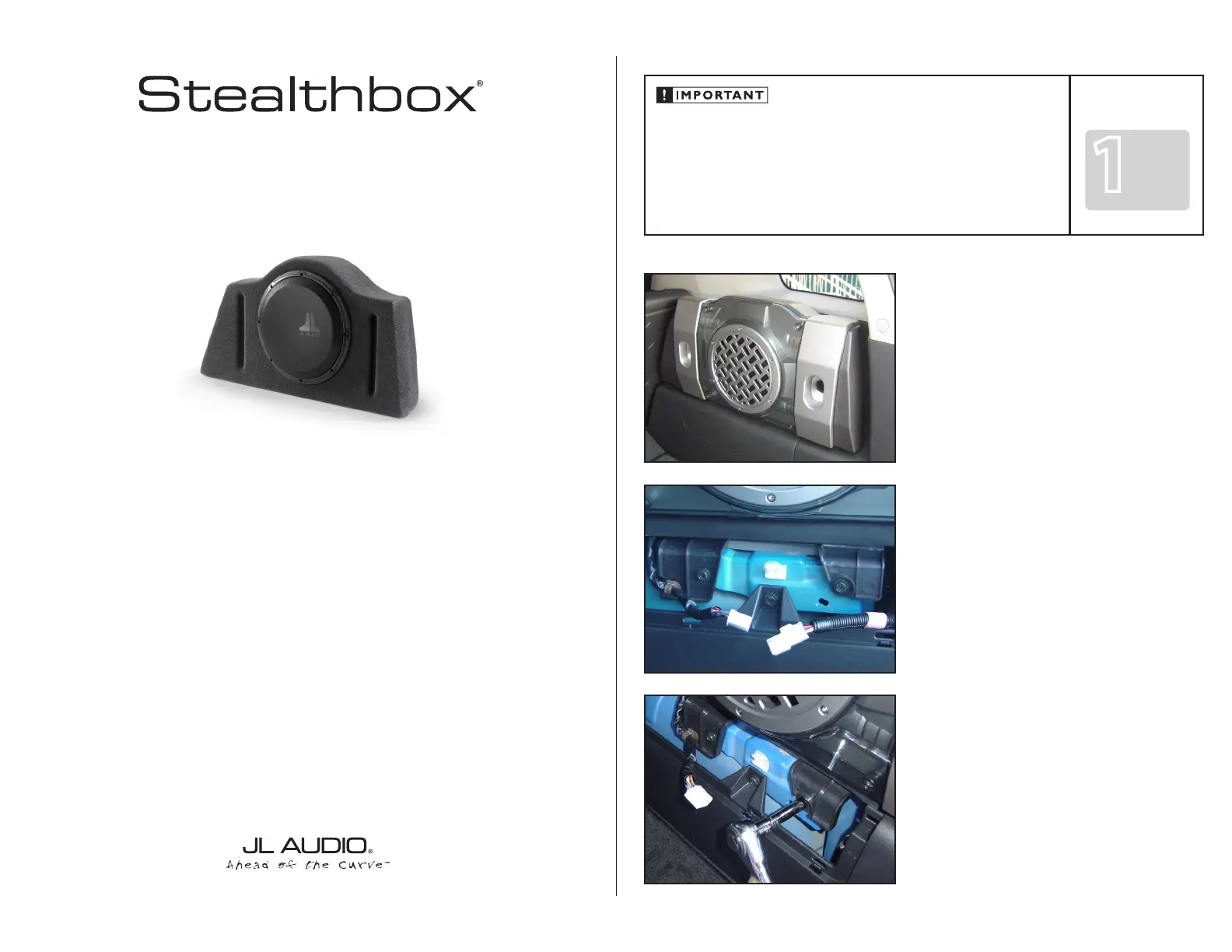

INSTALLATION
D I F F I C U L T Y :
I N S T A L L A T I O N G U I D E
for the
SB-T-FJ/12W1v3
SKU# 94310
2000 - 2014 Toyota FJ Cruiser
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 1 year if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove all contents from cargo area.
If your vehicle did not come equipped with the factory
“woofer” system, go to STEP 7.
Continued on Next Page
S T E P 2
Remove the access panel from under the factory
“woofer” system.
Disconnect the white plug.
S T E P 3
Remove the two mounting bolts that secure the bottom of
the factory “woofer” system.
SB-T-FJ/12W1v3_INSTR_SKU#011226
15
OUT
OF
Continued on Next Page
SB-T-FJ/12W1v3_INSTR_SKU#011226
S T E P 7
Remove the factory “woofer” system or the pocket from the
vehicle.
Vehicles without the factory “woofer” system, remove the
access panel that is located on the wheel well.
S T E P 6
Remove the upper right mounting bolt.
S T E P 5
Remove the upper left mounting bolt.
S T E P 4
Loosen the four exposed screws and remove the grille panel.
L-BRACKET
8mm FLAT WASHER
STEALTHBOX WALL THREADED INSERT
8mm BOLT
SPACER
8mm LOCK WASHER
Page 2 • JL Audio, Inc 2016
S T E P 9
Place the Stealthbox onto passenger’s side rear wheel well.
Place a supplied 6mm lock washer and 6mm flat washer
onto each of the supplied 6mm x 40mm bolts.
From inside the Stealthbox®, place one of the bolt assemblies
through the left mounting hole that is located on the rear
wall of the Stealthbox®.
S T E P 1 1
Place the supplied pair of threaded studs into the 3 o’clock
and 9 o’clock position of the woofer’s mounting screw
locations. Leave about 1 1/2-inch exposed. As seen the
picture to the left.
Reconnect the speaker wires from inside the Stealthbox®
back onto the woofer’s terminal.
Place the woofer into the mounting hole, using the threaded
studs as guides. Mount the woofer using the mounting
screws that were removed in STEP 8. Remove the threaded
studs and secure the remaining pair of mounting screws.
S T E P 1 0
From inside the Stealthbox®, place the other bolt assembly
through the right mounting hole that is located on the rear
wall of the Stealthbox®.
Secure both bolt assemblies.
S T E P 8
With hand tools, unscrew the woofer’s mounting screws.
Disconnect the speaker wire from woofer and remove from
the woofer from the Stealthbox®.
Place a supplied 8mm lock washer, 8mm flat washer,
L-bracket and spacer onto each of the supplied 8mm bolts.
Place the shorter length leg of the L-bracket onto the
8mm bolt.
Secure each bolt assembly onto the bottom of the
Stealthbox®. The longer length leg of each L-bracket is to be
positioned toward the front of the Stealthbox®.
SB-T-FJ/12W1v3_INSTR_SKU#011226
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 3
Run speaker wire from the amplifier location to the
Stealthbox®. Double check the woofer for proper operation.
S T E P 1 2
Secure the L-brackets to the vehicle using the supplied bolts.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011226 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(2) 8-32 x 1-1/2-inch Threaded Studs (2) 6mm x 40mm Fine Thread Bolts
(2) 8mm x 35mm x w/1.25pitch Bolts (2) 6mm x 25mm Fine Thread Bolts
(2) 8mm Lock Washers (4) 6mm Lock Washers
(2) 8mm Flat Washers (4) 6mm Flat Washers
(2) 1/4-inch(H) x 3/8-inch(ID) x 3/4-inch(OD) Spacers (2) Metal L-Brackets
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 12W1v3-2
Nominal Impedance: 2 Ohms
Continuous Power Handling: 300 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover, settings for the XD300/1v2 when being used to power your Stealthbox ®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-inch x 9-inch / Front Doors
Fits JL Audio Models: TR690-CXi, C2-690tx
Rear Speaker Size / Location: 2.5-inch / D-pillars
Fits JL Audio Models: N/A
