8-CHANNEL LEVEL SHIFTER COM-VT-CH8
BIDIRECTIONAL VOLTAGE TRANSLATOR FOR LOGIC LEVELS FROM 1.2 V TO 5.5 V
8-channel, bidirectional voltage translator
Automatic direction detection without additional cont-
rol pins
Power supply: VCCA 1.2–3.6 V, VCCB 1.65–5.5 V
Supports data transfer rates up to 100 Mbps
OE pin for selective activation/deactivation of channels
SPECIAL FEATURES

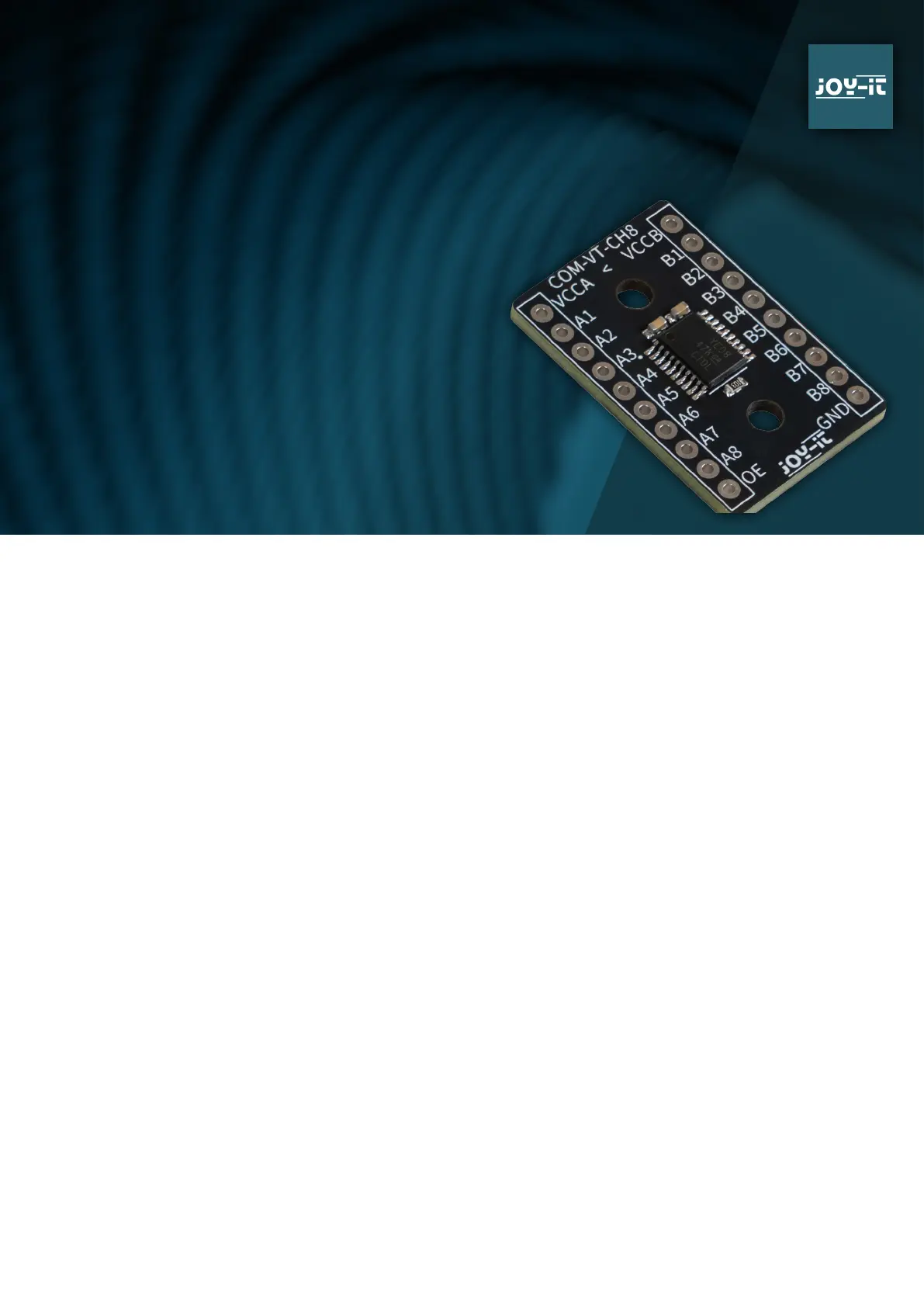

The COM-VT-CH8 is a versatile 8-channel, bidirectional
voltage translator that simplifies interfacing between
digital systems with dierent logic levels. With
automatic direction detection, it eliminates the need
for control signals and enables transparent, hassle-
free communication. This makes the module ideal
for embedded systems, development setups, mixed-
voltage prototypes, and educational projects where
signals must flow in both directions.
It supports a supply voltage range of 1.2 V to 3.6 V on
the A-side and 1.65 V to 5.5 V on the B-side, ensuring
compatibility with nearly all common logic families.
Developers can easily connect modern low-power
MCUs, FPGAs, and sensors to legacy peripherals or
controllers that require 5 V logic. With transfer rates
up to 100 Mbps, the COM-VT-CH8 is well suited for fast
interfaces such as SPI, UART, I²C, or GPIO signaling.
An integrated OE pin (Output Enable) allows all channels
to be enabled or disabled simultaneously. Combined
with Io support, it prevents unwanted reverse currents
when a supply is powered down—an important
feature in low-power and battery-driven systems.
For convenient integration, the module comes with
two matching 10-pin headers included but not pre-
soldered, giving users full flexibility: they can be
soldered for breadboard use, or omitted for direct
wiring. This adaptability makes the COM-VT-CH8
suitable for professional prototypes, lab use, and
educational kits alike.
