OWNER’S

MANUAL

SQ-1500

SEQUENCED POWER CONTROL MODULE

02-14

FUNCTION

The Juice Goose SQ-1500 is a three step power sequence device that

will distribute AC power to as many as seven pieces of equipment with

total current requirements of less than 15 amps.

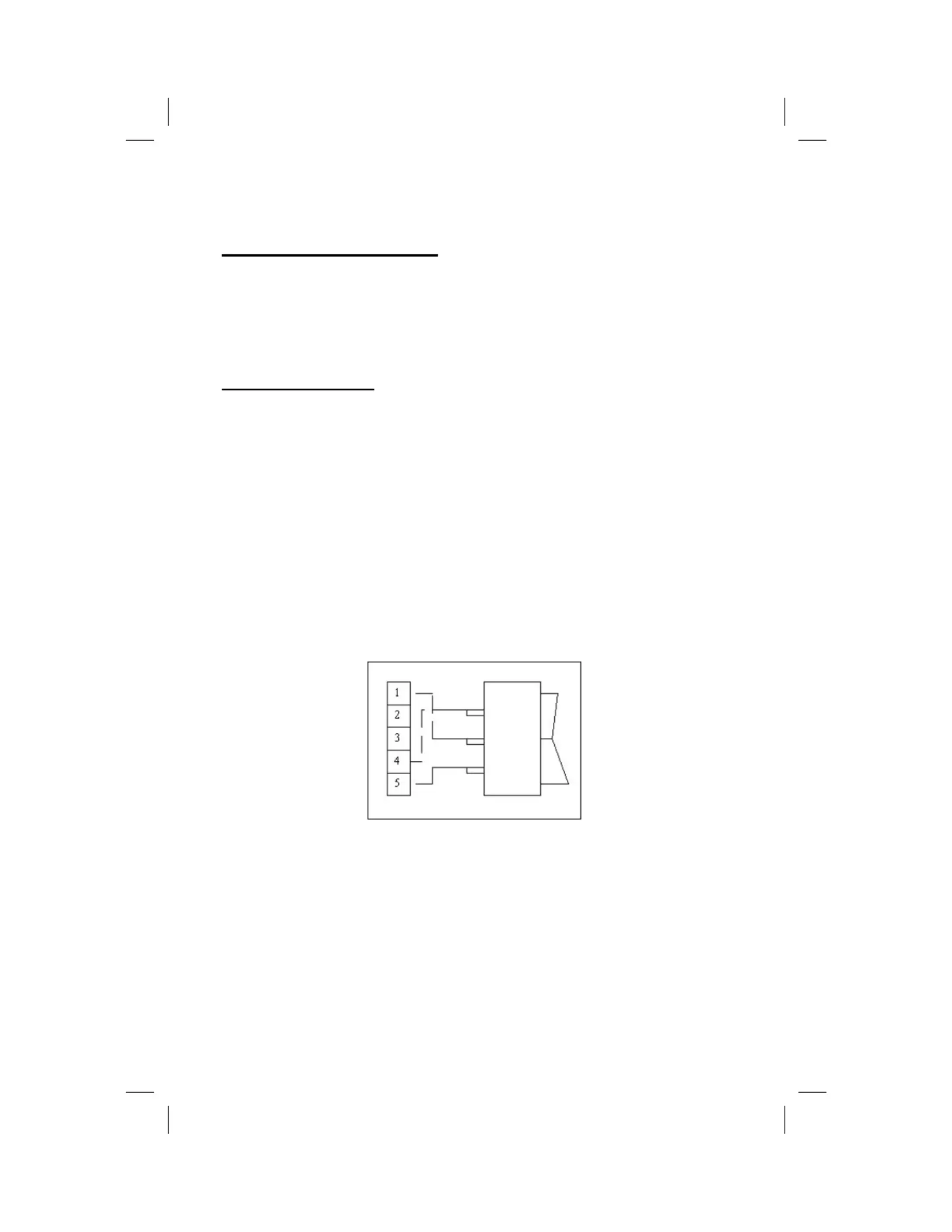

When activated, either locally with the switch on the front of the chas-

sis or by remote contact with a latching contact closure, the switched

outlets turn on in three sets, or “PODS”, of two outlets - with a stan-

dard delay of two seconds between each turn on event. When se-

quenced down the outlets turn off in reverse order from the turn on.

Contact Juice Goose if a sequence delay other than two seconds is re-

quired.

SQ-1500

SEQUENCED POWER CONTROL MODULE

SAFETY PRECAUTIONS

SQ-1500 is designed to operate at 120 volts, 60 hertz. Operation

with any voltage or frequency other than that can damage the equip-

ment and create an unsafe situation.

CAUTION #1: The SQ-1500 must be grounded. If a power extension

cord is required, use a properly insulated and grounded cord. Failure

to ground the device could expose the user to dangerous electric

shock.

CAUTION #2: There are no user serviceable parts inside the SQ-1500.

Do not open the chassis. Refer all service questions or issues to

Juice Goose or a qualified technician.

CAUTION #3: Do not expose the SQ-1500 to moisture or salty air.

Doing so could cause significant damage and create an unsafe condi-

tion.

DISCLAIMER

Juice Goose shall under no circumstances be held responsible for any

losses, damage, or injury resulting directly or indirectly from the use

of a SQ-1500 device in a manner contrary to accepted safe operating

methods or any instructions contained in this document. The user

should determine prior to use whether this product is adequate, suit-

able and safe for the application intended. Since individual applica-

tions can be subject to extreme variation Juice Goose makes no rep-

resentation or guarantee as to the suitability of the SQ-1500 for any

generally described application.

SPECIFICATIONS

CHASSIS……………………………………………………...................................................................…………………...16 Gauge Steel

DIMENSIONS (inches)………………….....................................................................……………….....………...1.72H x 19.0W x 7.0D

WEIGHT (lbs)......………………………………………………………………...................................................................................……..10.0

CIRCUIT BREAKER ………………………………..................................................................……………..Back Panel, 15A Thermal

POWER INPUT ………..………...............................................................……………...7 Foot, 14/3 SJT with NEMA 5/15P Plug

VOLTAGE INPUT.………………………………………………..............................................................…………...120 VAC at 60 Hz

POWER OUTPUTS

........................................................................Six NEMA 5/15R (Sequenced) and One NEMA 5/15R (Unswitched)

RELAY CURRENT RATING……………..................................................................……..............................................……………………...30A

POWER LINE FILTRATION…………….............................................................…………Multi-stage Filter (48dB at 30 MHz)

VOLTAGE SPIKE PROTECTION………………………………………..................................................................…….3 MOV Matrix
