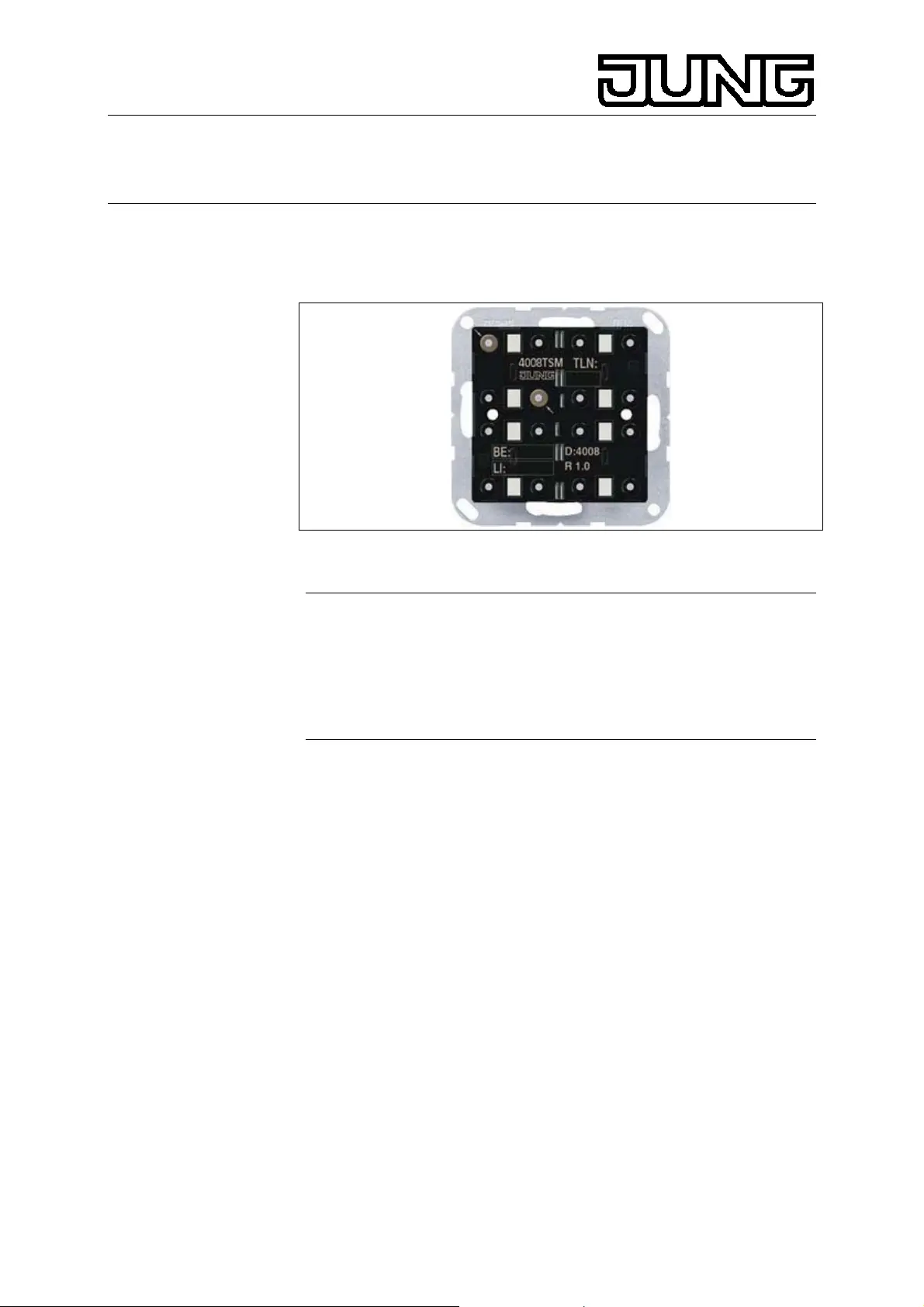

Light Management Push-button module

Ref.-no.: 4008 TSM

Stand: Okt-12 325 270 03

Operating instructions

Push-button module

1. Safety instructions

Electrical devices may only be installed and fitted by electrically

skilled persons.

Non-compliance with the instructions could cause damage to the

device, fire or other hazards.

Connect the push-button module exclusively to the universal relay-

or dimming station (no mains potential!).

These instructions are a component part of the product and must

remain with the end customer.

2. Function

2.1. Intended purpose

Push-button module for connetion to relay/dimming station.

Installation in appliance box according to DIN 49073

2.2. Product characteristics

8 channels of the relay station can be controlled: switching, push-

button control, blind/shutter

16 channels for relay station connected in parallel in conjunction

with the push-button extension module

4 channels of the dimming station can be controlled

8 channels for relay station connected in parallel in conjunction with

the push-button extension module

All channels of the relay station are in switching mode in the state

as delivered.

Central function: all selected channels of the relay station are

controlled centrally.

Can be configured with 1-gang, 2-gang, 3-gang or 4-gang cover kit

Programming without additional aids.
