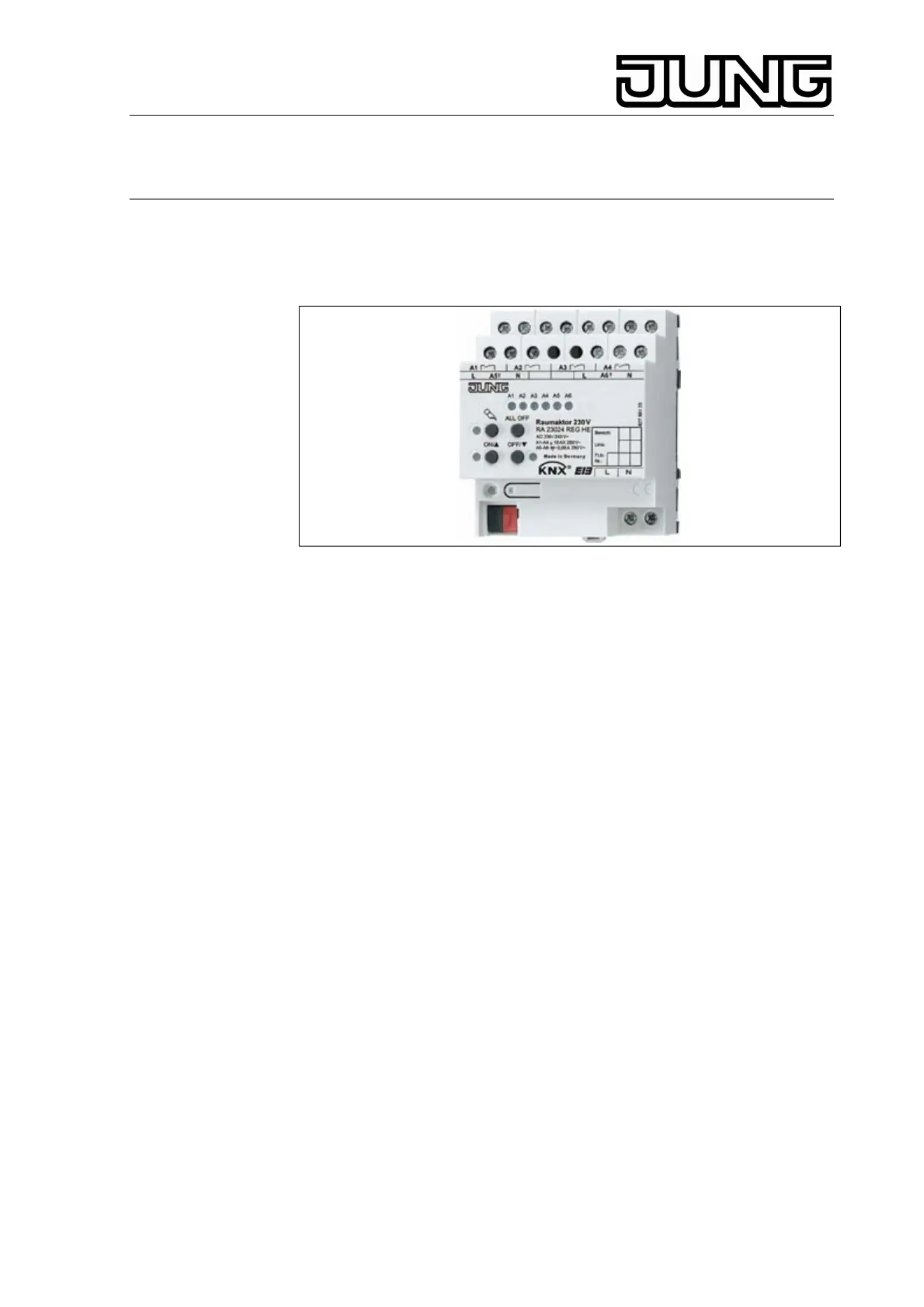

KNX Room actuator 230 V
Ref.-no.: RA 23024 REGHE
Operating instructions
Room actuator 230 V
Table of contents
1 Safety instructions 2
2 Device layout 2
3 Function 2
3.1 System Information 2
3.2 Designated use 3
4 Operation 4
4.1 Controls 4
4.2 Status indication 4
4.3 Modes of operation 4
4.4 Blind/shutter control priorities 5
5 Fitting and electrical connection 7
5.1 Installing the device 7
5.2 Connecting the device 8
5.3 Connecting switched loads 8
5.4 Connecting blind/shutter drives 8
5.5 Connecting 230 V valve drives 9
5.6 Attaching the bus terminal cap 9
6 Start-up 10
6.1 Measuring the blind/shutter and slat running times 10
6.2 Loading the physical address and the application software 10
7 Technical data 10
8 Help in case of trouble 12
9 Accessories 12
10 Guarantee 13
KNX Room actuator 230 V
Ref.-no.: RA 23024 REGHE
1 Safety instructions
Electrical equipment must be installed and fitted by qualified
electricians only. Observe the current accident prevention regulations.
Failure to observe the instructions may cause damage to the device
and result in fire or other hazards.
The device is not suited for safe disconnection of the mains supply.
Do not connect consumers for SELV / PELV voltages..
Connect only electro-thermal valve drives to the heating outputs. Do
not connect inductive or capacitive loads.
Do not operate electro-thermal valve drives with DC voltage. Do not
connect three-phase AC motors.
These operating instructions are part of the product and must be left
with the final customer.
2 Device layout

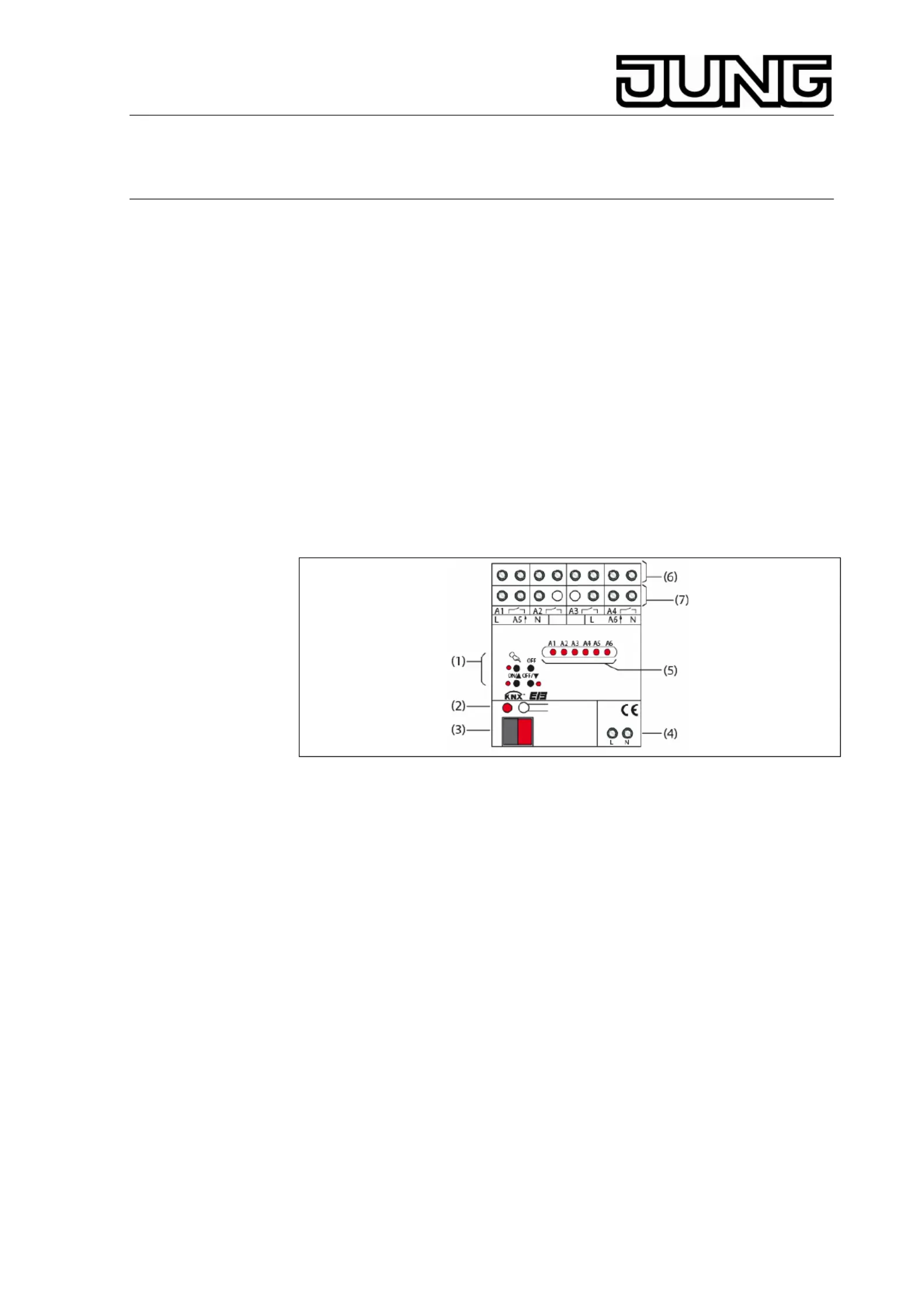

Fig.1: Device layout of room actuator 230 V
(1) keypad for manual control
(2) programming button and LED
(3) KNX connection
(4) mains supply connection
(5) output status LEDs
(6) connecting terminals for consumers / blinds/shutters
(7) connecting terminals for 230 V valve drives
3 Function
3.1 System Information
This device is a product of the KNX system and complies with KNX
directives. Detailed technical knowledge obtained in KNX training courses is
a prerequisite to proper understanding.
The functionality of this device depends on the software.
Detailed information on loadable software and attainable functionality as
well as the software itself can be obtained from the manufacturer‘s product
database.
Planning, installation and commissioning of the unit is effected by means of
KNX-certified software. The full functionality is available with KNX
2
KNX Room actuator 230 V
Ref.-no.: RA 23024 REGHE
3
commissioning software from version ETS3.0d onwards.
The product database, technical descriptions, conversion programs and
other utilities are available in their latest version on our Internet page.
3.2 Designated use
• Switching of electrical consumers AC 230 V with potential-free contacts
• Switching of electrically operated blinds, shutters, awnings and similar
curtains
• Heating outputs: electronic outputs for switching electro-thermal valve
drives
• - Installation on DIN rails in small distribution boards
Product features
• Manual output control, provisional operation
• Feedback in manual control mode and in bus operation
• Scene function
• Disabling of individual outputs by hand or via the bus
Switching function
• Make-contact and break-contact operation
• Logic operation and forcing function
• Feedback function
• Central switching function with group feedback
• Time functions: ON-delay, OFF-delay, staircase lighting timer with early-
warning function
Blind/shutter function
• Suitable for AC motors 230 V
• Direct control of blind/shutter position
• Direct control of slat position
• Checkback of running state, blind/shutter position and slat position
• Forced-control position from primary control
• Safety function: 3 independent wind alarms, rain alarm, frost alarm
• Sun protection function
Control of valve drives
• Switching or PWM operation
• Control of valve drives with working characteristics „normally open“ or
„normally closed“
• Overload and short-circuit protection
• Emergency operation in the event of bus failure for summer and winter
• Protection against jamming valves
• Forced-control position
• Cyclical monitoring of input signals parametrizable
L PWM operation: Electro-thermal valve drives only have an „open“ and a
„closed“ position. In PWM operation, these devices have quasi-
continuous characteristics due to fast switching within the cycle time.
