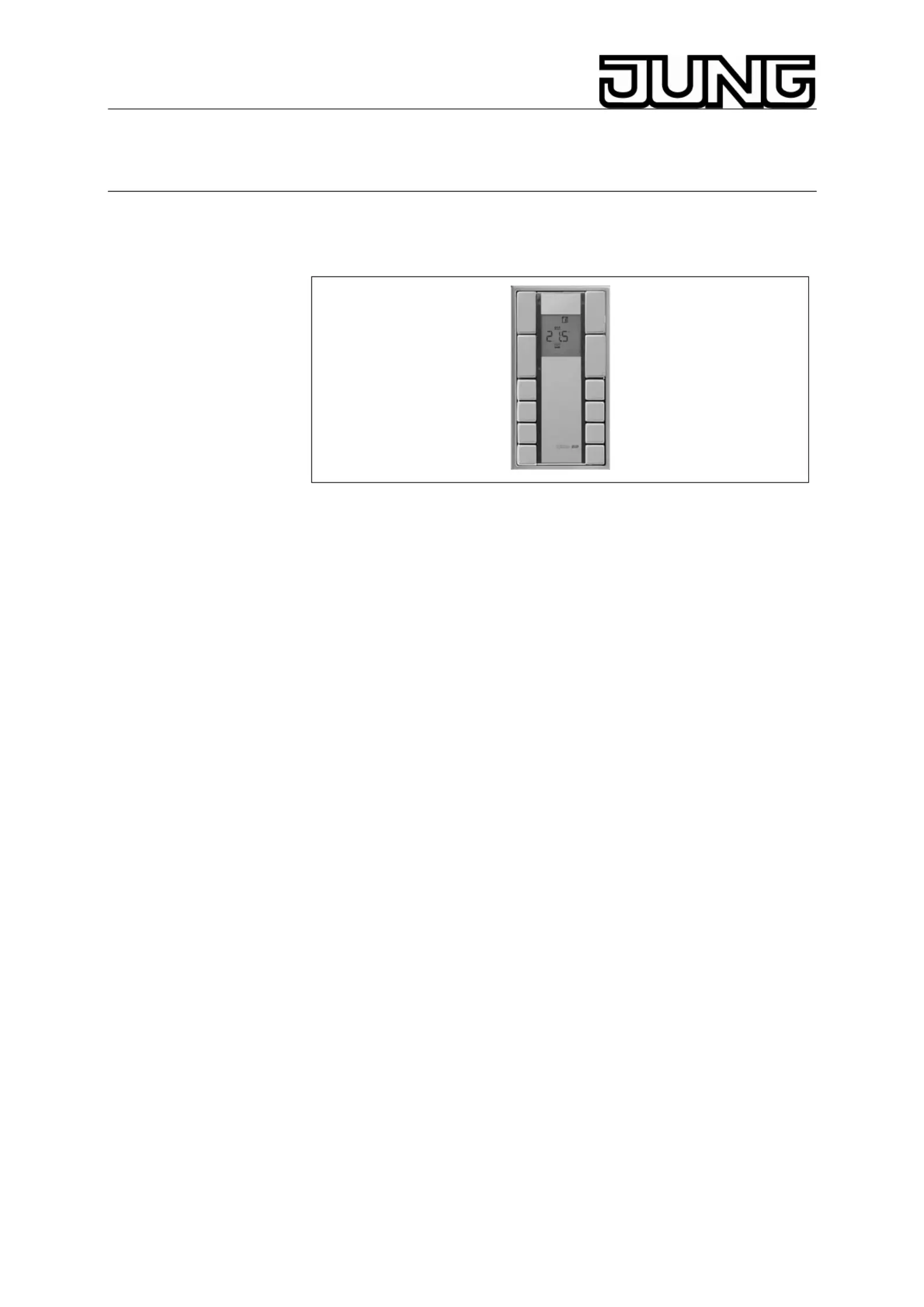

KNXRoom Controller Universal

Ref.-no.: RCD 20xx

Operating Instructions

Room Controller Universal

1. System information

This unit is a product of the KNX/EIB-System and corresponds to the

EIBA Guidelines. Detailed technical knowledge acquired in KNX training

courses is a prerequisite for the understanding of the system. The

functions of the device are software-dependent. Planning, installation and

commissioning of the device are effected with the help of EIBA-certified

software (ETS 2 version 1.2a or 1.3 or ETS3). For the RCD-software and

technical descriptions please refer to the internet at www.jung.de oering

up-to-date information.

2. Funktion

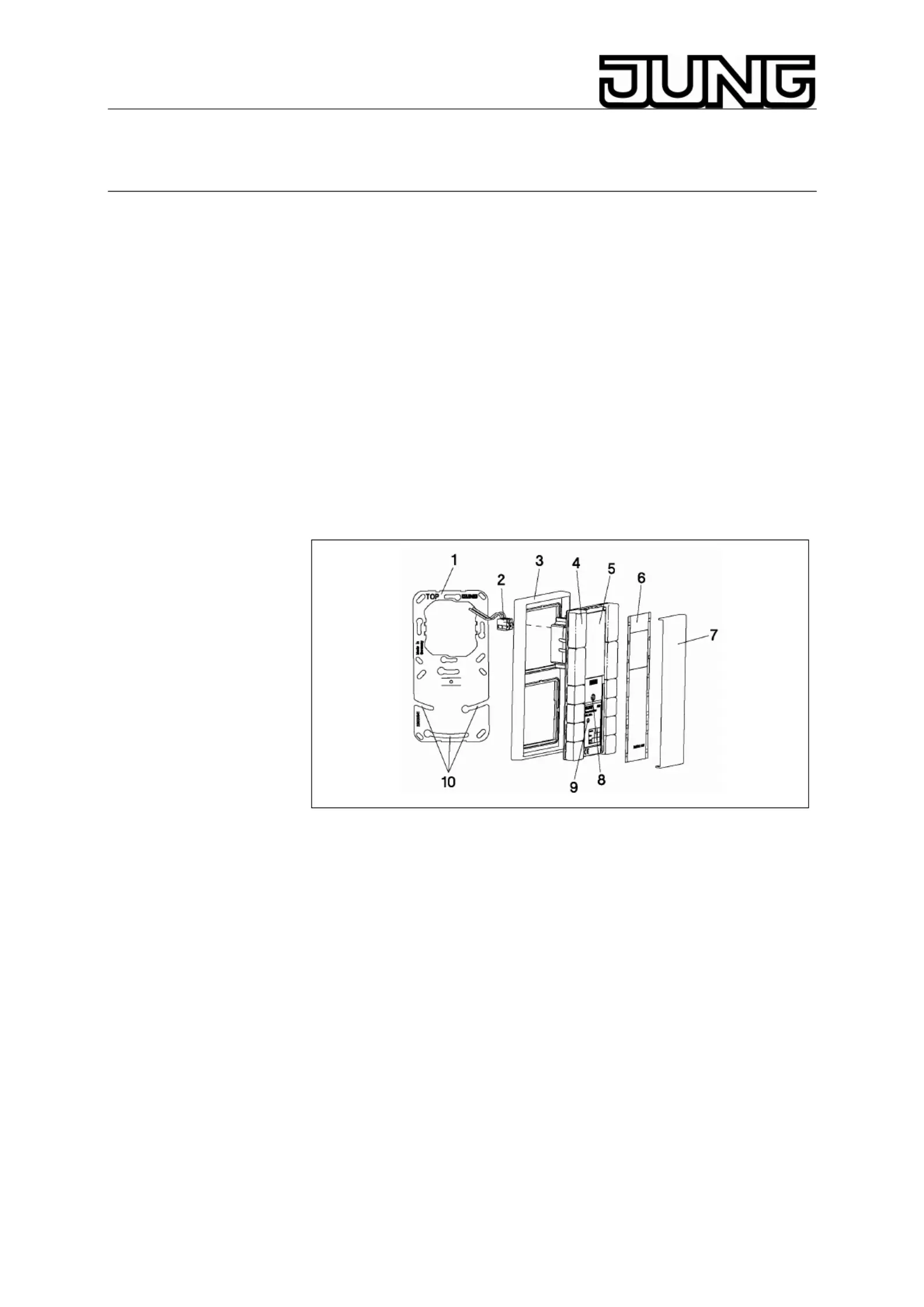

The KNX/EIB room controller RCD 20xx combines the functionality of an

universal push button and a room temperature sensor. Beside it the

device indicates the status and the parameter of the continuous action

regulator and is equipped with a fan coil application. The actual fan coil

status is also indicated on the illuminated LCD.

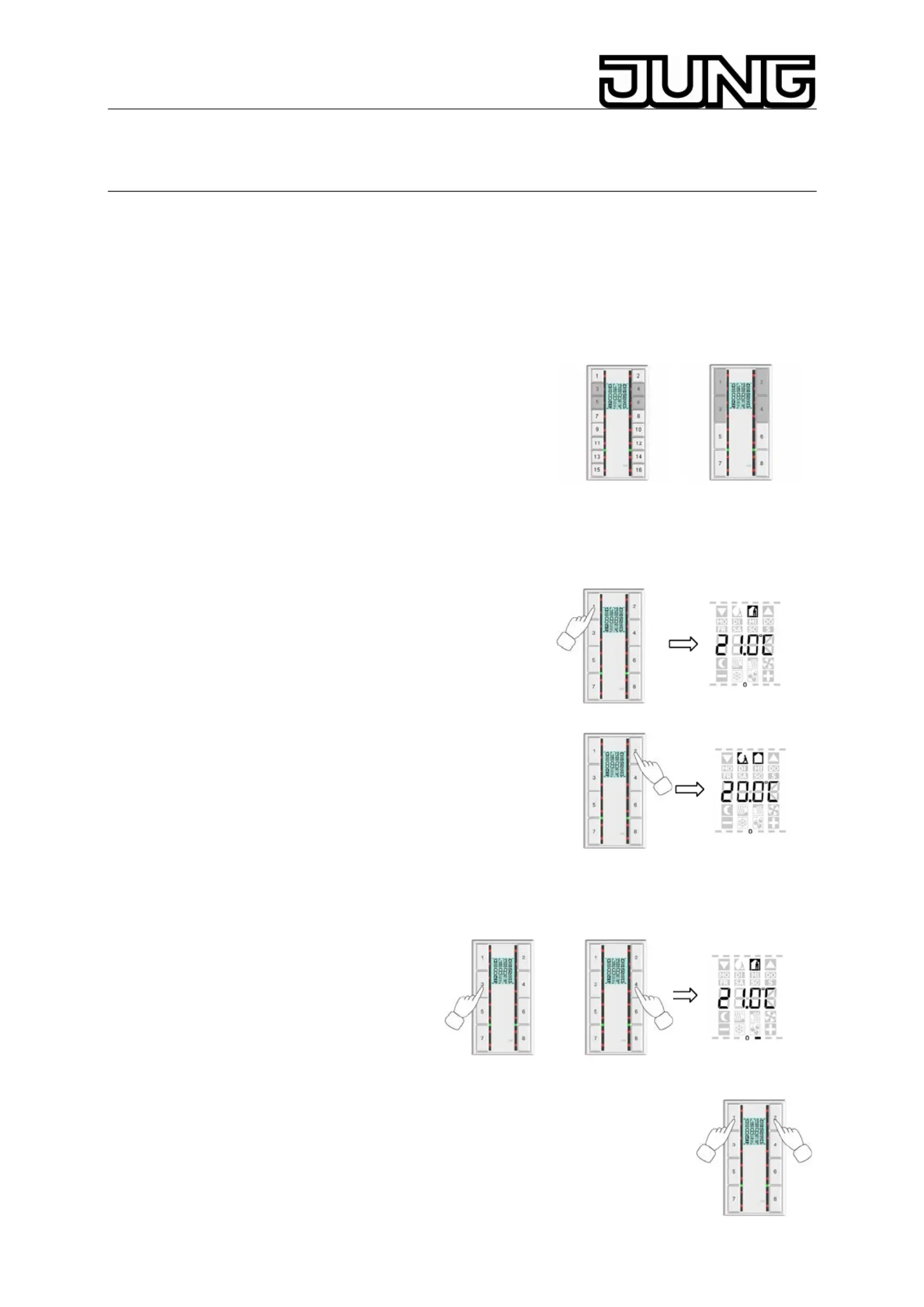

Functional range of the push button part

Each button can be programmed separately:

switching • toggling • dimming (single level or two level dimming) •

shutter/blind control (single level or two level control) • value transmitter •

Brightness value transmitter (0 - 1500 Lux) • Light mood recall with and

without memory • Saving light mood • presence push-button for

thermostat • Set temperature offset adjustment • fan levels • block

function • Status LED for each push button with separate objects

Functional range of the temperature sensor part

The temperature sensor is used to control single room temperature. It is

possible to choose a steady control or a two step control application to

control an KNX/EIB switching or heating actor in connection with an

electrothermic device.

Depending on settings of continuous PI control, switching PI control, two

step control or switching two step control • heating and/or cooling with

manual or automatic switching and collective or parted actor outputs

possible two step heating and cooling operation • ve operation modes

with the respective set value • comfort extension or operation mode

changes through presence push button • freeze/heating protection •

Stand: Apr-08 825 548 03
