Date Issued: 06/02/16IS-42296-CB

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fuse

box before starting and during the installation.

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

1) Find the appropriate threaded holes on mounting strap. As-

semble mounting screws into threaded holes.

2) Attach mounting strap to outlet box. Mounting strap can be

adjusted to suit position of fixture.

3) Make wire connections. Reference chart below for correct

connections and wire accordingly.

4) Push the canopy to ceiling, carefully passing mounting

screws through holes.

5) Secure fixture to ceiling with (2) lockwashers and (2) thread-

ed lockup knobs.

6) Insert recommended bulb.

7) Place glass up into canopy, insert and tighten the (3) glass

retaining screws. (DO NOT over-tighten) Installation is now

complete.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

BlackWhite

*Parallel cord (round & smooth)*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

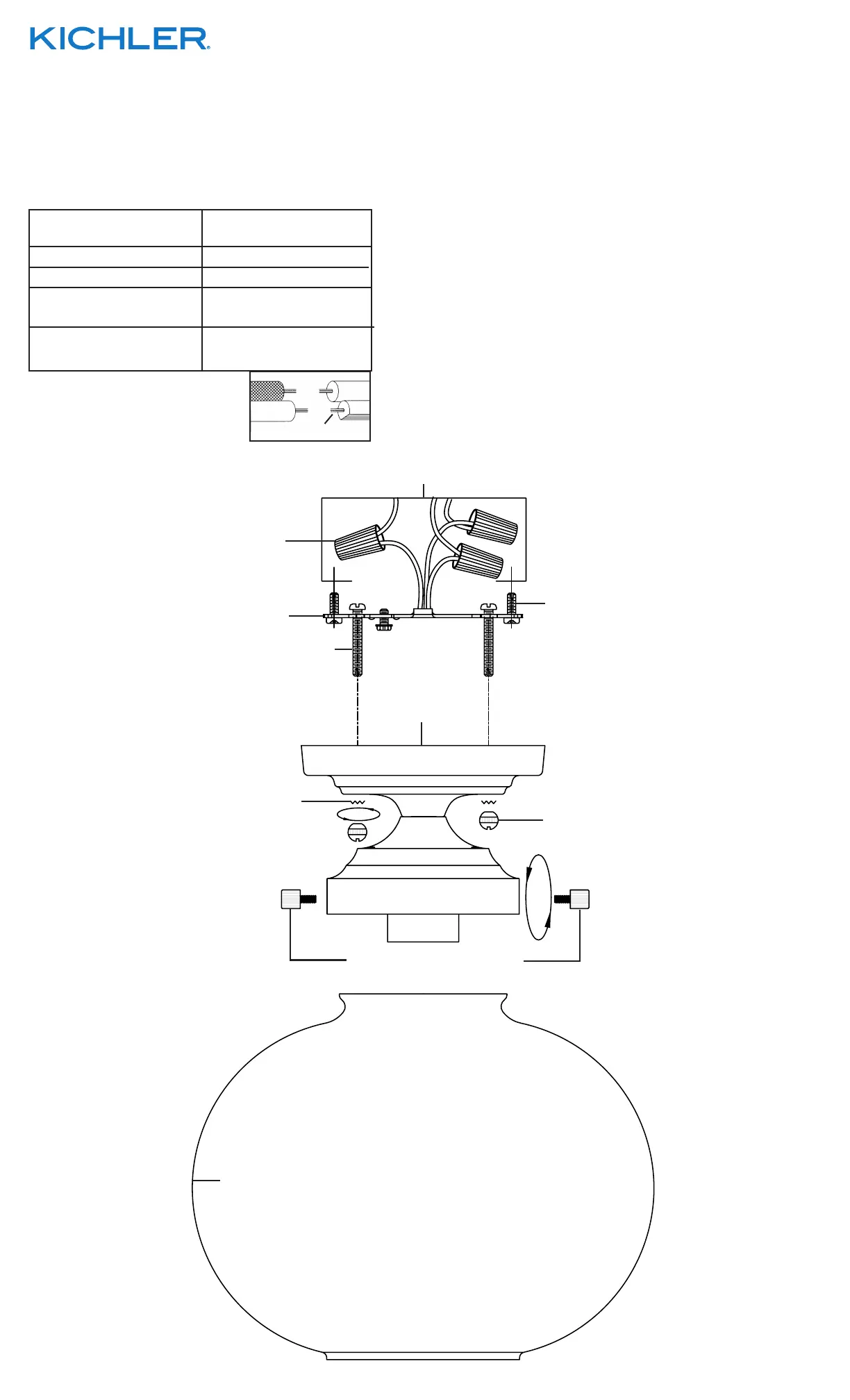

Neutral Wire

OUTLET BOX

WIRE

CONNECTORS

STRAP MOUNTING SCREW(S)

MOUNTING STRAP

MOUNTING SCREW(S)

CANOPY

LOCKWASHER

LOCK-UP KNOB

GLASS LOCK-UP KNOB

GLASS
