Date Issued: 09/11/17 IS-43090-CB
We’re here to help 866-558-5706
Hrs: M-F 9am to 5pm EST
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.

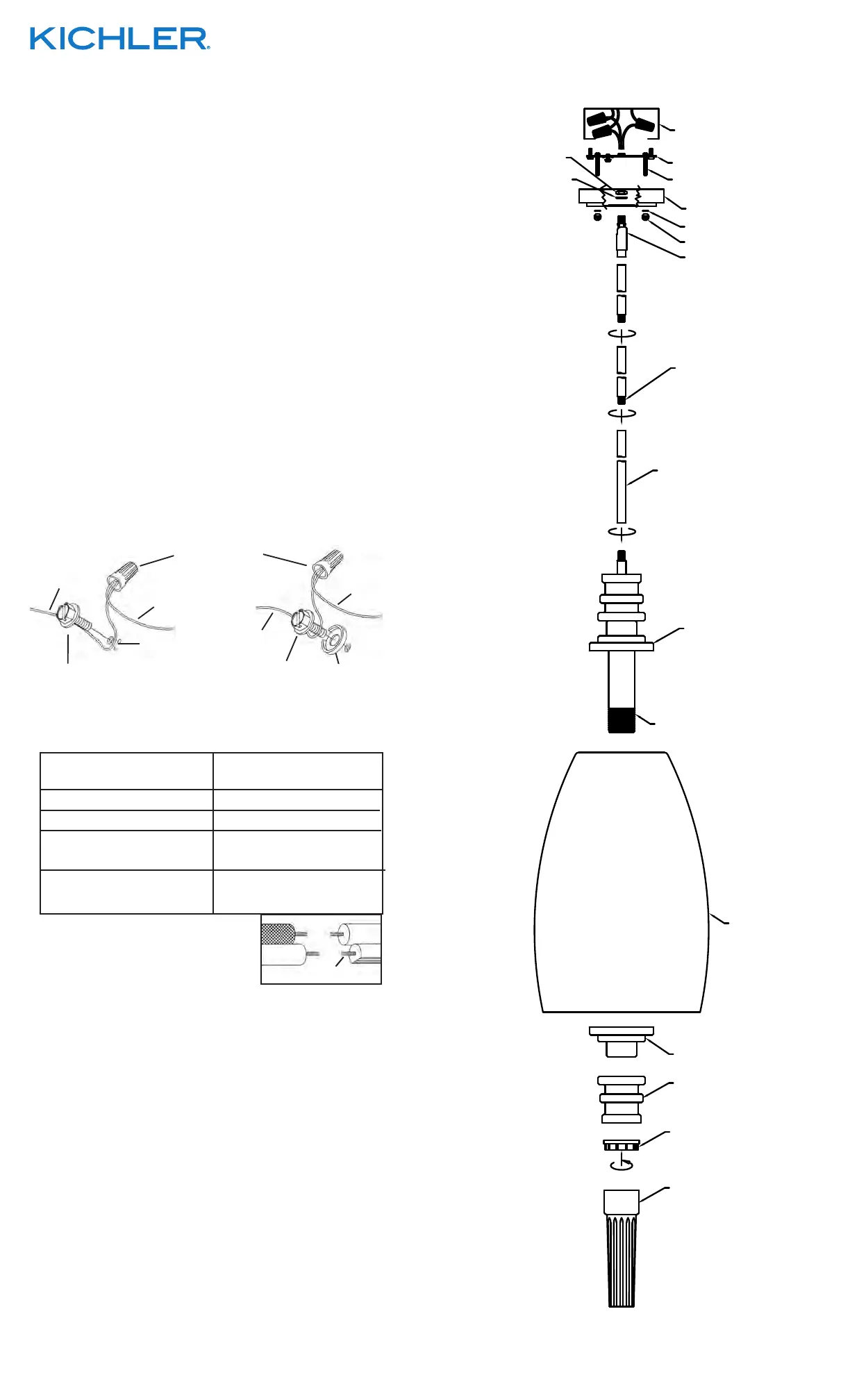

1) Pass xture wire through desired amount of stems [1] and
screw stems together using supplied short threaded tubes [2].
NOTE: Thread locking compound must be applied to all stem
threads as noted with arrow symbol to prevent accidental rota-
tion of xture during cleaning, relamping, etc.
2) Pass xture wire through end of swivel [3] without threaded
pipe.Thread that end of swivel onto end of last stem.
NOTE: Direction of swivel in accordance with ceiling.
3) Pass xture wire through hole in canopy[4]. Pass threaded
pipe on end of swivel up through hole in canopy.
4) Pass xture wire through lockwasher [5] . Thread lockwasher
onto end of threaded pipe protruding from inside canopy.
5) Pass xture wire through hexnut [6]. Thread hexnut onto end
of threaded pipe.
6) Find the appropriate threaded holes on mounting strap [7]. As-
semble mounting screws [8] into threaded holes.
7) Attach mounting strap to outlet box [9]. Mounting strap can be
adjusted to suit position of xture.
8) Grounding instructions: (See Illus. A or B).
A) On xtures where mounting strap is provided with a
hole and two raised dimples. Wrap ground wire from
outlet box around green ground screw, and thread into
hole.
B) On xtures where a cupped washer is provided. Attach
ground wire from outlet box under cupped washer and
green ground screw, and thread into mounting strap.
If xture is provided with ground wire. Connect xture ground
wire to outlet box ground wire with wire connector. (Not pro-
vided.) After following the above steps. Never connect ground
wire to black or white power supply wires.
9) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
10) Push xture to ceiling, carefully passing mounting screws
through holes in canopy. NOTE: Be certain wires do not get
pinched between canopy and ceiling.
11) Use knobs [10] and lockwashers [11] to secure canopy.
Tighten to secure.
12) Carefully raise glass [12] to the xture. Slip the smaller open-
ing over the socket and t the glass against the housing [13].
13) Slip the wide end of the spacer [14] over the socket [15] and
press up against the inside of the glass.
14) Slip the wide end of the lower socket cover [16] over the
socket and press up against the spacer.
15) Thread socket ring [17] onto socket. Tighten socket ring with
socket ring tool [18] to secure glass in place. (DO NOT over
tighten.)
16) Insert recommended bulb. (Not supplied)
GREEN GROUND
SCREW
CUPPED
WASHER
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
WIRE CONNECTOR
OUTLET BOX
GROUND
GREEN GROUND
SCREW
FIXTURE
GROUND
A
B
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
8
7
6
5
4
10
11
3
►
►
1
2
►
17
18
16
14
12
15
13
►
9
