For warranty information please visit: kichler.com/warranty

REV 21-MAR-2022

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTIONS

CAUTION – RISK OF SHOCK:

Disconnect Power at the main circuit breaker panel or main fusebox before

starting and during the installation.

WARNING:

1. This fixture is intended for installation in accordance with the National

Electrical Code (NEC) and all local code specifications. If you are not familiar

with code requirements, installation by a certified electrician is recommended.

Failure to adhere to these codes and instructions may result in serious injury

and/or property damage and will void the warranty.

CLEANING:

• Always be certain that electric current is turned o before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage

the finish.

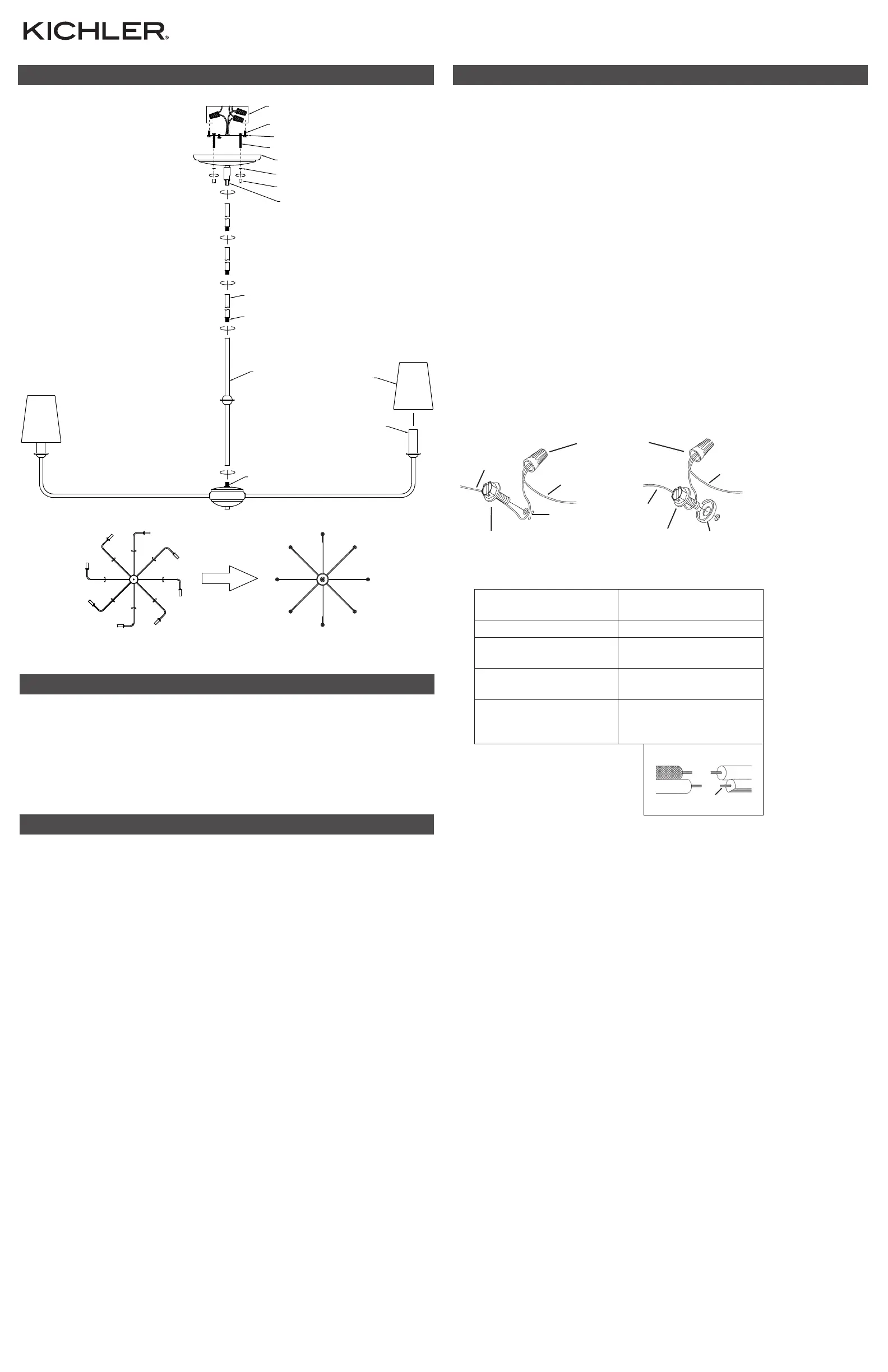

INSTALLATION INSTRUCTIONSFIXTURE DIAGRAM

IS-52517-US

PARTS LIST

[A] Stems (2-12”,

2-6” With Short

Threaded Tubes [B]

installed)

[B] Short Threaded

Tubes

[C] Center Body

[D] Canopy (With

Swivel)

[E] Strap Mounting

Screw (Qty. 2)

[F] Outlet Box (Not

Supplied)

[G] Mounting Strap

[H] Coupling

[I] Mounting Screw

(Qty. 2)

[J] Lock washer (Qty. 2)

[K] Knob (Qty. 2)

[L] Shade

[M] Swivel (Attached to

Canopy)

[N] Socket

1. Rotate fixture arms up 90 degrees into position as shown (This step does not apply if installing

Model #52520).

2. Screw center body[C] onto coupling[H].

3. Pass fixture wires from center body through desired number of short threaded tubes[B] and

stems[A]. Screw stems together using short threaded tubes.

NOTE: Thread locking compound must be applied to all stem threads as noted with symbol (4) to

prevent accidental rotation of fixture during cleaning, re-lamping, etc.

4. Screw first stem into top of center body.

5. Pass fixture wires from last stem through swivel[M] and into canopy[D].

6. Screw lower end of swivel into end of last stem, applying thread locker where noted with symbol

(4). Take note of direction of swivel in accordance with ceiling.

7. Cut fixture wires a MINIMUM of 20 inches from the top edge of canopy.

8. Find the appropriate threaded holes on mounting strap[G] that align with hole distance in

canopy[D]. Screw mounting screws[I] into threaded holes starting from the outlet box side.

9. Attach mounting strap to outlet box[F] using the strap mounting screws[E]. Mounting strap can

be adjusted to suit position of fixture.

10. Grounding instructions: (See Illus. a or b).

a. On fixtures where mounting strap is provided with a hole and two raised dimples, wrap

ground wire from outlet box around green ground screw, and thread into hole.

b. On fixtures where a cupped washer is provided, attach ground wire from outlet box under

cupped washer and green ground screw, and thread into mounting strap.

If fixture is provided with ground wire, connect fixture ground wire to outlet box ground wire with

wire connector after following the above steps. Never connect ground wire to black or white power

supply wires.

11. Make wire connections. Reference chart below for correct connections and wire accordingly.

Connect Black or Red

Supply Wire to:

Connect White Supply

Wire to:

BlackWhite

*Parallel cord (round &

smooth)

*Parallel cord (square &

ridged)

Clear, Brown, Gold or Black

without Tracer

Clear, Brown, Gold or Black

with Tracer

Insulated wire (other

than green) with copper

conductor

Insulated wire (other

than green) with silver

conductor

*Note: When parallel wire (SPT

1 & SPT 2) are used. The neutral

wire is square shaped or ridged

and the other wire will be round

in shape or smooth (See illus.)Neutral Wire

12. Raise canopy to ceiling, carefully passing mounting screws[I] through mounting screw holes in

canopy.

NOTE: Be certain wires do not get pinched between mounting strap and canopy or canopy and

ceiling.

13. While holding canopy in place, use lock washers[J] and then knobs[K] to secure canopy. Tighten

to secure.

14. Carefully lower shade[L] down over socket[N] until seated. Repeat for remaining sockets.

15. Insert recommended bulbs (Not supplied).

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

a

b

I

E

G

F

D

K

J

B

A

►

►

►

►

C

H

L

N

M

►

ROTATE FIXTURE ARMS UP 90°
