Seite 1/19
CONTENTS

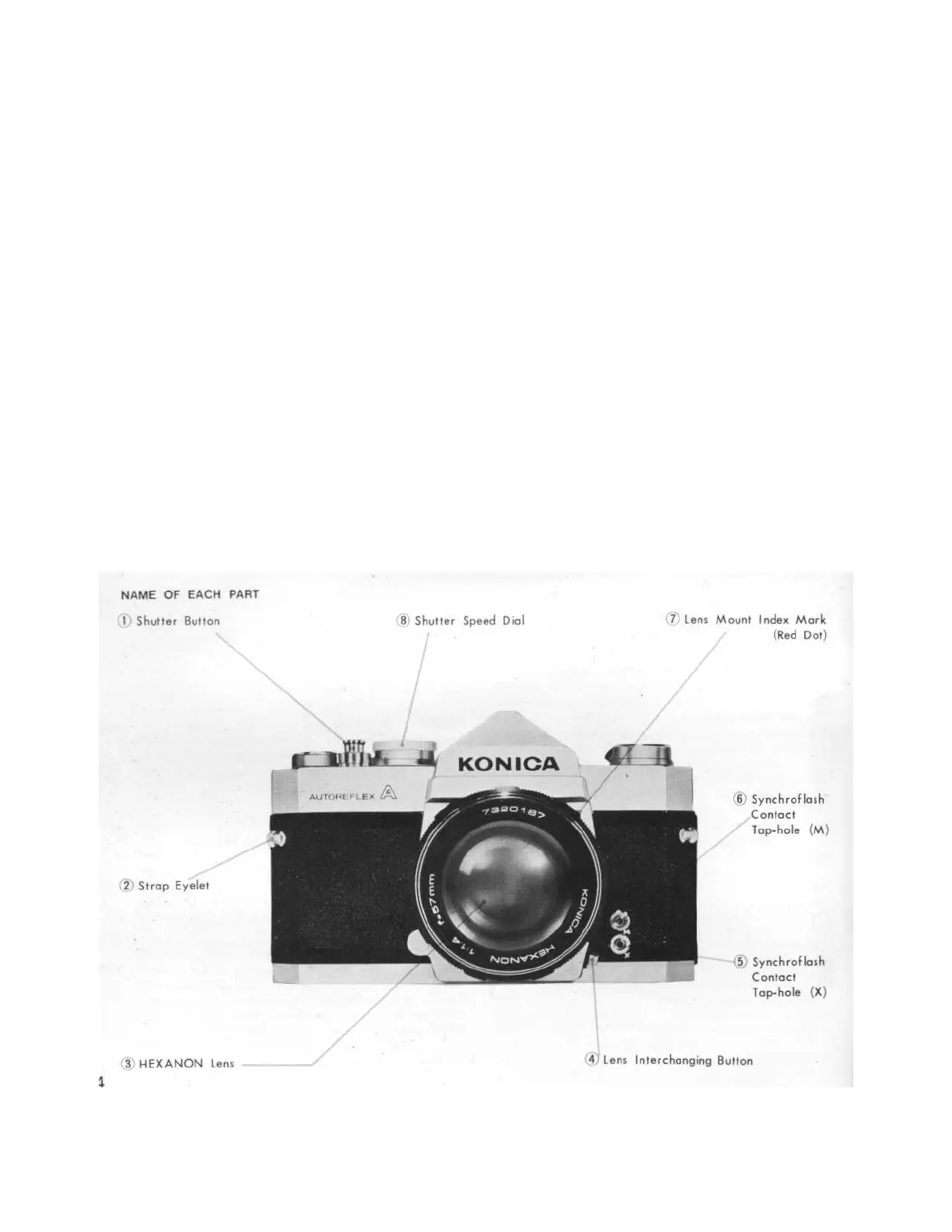

Name of Each Part .....................................................................
4
Major Specifications for KONICA AUTOREFLEX A...
9
Loading of Mercury Battery Cells ...............................................
10
Handling of Mercury Battery Cells ..............................................
11
Film Loading ...............................................................................
1 2
Shutter and Aperture ..................................................................
16
TTL Metering and Fully Automatic Control ................................
18
Name of Meter in Viewfinder .....................................................
21
Watching Meter in Viewfinder .....................................................
22
Electric-Eye Photography ............................................................
24
Meter's Coupling Range ..............................................................
26
Important Points for Light Measurement at
Full Lens Opening .......................................................
28
Training of Camera ......................................................................
30
Focusing .......................................................................................
32
Depth of Field ..............................................................................
34
Infrared Film Compensation Mark ..............................................
36
Depth of Field Table.....................................................................
38
Film Rewind.................................................................................
40
B (Bulb) Exposure ........................................................................
42
Synchroflash Photography ..........................................................
43
Exposure for Synchroflash Pictures ............................................
45
Lens Interchange .........................................................................
46
Stopped-Down Aperture Measurement ......................................
48
Important Points of Stopped-Down Aperture
Measurement .............................................................
50
Hexanon Interchangeable Lenses ..............................................
52
Accessories ..................................................................................
56
MAJOR SPECIFICATIONS FOR KONICA AUTOREFLEX A
Type : 35 mm SLR equipped with focal plane shutter and built-in CdS meter for automatic exposure
determination.
Picture Size :
24
X
36 mm.
Film : 35mm film in cartridge, 20 or 36 exposure.
Standard Lens: HEXANON 57mm f/1.2 (6-group and 7-element), 57mm f/1.4 (5-group and 6-element) or 52 mm f/
1.8 (5-group and 6-element). Minimum taking distance 1.5 ft. (0.45m.)
Mount:
KONICA Mount II (bayonet), 47mm. in
diameter and 40.5 mm. in flange back.
Aperture Device :
Fully automatic aperture (automatic full lens opening).
Shutter : Copal Square S, B, 1 - 1/500 sec. calibrated in equally-graded 1 :2 progression, M and X
synchro, electronic light coupled to 1/125 sec. with X synchro and to all shutter speeds with
M synchro.
Viewfinder: Eye-level viewfinder using pentaprism, lens focused with Micro Dia Prism of dispersion alignment type at viewfinder
center.
Meter visible within field of view.
Mirror:
Mirror edge vertically flips.
Full quick return type.
Exposure
Adjustment : TTL system using super-high sensitive compound CdS meter (light measured mostly at center of
picture image). Automatic aperture lens Electric-eye: Full electric-eye system coupled to film
speed, shutter speed and interchangeable lenses at full opening. Manual aperture: direct
reading of f-number coupled to film speed, shutter speed.
Manual pre-set aperture
lens
-
zero
method after camera is set to film and shutter speeds. Zero-method system in which camera
is coupled to pre-set aperture, film and shutter speeds.
Two 1.3V mercury battery cells
used as electric source.
EE Coupling Range:
EV4.5 to EV17 with ASA 100. Coupled to ASA 25 to 1,600 (DIN 15 to 33).
Film Wind :
Film wound by cocking wind lever in single action.
Shutter charged and mirror
and automatic aperture set simultaneously.
Film Counter :
Automatic Film Counter which returns to "Start" mark simultaneously with opening of back cover
and indicates number of pictures exposed.
Film Rewind:
Film rewind button depressed at first for subsequent film rewind with crank. Button automatically
returns to original position.
Dimensions and Weight:
With f 1.8 lens -- 148 mm (width) 95mm (height) X 89 mm (thickness), 930grams. With f/1.4 lens -
148mm (width) 95mm (height)
X
90mm (thickness), 1,010 grams. With f/1.2lens - - 148mm (
