DA3-18-HQuick Start

Manufacturer

: Kramer Israel

2

Negev St.Airport City 7019900

+972 (0)73

-265-0200

info_il@kramerav.com

EU Importer:

Kramer EMEANetherlands

Stroombaan 16

, The Garden1181VX

Amstelveen

info_EMEA@kramerav.com

P/N:

2900-301739QS

Rev:

1

Scan to go to website

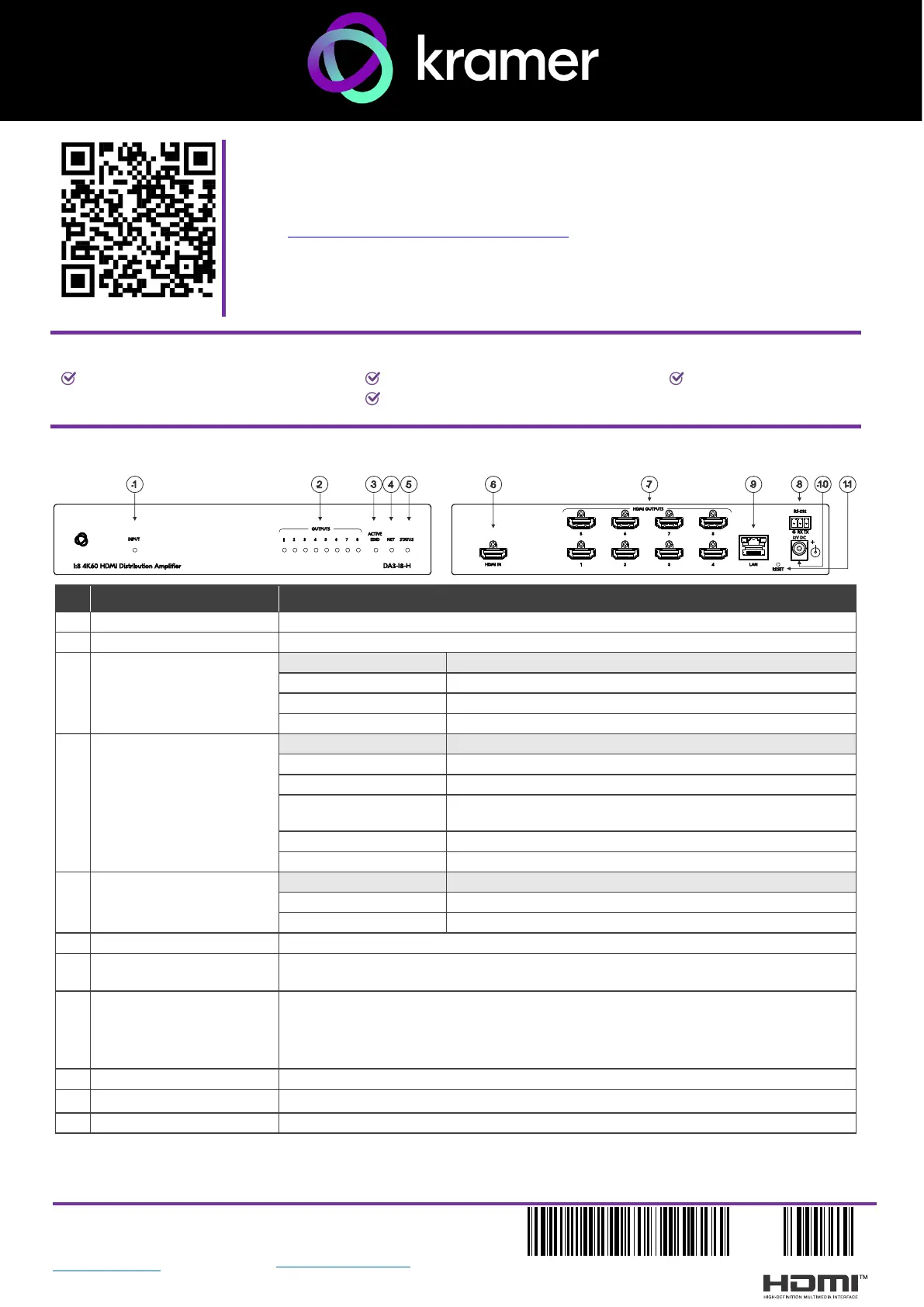

DA3-18-H Quick Start Guide

This guide helps you install and use your DA3-18-Hfor the first time.

Go to http://www.kramerav.com/downloads/DA3-18-Hto download the latest user manual and check if

firmware upgrades are available.

Step 1:Check what’s in the box

DA3-18-H HDMI Distribution Amplifier

2 Power cords and 1 adapter

Set rubber foot

1 Quick start guide

Step 2:Get to know your DA3-18-H

# Feature Function

1

INPUT LED

LED lights blue when an input is connected and active.

2

OUTPUTS LED

LEDs light blue when an output(s) is connected and active.

3

ACTIVE EDID LED

LED status

Indicates

Yellow

DefaultEDIDisactive(the default EDID is 4k@60 4:4:4)

Blue

Output-acquired EDIDisactive

Green

CustomEDIDisactive

4

NET LED

LED status

Indicates

Dark

NoIPaddressacquired.

Green

A validIPaddresshasbeenacquired.

Flashes green for 60s

A means to identify the device in a system, using command

#IDV (Flag Me).

Flashes red/white

IPfallbackaddresshasbeenacquired - 192.168.1.39

Red

Security-blocked IP-access.

5

STATUS LED

LED status

Indicates

Blue

An active input signal is detected.

Green

An active input signal is detected for an unselected input.

6

HDMI IN Connector

Connectsto the HDMI source.

7

HDMI OUTPUTS

Connectors

ConnecttotheHDMIacceptors

8

RS-232

3-pin Terminal Block

Connect to:

•RS-232 controlled device (for example, a PTZ USB camera) for its remote IP

control by a controller (for example, KC-VB1/5), OR

•

PC RS-232 port for controlling the device.

9

LAN RJ-45 Connector

Connect to LAN.

10

12V DC PowerConnector

DCconnector enablingpowersupply tothe unit.

11

RESET

Forrestoringfactorydefaultsettings,presstheRESET buttonandconnectpowertodevice.
