To t t t prevenmoist ure fromenering theouleboxt and

causingshorsealaroundheopandsideperimeer a t, t t t

beweenheixureandhewalluracewiweahert t ft t sf th t

resiancaulking(illusraion1)hespaboomstt tt . T ce at tt

shouldbeleun-caulkedprevenmoisurebuild-up ft to t t .

A a ot k pplysmallamount f weaherresianstt caulingaround

t t t t he sideperimeerbeween t cheapnuandt mouning

plate.

Illustration 1.

Y t tt ot ouhavenowcompleed theinsallaionf your fixure,

enjoy.

Caulking

INSTALLATION SHEET

LED Exterior Wall Sconce

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

1.

2.

3.

4.

EW48208

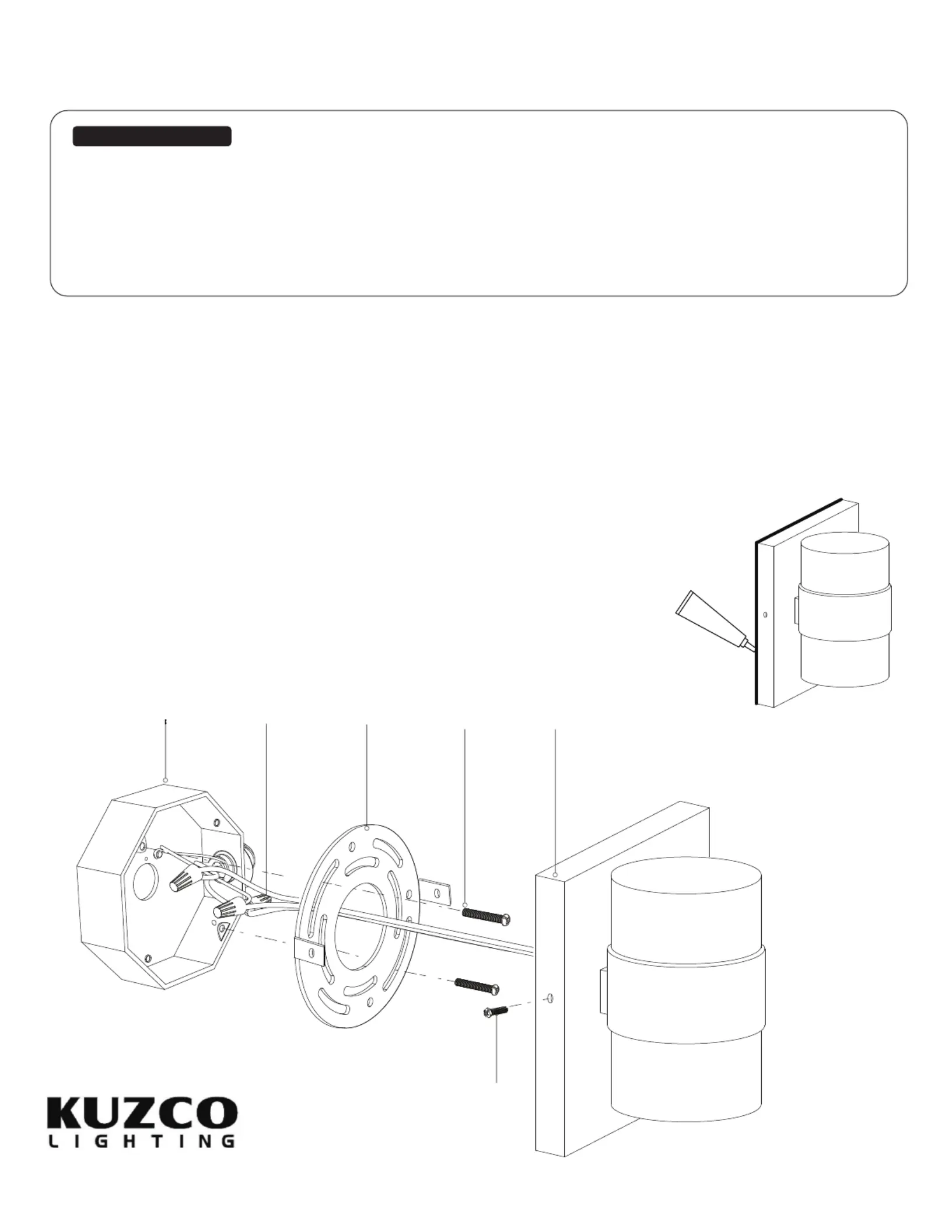

Remove the fixture from its original packaging. Remove the

mounting plate from within the canopy by unthread-(1c)(2a)

ing the two screws . Attach the mounting plate to the (2b)(1c)

electrical junction box using the screws provided in (1a) (1d)

the hardware package.

Attach the canopy to the mounting plate, which is attached

to the electrical junction box. First connect all wires correctly

G ground to ground, N neutral wire (white to white), L live

wire (black to black) with provided marettes from the (1b)

hardware package. Align the holes on the sides of the

canopy (2a) to the ears of the mounting plate (1c). Once

aligned, Push the canopy to the mounting plate and (2a)(1c)

use the two screws to secure the canopy.(2b)
