INSTALLATION SHEET

VL47221

LED Vanity Light

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

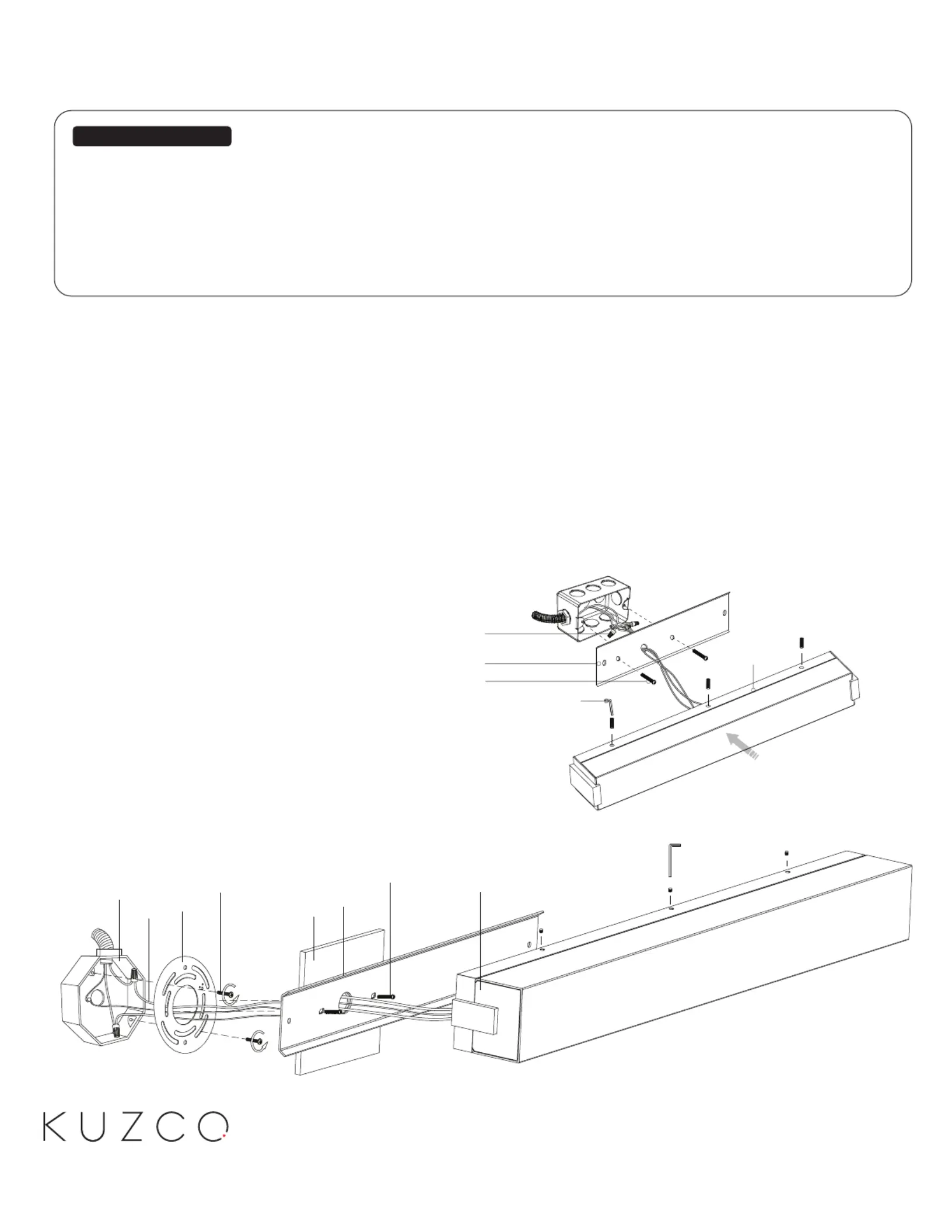

Remove the fixture from its original packaging. Remove

the crossbar from within the fixture by (1c)(3a)

unthreading the set screws and two screws(3b) (2c).

Attach the crossbar to the electrical junction box (1c)

(1a)(1d), using screws provided in the hardware

package.

Make sure to thread the wires through the hole in the

backplates (2a and 2b) and connect all wires correctly G

ground to ground, N neutral wire (white to white), L live

wire (black to black) with provided marettes from the (1b)

hardware package. Attach the backplates to (2a and 2b)

the crossbar with screws (2c). Connect the fixture to the

backplate (2b) and adjust as neccessary. Use the set

screws and allen key provided to lock the fixture in (3b)

place

You have now completed the installation of your

fixture, enjoy.

1.

2.

3.

(Octagon junction box install)

Remove the fixture from its original packaging. Remove the

backplate (1c) from within the fixture (2b) by unthreading

the set screws (2a). Connect all wires correctly G ground to

ground, N neutral wire (white to white), L live wire (black to

black) with provided marettes from the hardware (1b)

package. Attach the backplate to the single gang box (1c)

(1a)(1d), using screws provided in the hardware package.

Attach the fixture to the backplate and adjust as (2b)(1c)

neccessary. Use the set screws and allen key (2a)

provided to lock the fixture in place

1.

2.

3.

(Single gang box install)

You have now completed the installation of your

fixture, enjoy.
