Seite 1/5

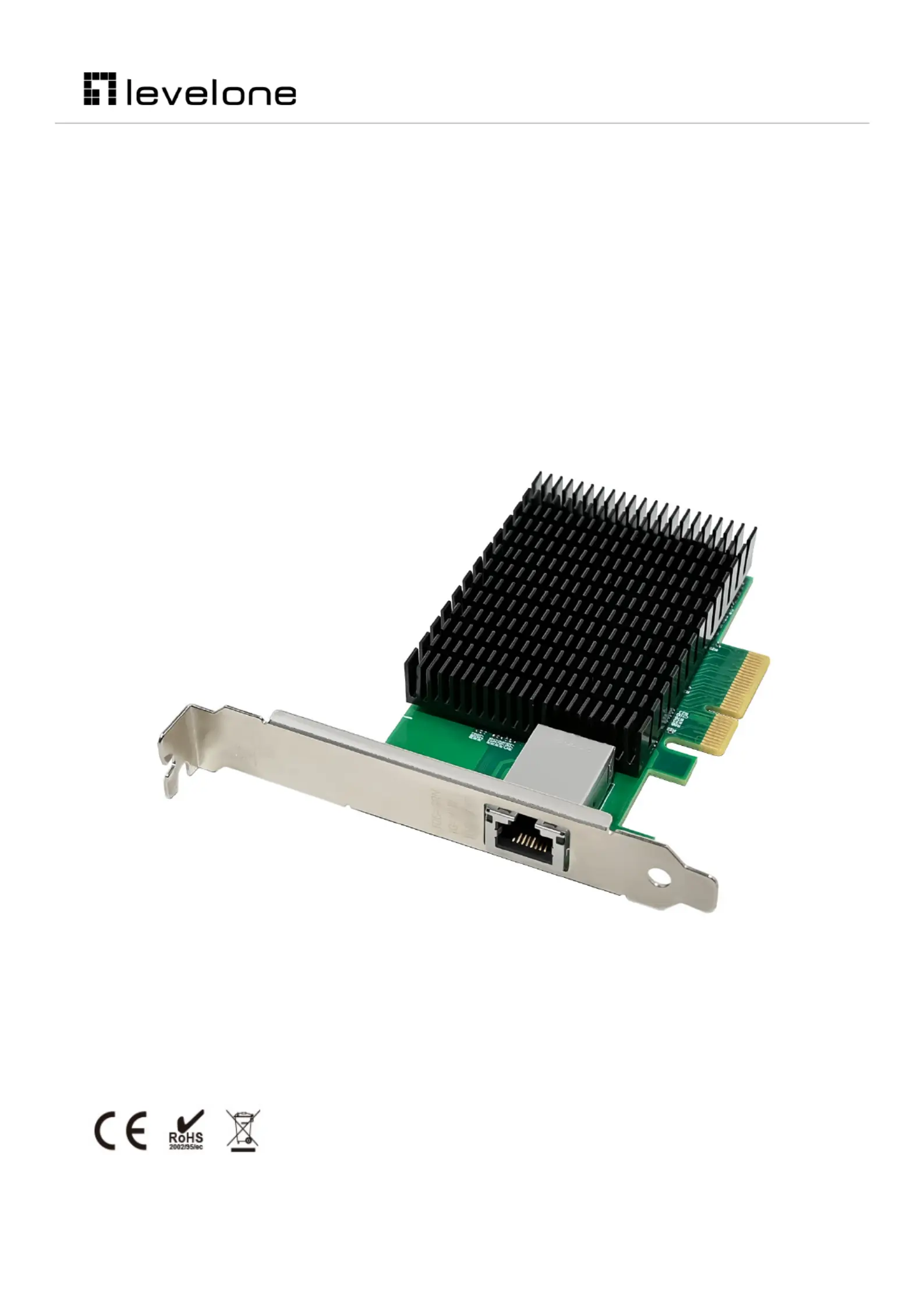

User Guide
EN ver2.01
GNC- 0210
10-Gigabit PCIe x4 Network Card, 1 x RJ45
User Guide
- - 2
Overview
The PCI Express AQ107 10GbE Ethernet card is a -high performance, Multi- gigabit
Ethernet card that supports the 10GBASE- - - -TT/5GBASE T/2.5GBASE T/1000BASE /
100BASE- T, with a PCI Express Gen3x4 or Gen2x4, the AQtion Ethernet controller easily
handles the 10GbE Line- rate performance. The AQC107 incorporates Aquantia’s
AQrate® PHY technology which delivers 10GbE network connectivity speed through Cat
6a and delivers 5 GbE and 2.5 GbE network connectivity speed through 100 meters of
Cat 5e or better cabling enabling higher data rates with zero change to legacy cabling.
Specification
• Compliant with PCI Express Revision 3.0 and downstream with PCI Express
Reivison2.0
• Supports line rate of 8.0GT/s and 5.0GT/s per lane
• Supports Gen 3x4 or Gen 2x4
• Supports communication and management function
• Integrated Aquantia AQrate PHY featuring NBASE- T technology
• Supports PHY specifications with 10GBASE- - - -T/5GBASE T/2.5GBASE T/1000BASE T
/100BASE- T.
• On-chip high resolution cable analyzer for advanced cable diagnostics
• Energy Efficient Ethernet (EEE) Support
• Supports IEEE1588v2 Precision Time Protocol
• Support large send offload, Receive Side Scaling (RSS), Direct Cache Access(DCA) and
Header
• checksum for increased network performance and lower host CPU utilization
• Wake- -On LAN(WoL) power management
• Supports IPv4, IPv6 and IPv6/UDP checksum offload
• Supports Jumbo frame (up to 16kbytes)
• Quality of Service (QoS)
• Supports up to eight traffic classes and Data Center Bridging (DCB)
• Support Operation Systems:
Winddows○
RWin7/Win8/Win8.1/Win10/ Server2012 / Server2016/ Linux
- - 3
Package content
! Quick Installation Guide
! User Guide
! Resource CD (Driver)
! Low Profile Bracket
System Requirements
l FreeBSD, Linux, VMWare ESXi, Win7/ Win- -server2012/ Win server2008/
Win8/Win8.1/Win-server2016/win10
l One available PCI Express x4 slot
Cabling Requirements:
Intel 10 Gigabit adapters
l For 10GBASE T on Category 6,- Category6a, or Category 7 wiring, twisted 4 pair -
copper:
l Category 6 wiring supports 55 meters max.
l Category 6a wiring supports 100 meters max.
l Category 7 wiring supports up to 100 meters.
Intel 1 Gigabit adapters
l For 1000BASE- - T or 100BASE TX.use Category 5 or Category 5e
wiring, twisted 4- pair copper:
l Make sure you use Category 5 cabling that complies with the TIA-568 wiring
specification for more information on this specification.
l Length is 100 meters max.
l Category 3 wiring supports only 10Mbps.
CAUTION: If using less than 4-pair cabling, you must manually configure the
speed and duplex setting of the adapter and the link partner. In addition, with
2 3- and pair cabling the adapter can only achieve speeds of up to 100Mbps.
l For 100BASE TX.- use Category 5 wiring.
l For -T. 10BASE use Category 3 or 5 wiring.
